Galant ES L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>

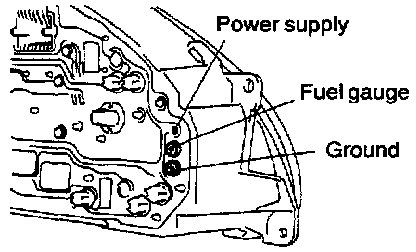

Fuel Gauge
Fuel Gauge
Power supply and ground
262 Ohm
Power supply and
fuel gauge
99 Ohm
Fuel gauge
and ground
163 Ohm
