Mitsubishi
>>
1998
>>
Galant ES L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Ignition Coil
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>

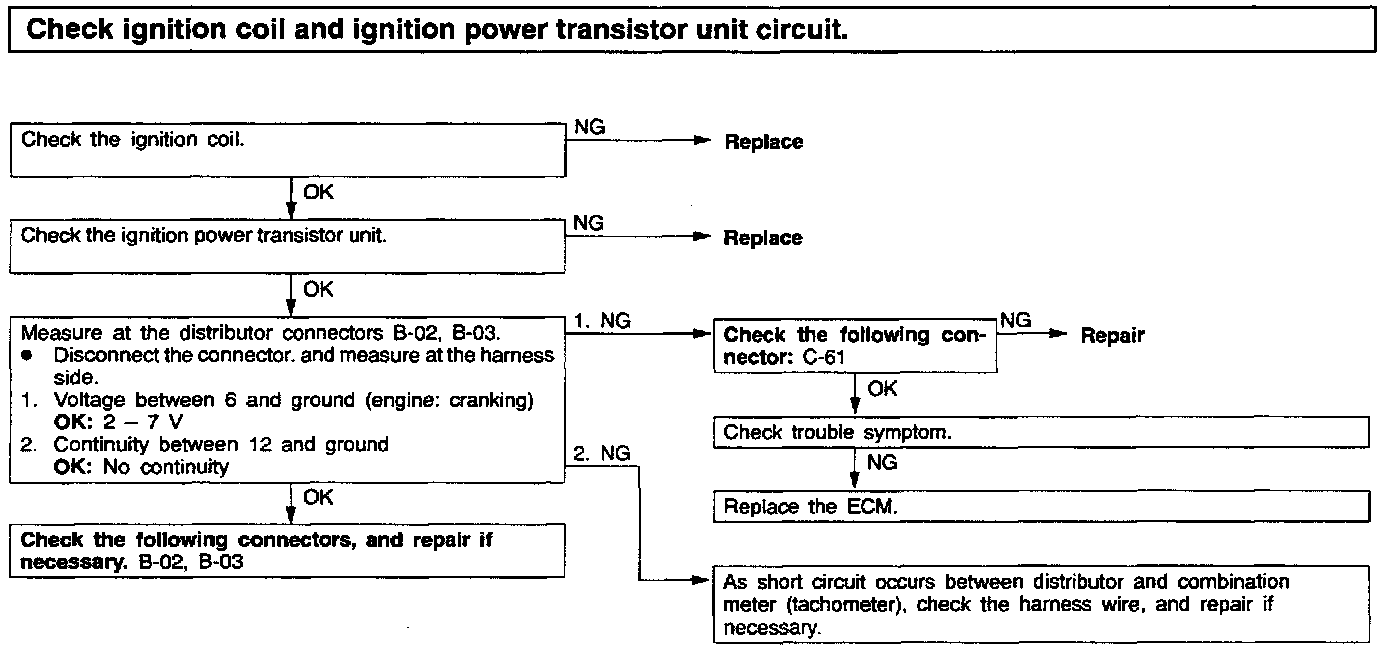

50 Check Ignition Coil and Power Transistor Unit Circuit
50 Check Ignition Coil and Power Transistor Unit Circuit
INSPECTION PROCEDURE 50
