Data List Reference Table & Normal Scan Data Values

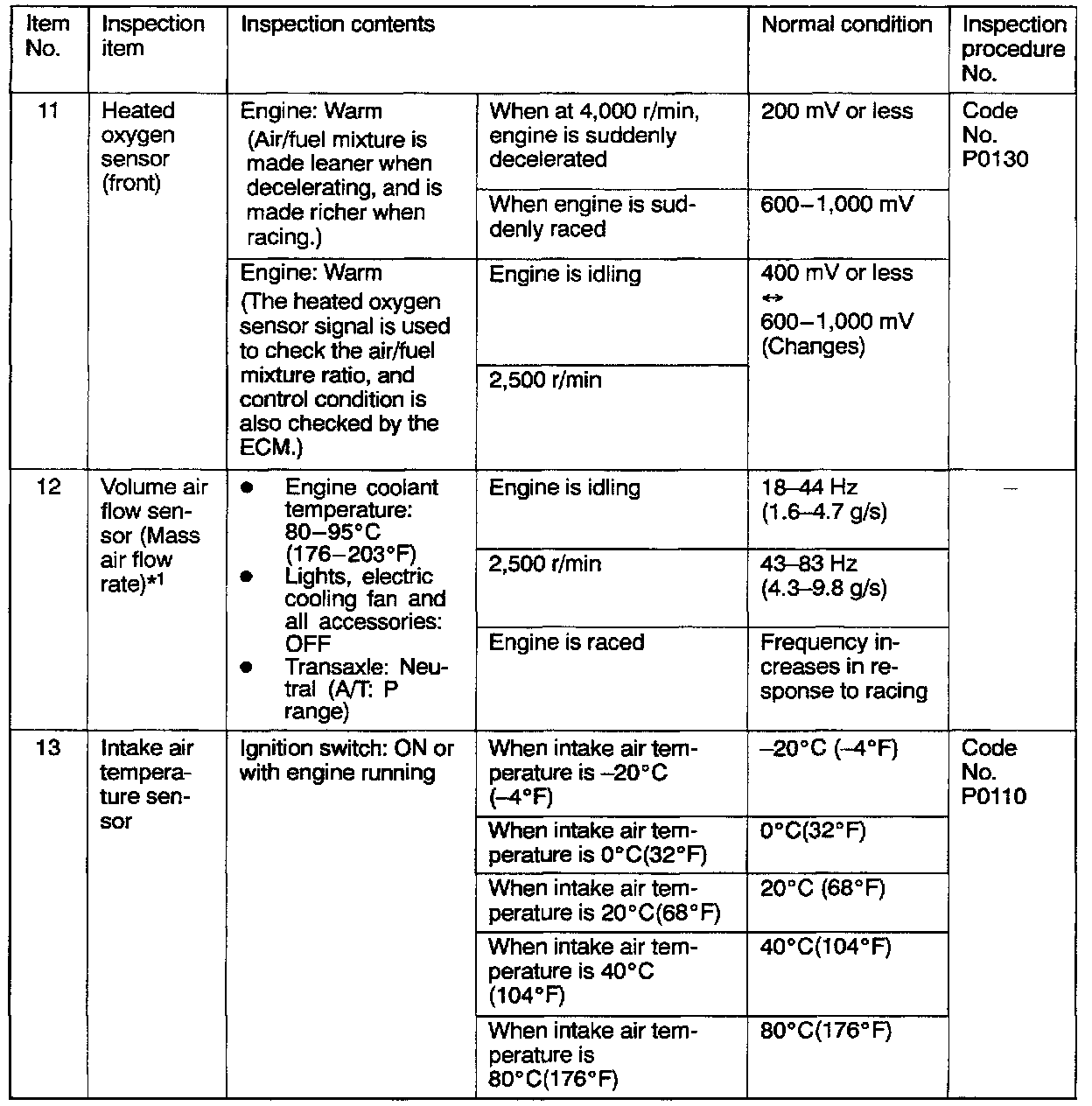

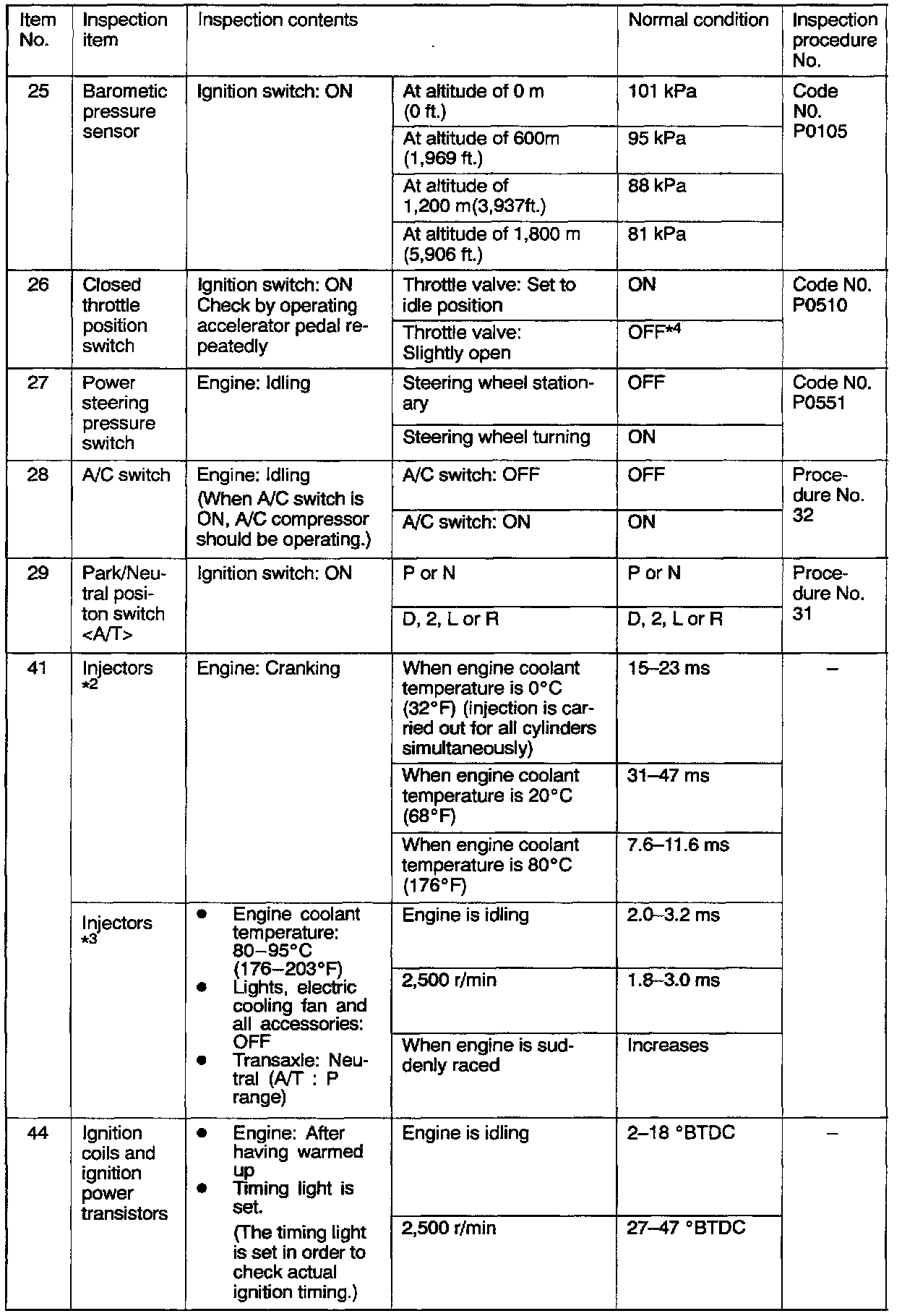

DATA LIST REFERENCE TABLE

CAUTION: When shifting the select lever to D range, the brakes should be applied so that the vehicle does not move forward. Driving tests always need a second person.

NOTE:
*1: In a new vehicle driven approximately 500 km (300 mile) or less, the volume air flow sensor output frequency is sometimes 10% higher than the standard frequency.
*2: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 V.
*3: In a new vehicle [driven approximately 500 km (300 mile) or less], the injector drive time is sometimes 10% longer than the standard time.
*4: The closed throttle position switch normally turns off when the voltage of the throttle position sensor is 50 - 100 mV higher than the voltage at the idle position. If the closed throttle position switch turns back on alter the throttle position sensor voltage has risen by 100 mV and the throttle valve has opened, the closed throttle position switch and the throttle position sensor need to be adjusted.
*5: In a new vehicle [driven approximately 500 km (300 mile) or less], the servo valve position is sometimes 20 steps greater than the standard value.
