Oxygen Sensor: Locations

Sensor Locations Overall View:

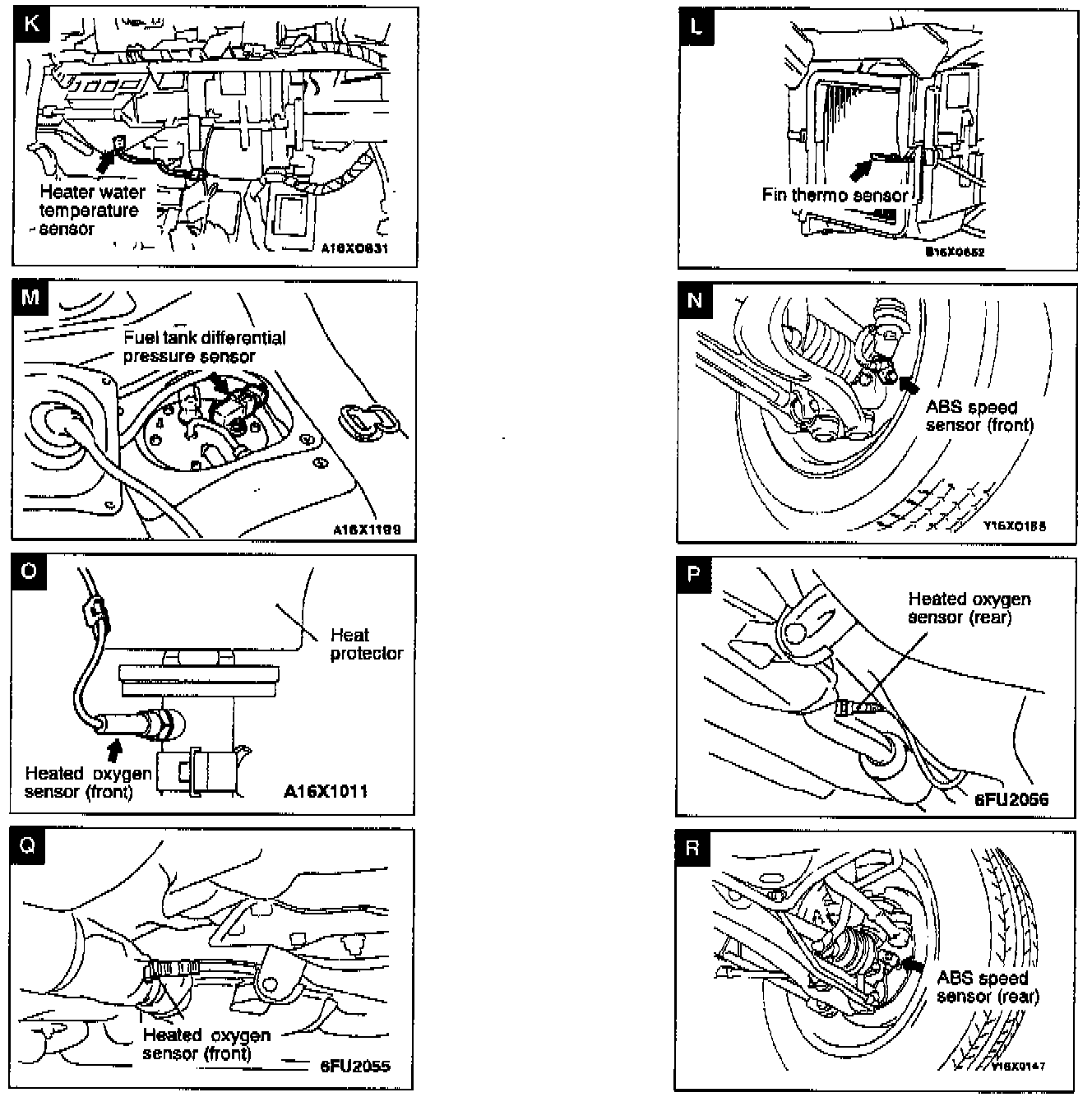

Relay Locations Views K - R:






SENSOR VIEW
Heated Oxygen Sensor (front) Q

Heated Oxygen Sensor (front) O

Heated Oxygen Sensor (rear) P
