Power Steering Line/Hose: Service and Repair

REMOVAL
1. Power steering fluid draining.
2. Front bumper removal.

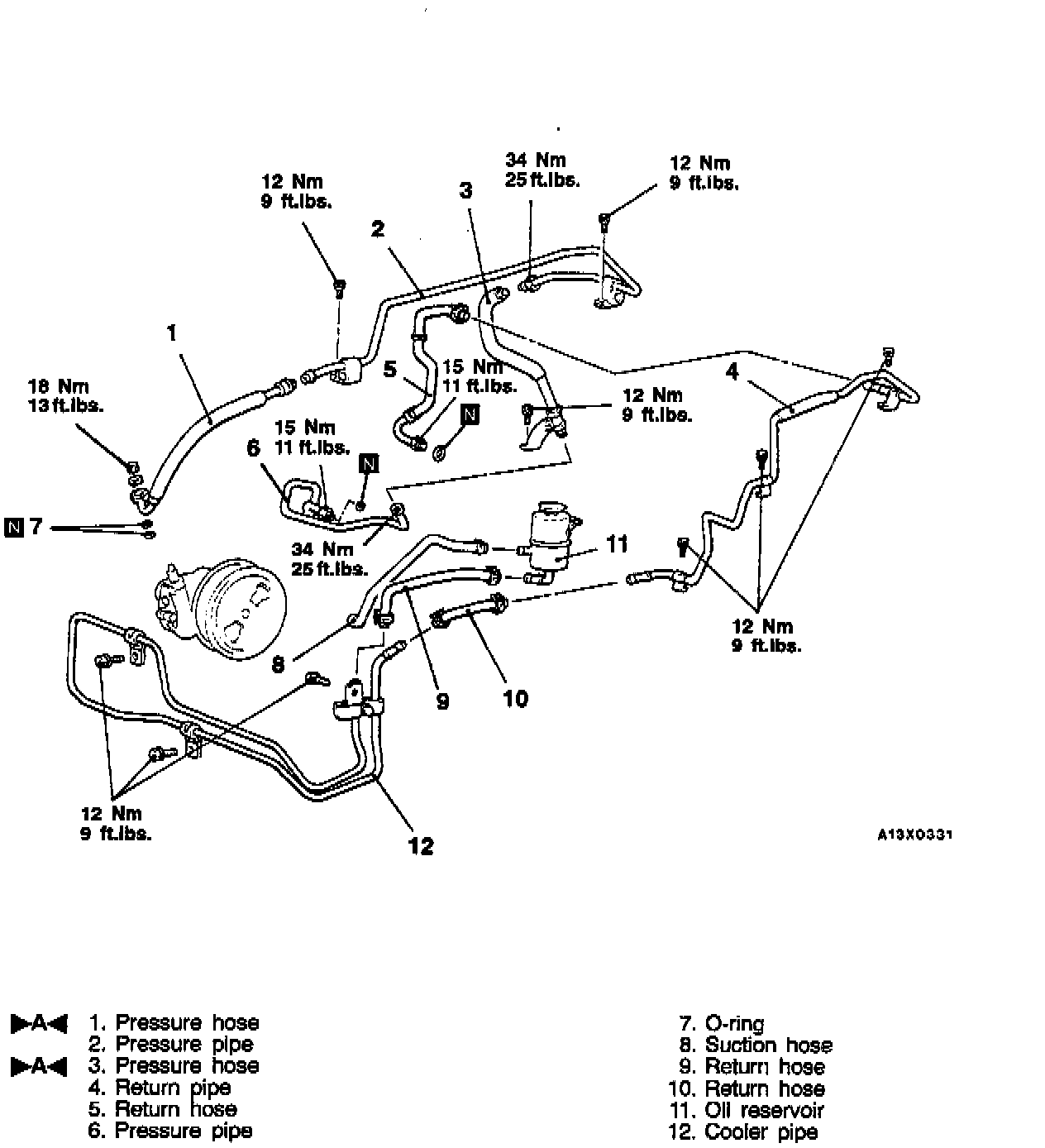

3. Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Installation Service Points
]A[ Pressure Hose Installation (1 & 3).

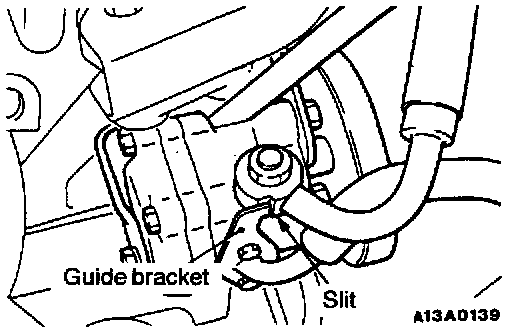

1. Connect the pressure hose so that its slit part contacts the oil pump's guide bracket.

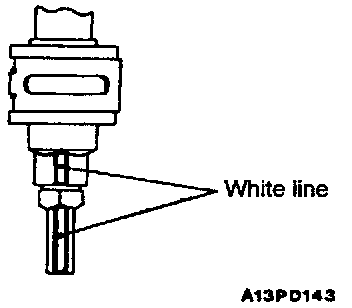

2. When the pressure hose is installed, align the white line on the pressure hose with the white line on the pressure tube so that together they form a straight line.

Post-installation Operation
1. Front Bumper Installation.
2. Power Steering Fluid Supplying.
3. Power Steering Fluid Line Bleeding.
