With Electronic Climate Control

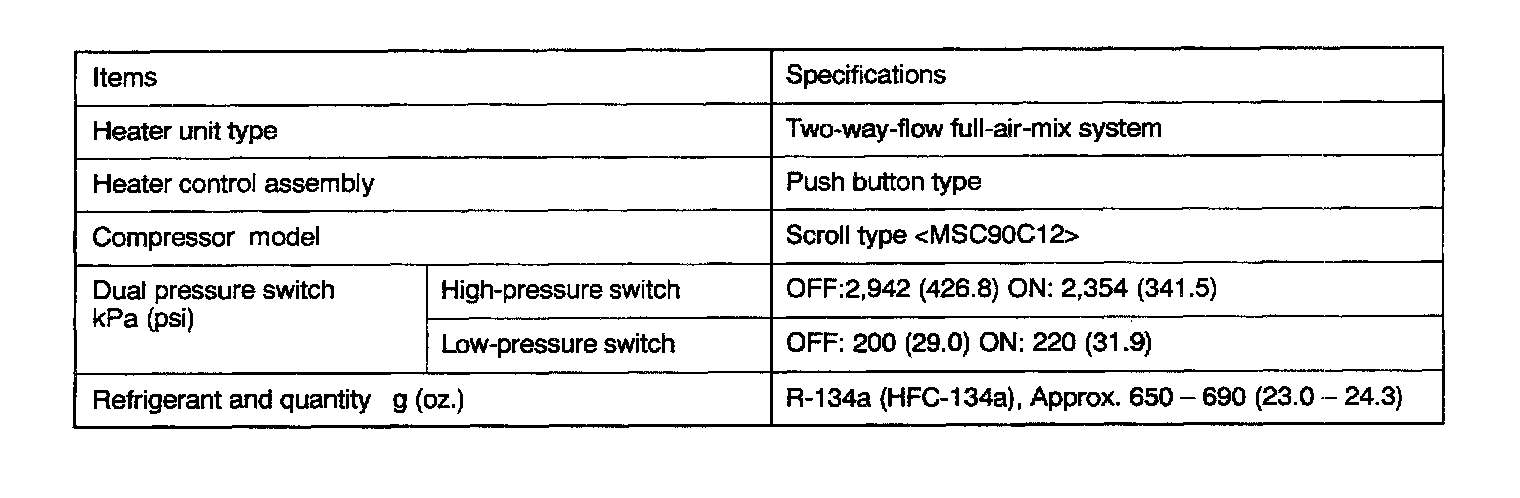

GENERAL INFORMATION




The heater system uses a two-way-flow full-air-mix system that features high performance and low operating noise, and includes an independent face-directed air flow function and a cool air bypass function.

The A/C system is basically the same as the manual air conditioning in which a new refrigerant system has been adopted. However, an A/C control panel with a reduced number of buttons and a more compact arrangement of necessary functions owing to more functions being assigned to each button has been adopted.
