Condenser HVAC: Service and Repair

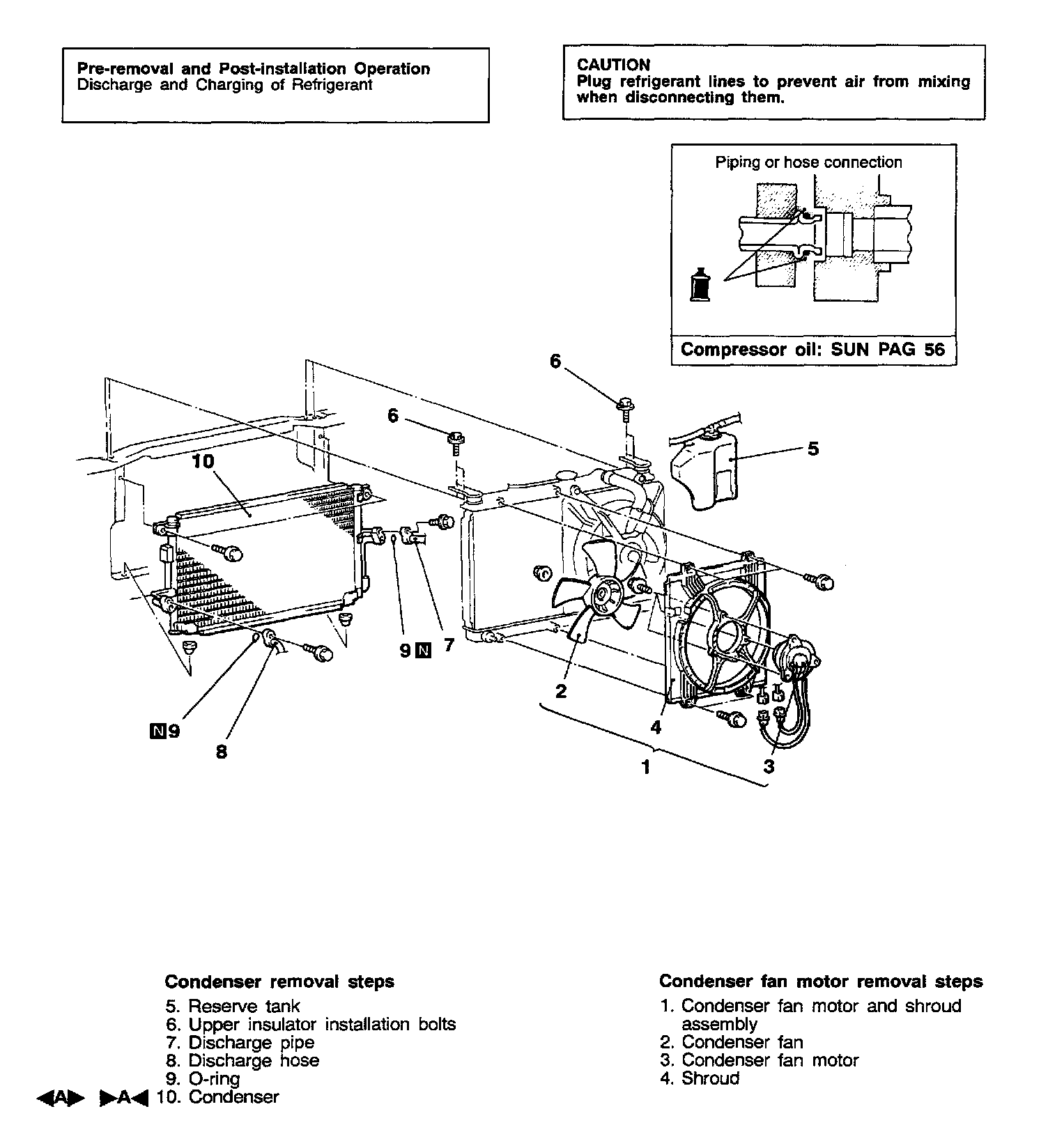

REMOVAL SERVICE POINT




A CONDENSER REMOVAL

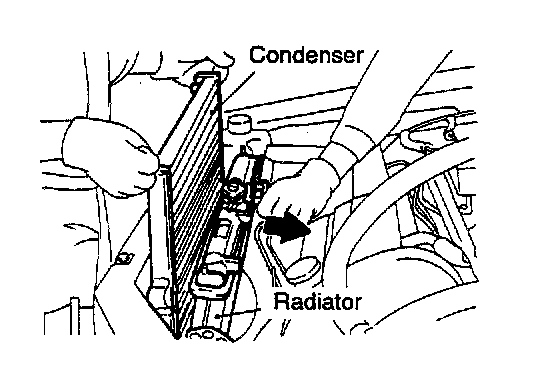

Move the radiator to the engine side and then lift up the condenser to remove it.

INSTALLATION SERVICE POINT

A CONDENSER INSTALLATION
When replacing the condenser with a new one, refill the condenser with a specified amount of compressor oil and install it (to the vehicle).
Compressor oil: SUN PAG 56
Quantity: 15 cubic.cm (0.5 fl.oz.)
