Condenser Fan: Testing and Inspection

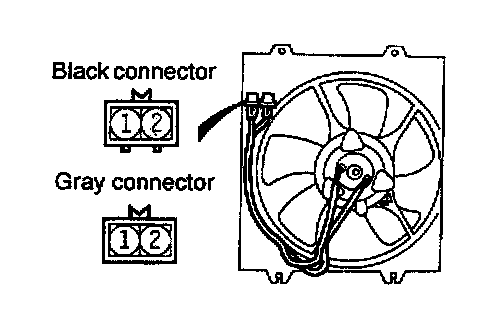

1. Check to be sure that the condenser fan motor operates when battery voltage (+) is applied to terminal 1 of the gray connector and terminal 2 is grounded (-).
2. In this same condition, apply battery (+) voltage to terminal 1 of the black connector and grounded terminal 2. Check to be sure that the condenser fan motor operates faster at this time.
