Vehicles Without Keyless Entry System

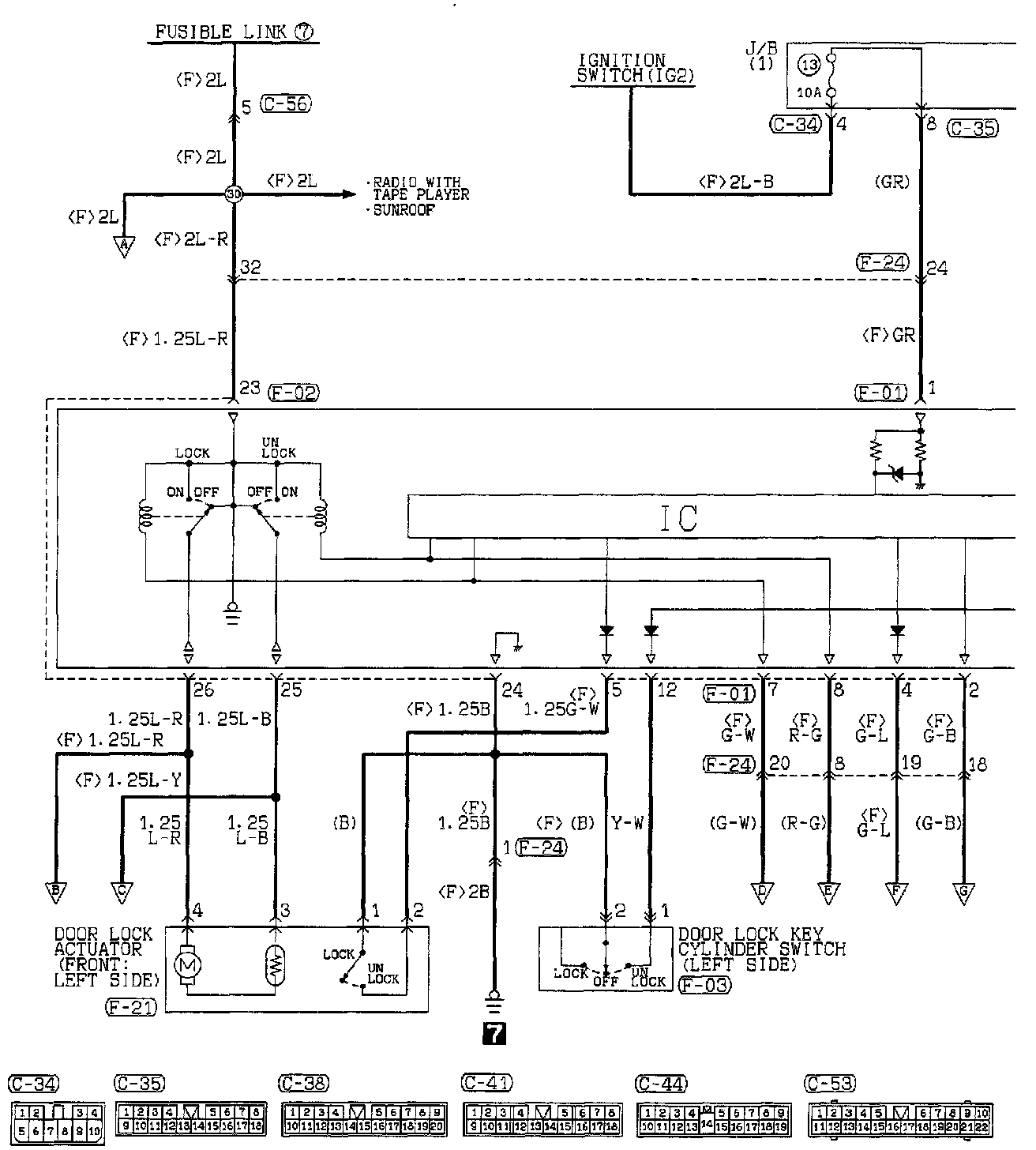

Central Door Locking System <Without Keyless Entry> (Part 1 Of 4):

Door Lock Key Cylinder Switch (Left Side)
Door Lock Actuator (Front: Left Side)
J/B (1)
Power Window Switch (Front: Left Side)
- IC

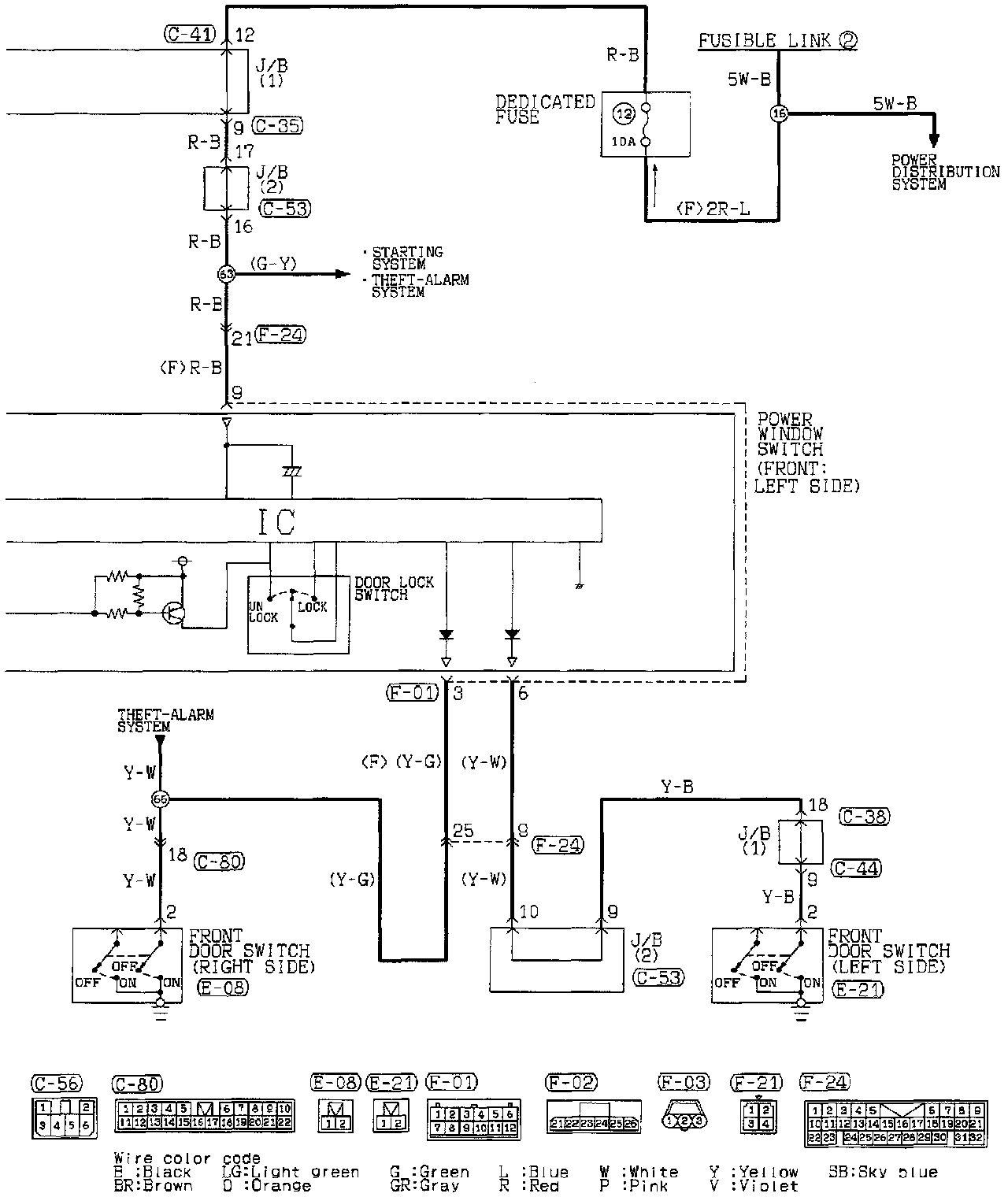

Central Door Locking System <Without Keyless Entry> (Part 2 Of 4):

Dedicated Fuse
Front Door Switch (Right & Left Side)
J/B (1 & 2)
Power Window Switch (Front: Left Side)
- IC

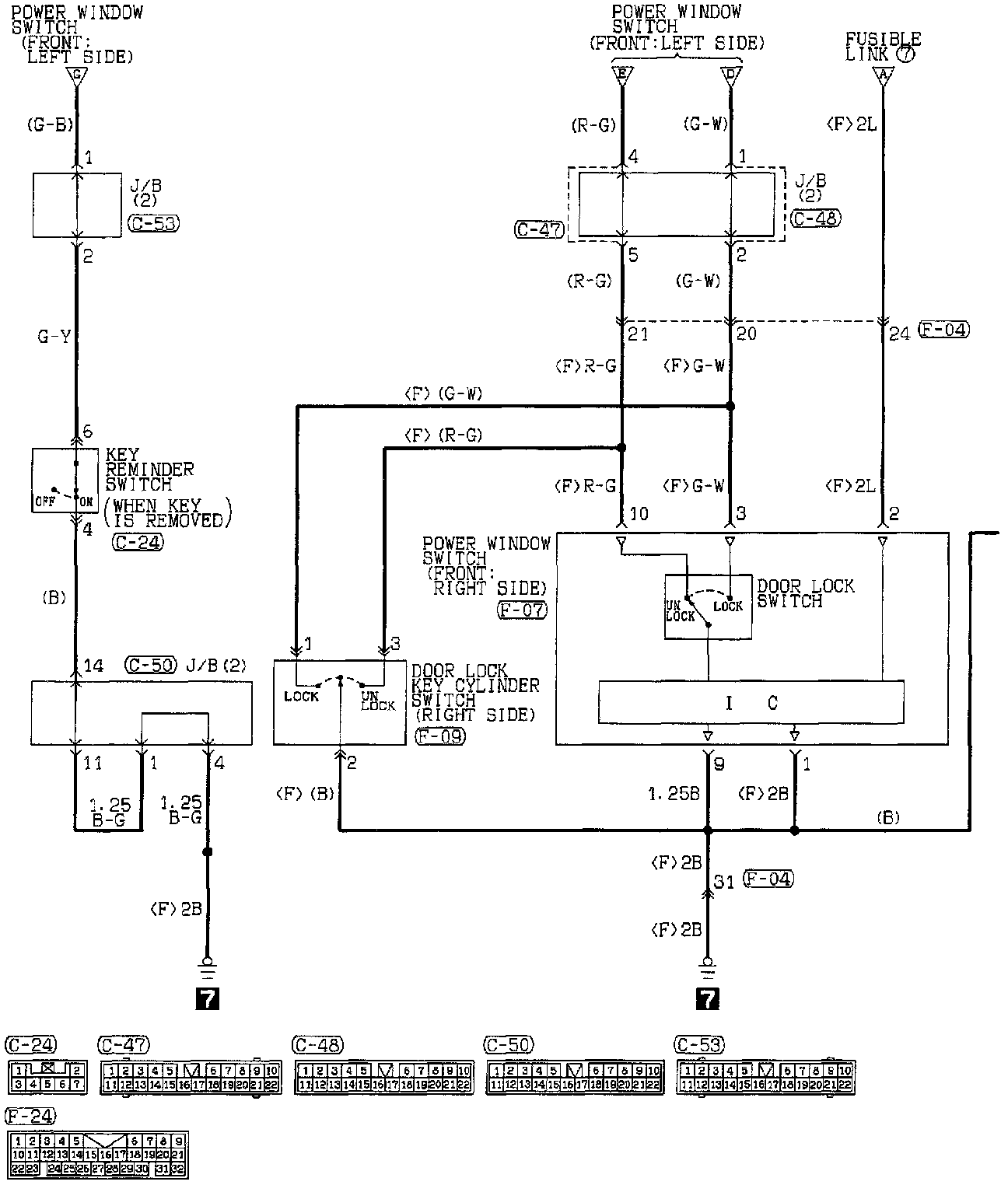

Central Door Locking System <Without Keyless Entry> (Part 3 Of 4):

Door Lock Key Cylinder Switch (Right Side)
J/B (2)
Key Reminder Switch (When key is removed)
Power Window Switch (Front: Right Side)

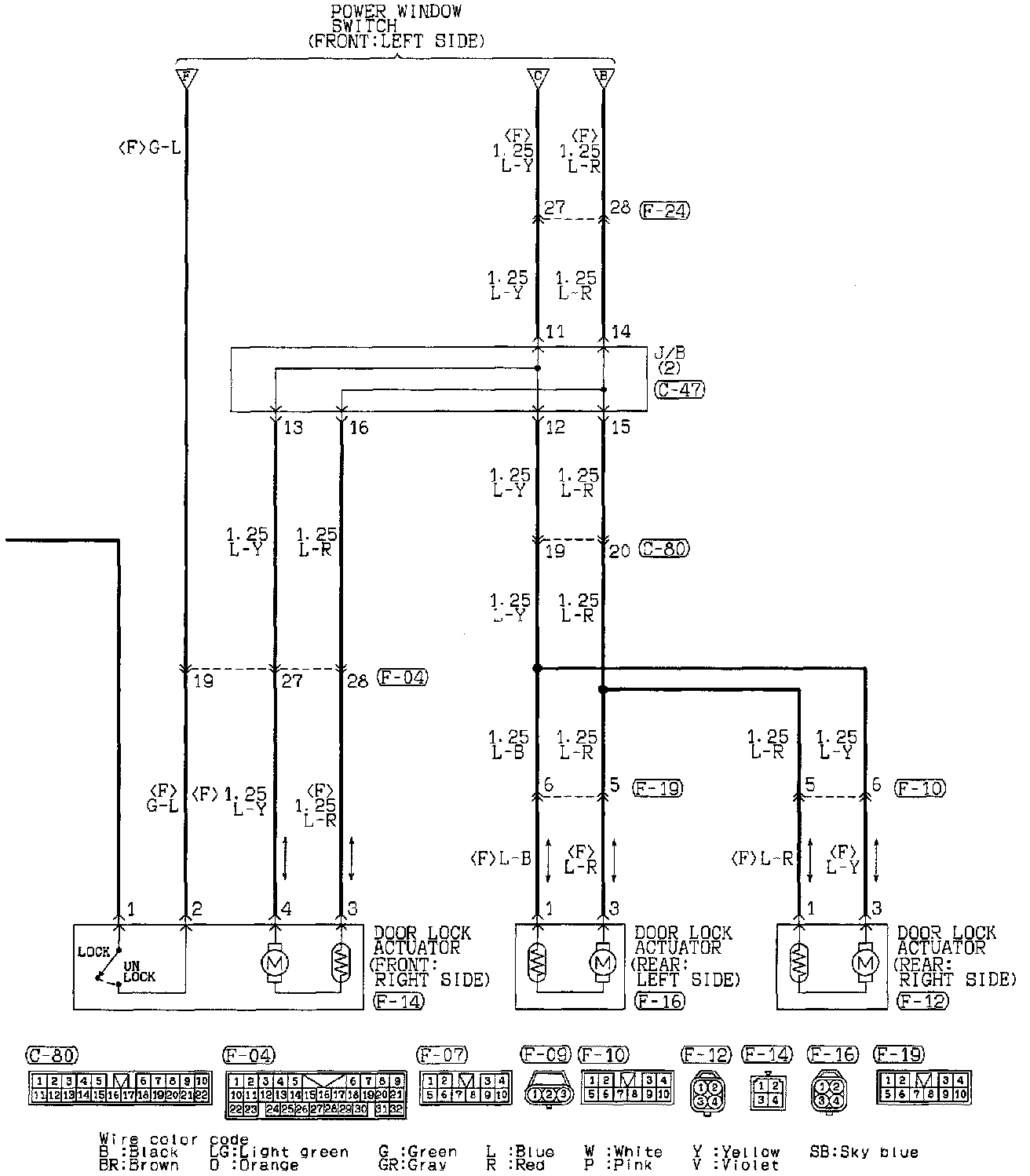

Central Door Locking System <Without Keyless Entry> (Part 4 Of 4):

Door Lock Actuator (Front: Right Side)
Door Lock Actuator (Rear: Left & Right Side)
J/B (2)
