Vehicles With Keyless Entry System

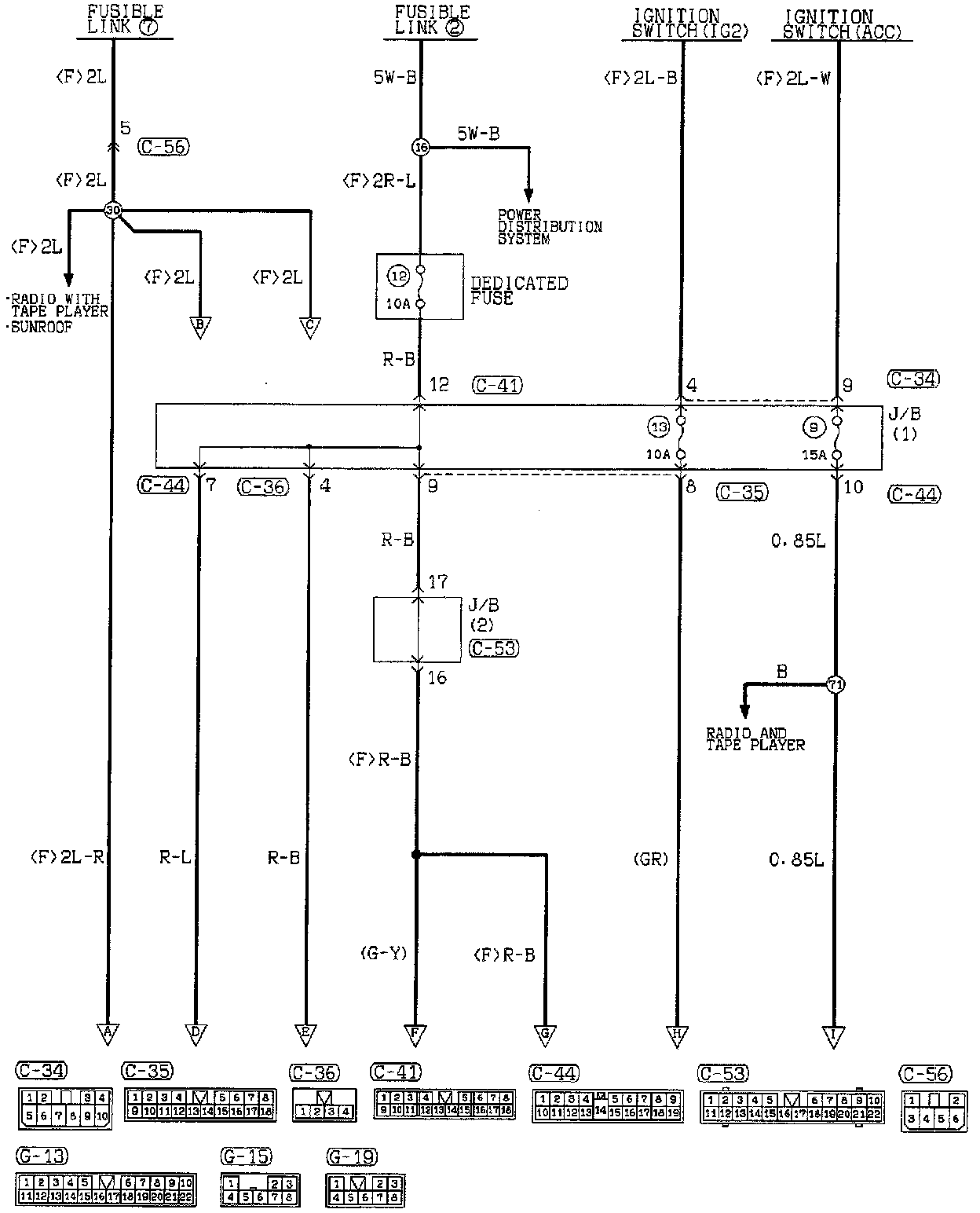

Central Door Locking System <With Keyless Entry> (Part 1 Of 8):

Dedicated Fuse
J/B (1, 2)

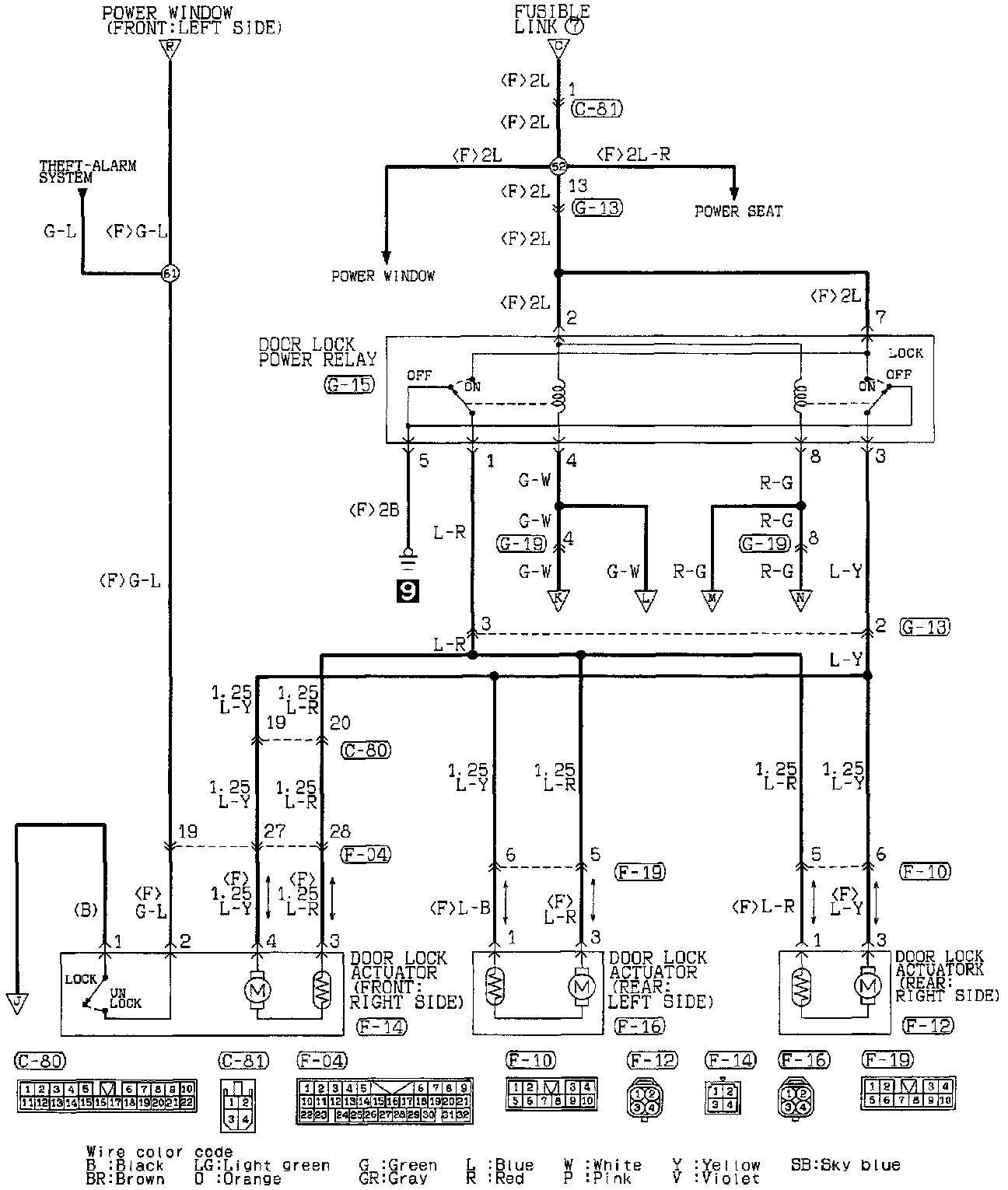

Central Door Locking System <With Keyless Entry> (Part 2 Of 8):

Door Lock Power Relay
Door Lock Actuator (Rear: Left & Right Side)
Door Lock Actuator (Front: Right Side)

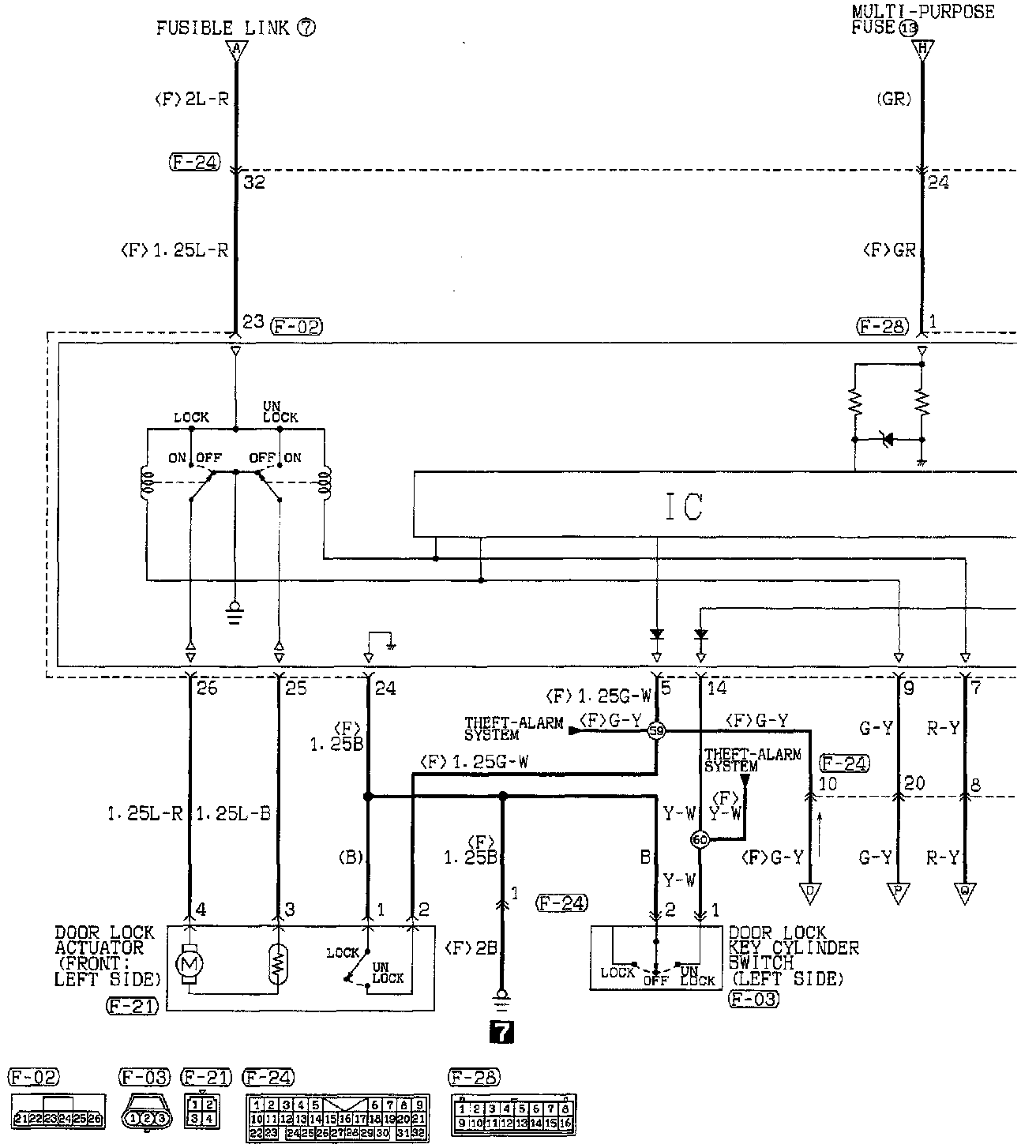

Central Door Locking System <With Keyless Entry> (Part 3 Of 8):

Door Lock Actuator (Front: Left Side)
Door Lock Key Cylinder Switch (Left Side)
Power Door Switch (Front: Left Side)
- IC

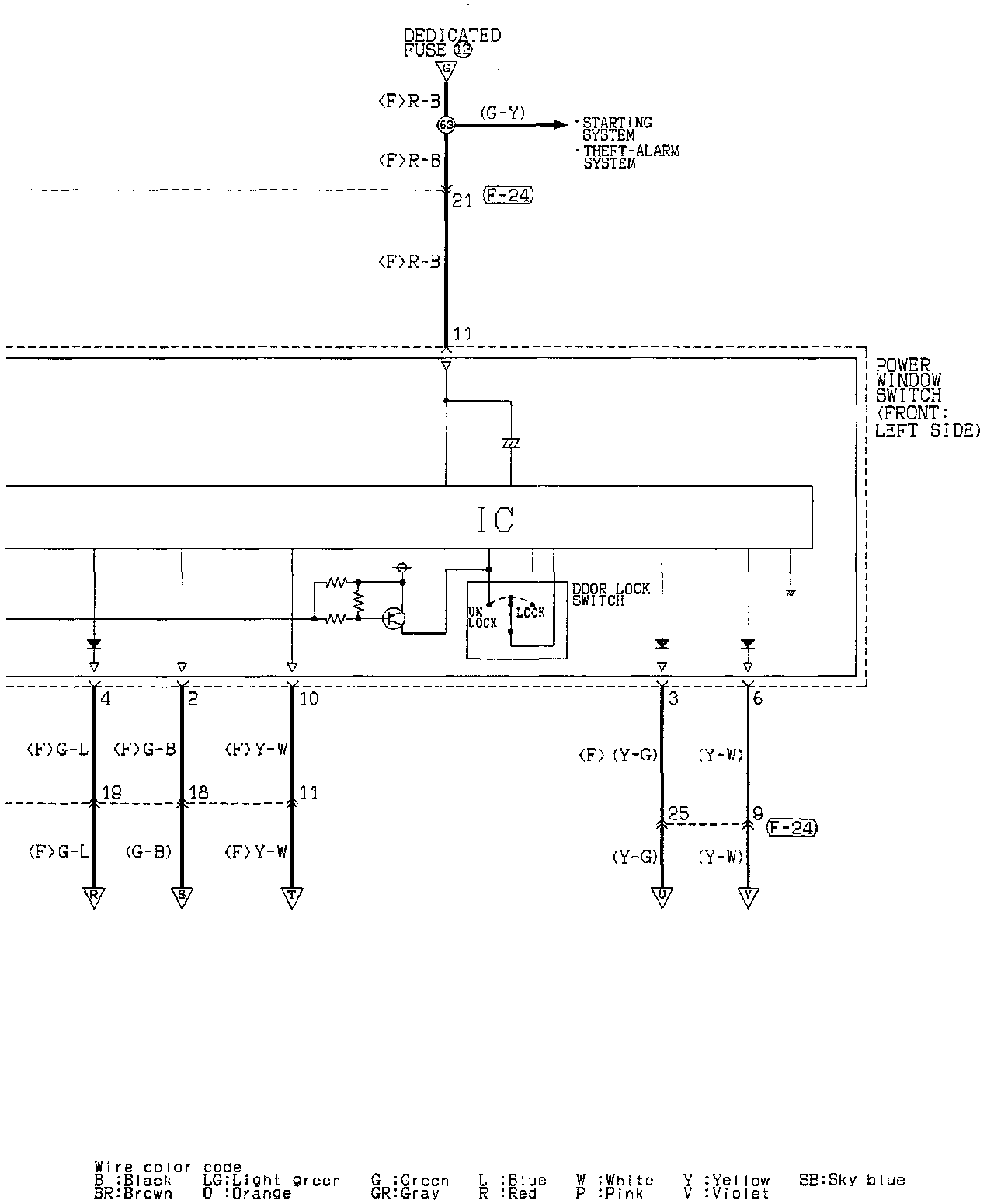

Central Door Locking System <With Keyless Entry> (Part 4 Of 8):

Power Door Switch (Front: Left Side)
- IC

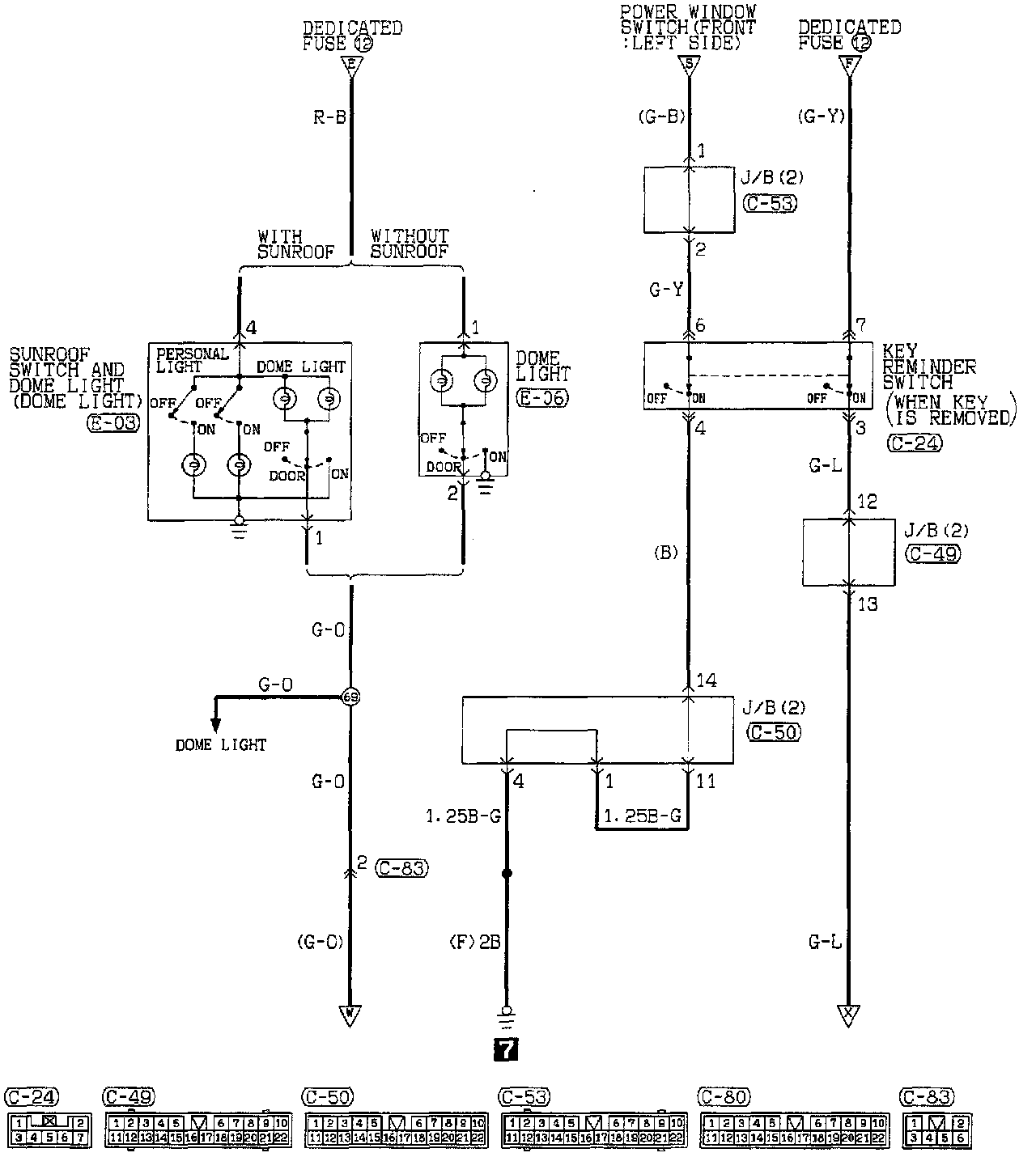

Central Door Locking System <With Keyless Entry> (Part 5 Of 8):

Dome Light
J/B (2)
Key Reminder Switch (When key is removed)
Sunroof Switch And Dome Light (Dome Light)

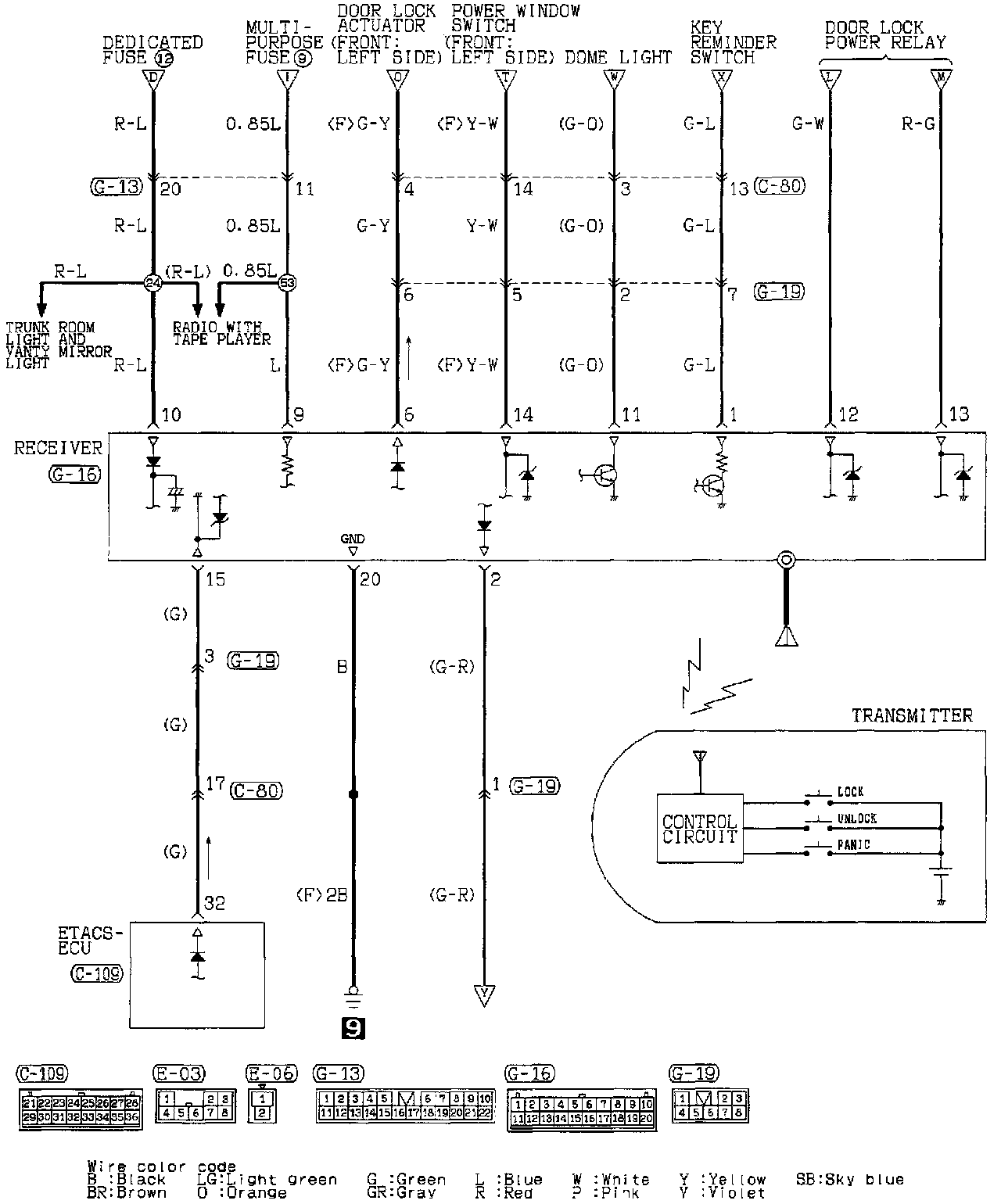

Central Door Locking System <With Keyless Entry> (Part 6 Of 8):

ETACS-ECU
Receiver

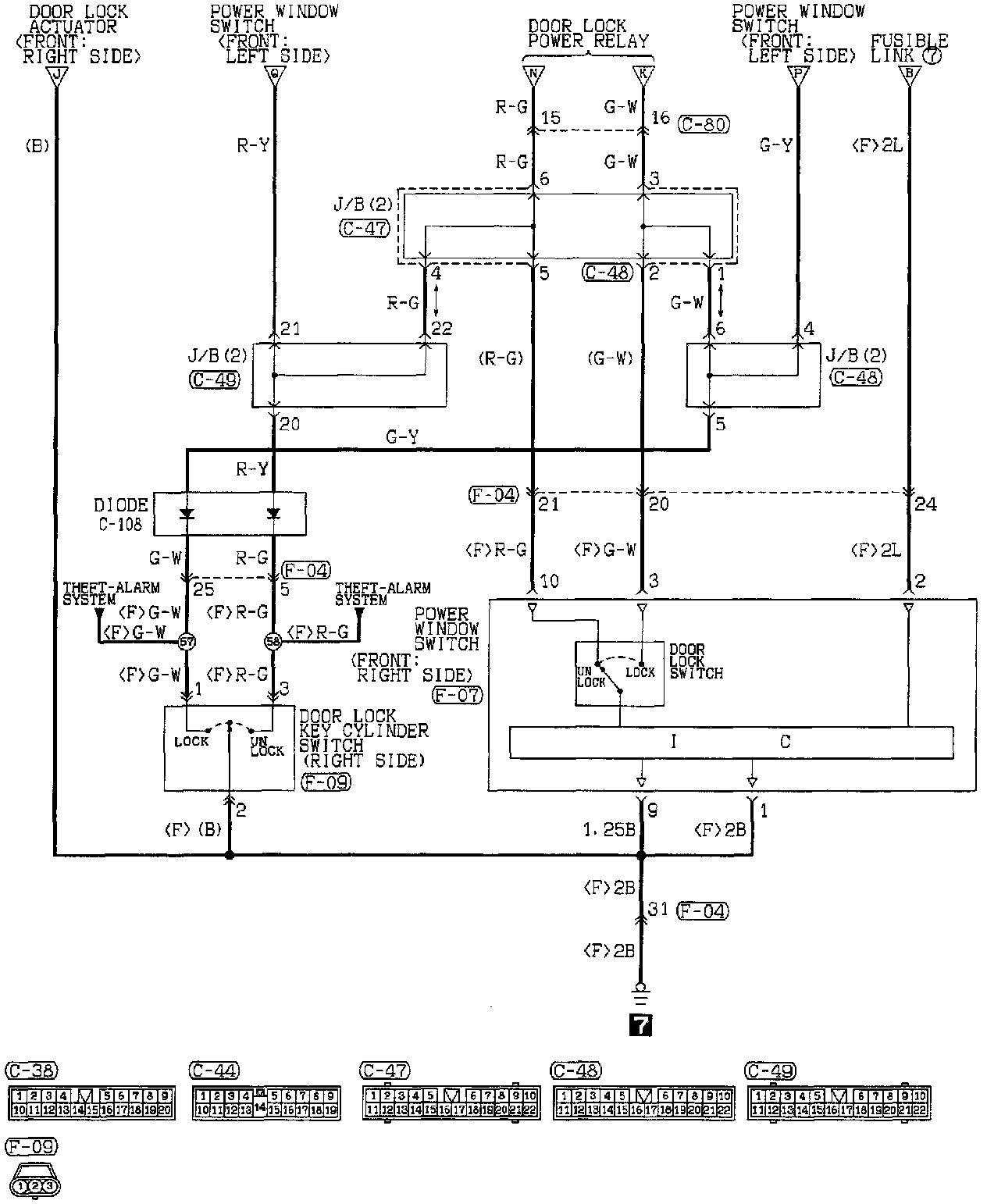

Central Door Locking System <With Keyless Entry> (Part 7 Of 8):

Door Lock Key Cylinder Switch (Right Side)
Diode
J/B (2)
Power Window Switch (Front: Right Side)
- IC

Central Door Locking System <With Keyless Entry> (Part 8 Of 8):

Front Door Switch (Left & Right Side)
J/B (1, 2)
Rear Door Switch (Left & Right Side)
