Map Light

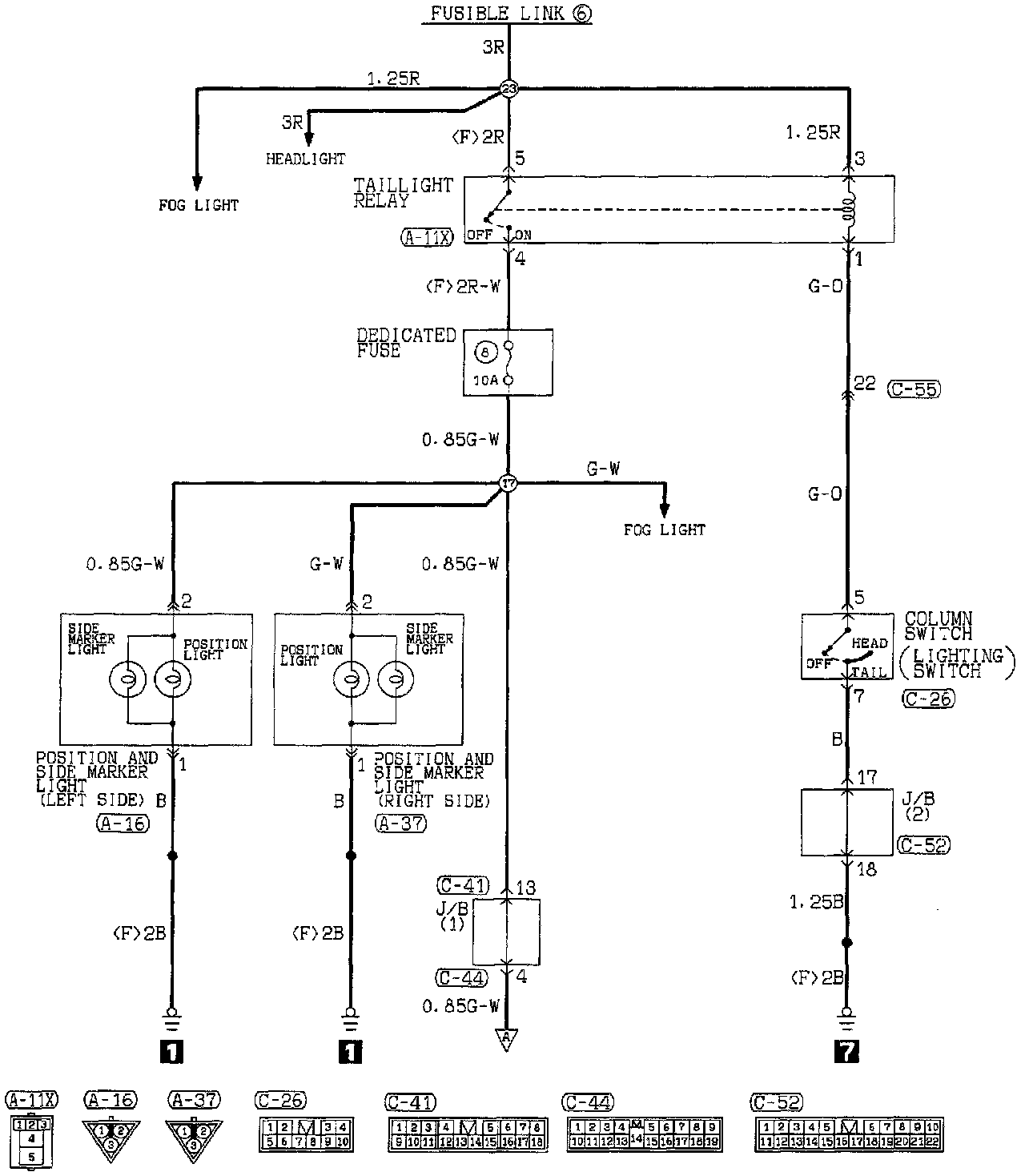

Tail, Position, Side-Marker And License Plate Light (Part 1 Of 3):

Column Switch (Lighting Switch)
Dedicated Fuse
J/B (1 & 2)
Position and Side Marker Light (Left & Right Side)
Taillight Relay

Tail, Position, Side-Marker And License Plate Light (Part 2 Of 3):

Rear Side Marker Light (Left & Right Side)
Rear Combination Light (Left & Right Side)

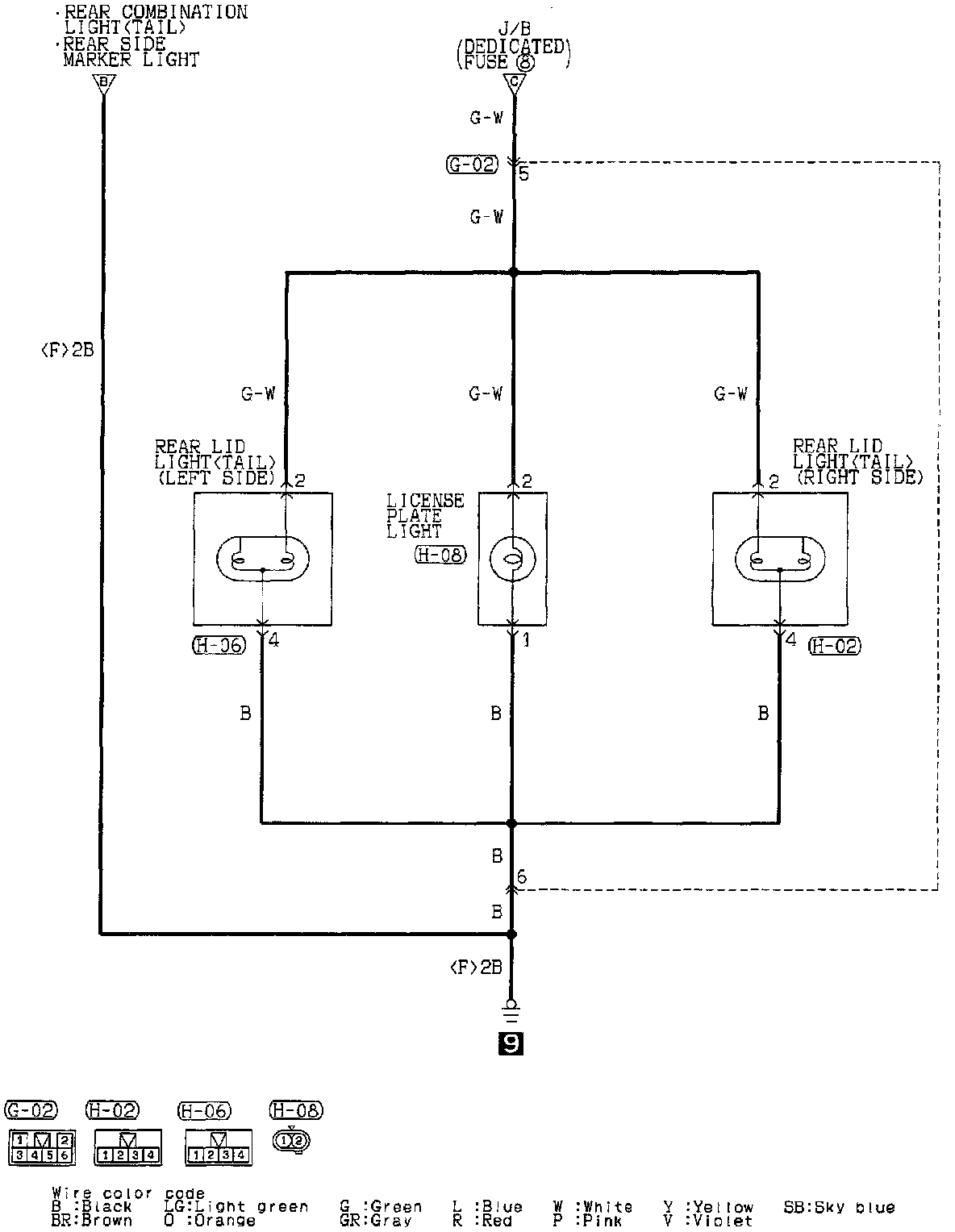

Tail, Position, Side-Marker And License Plate Light (Part 3 Of 3):

Rear Lid Light (Left & Right Side)
License Plate Light
