Cruise Control

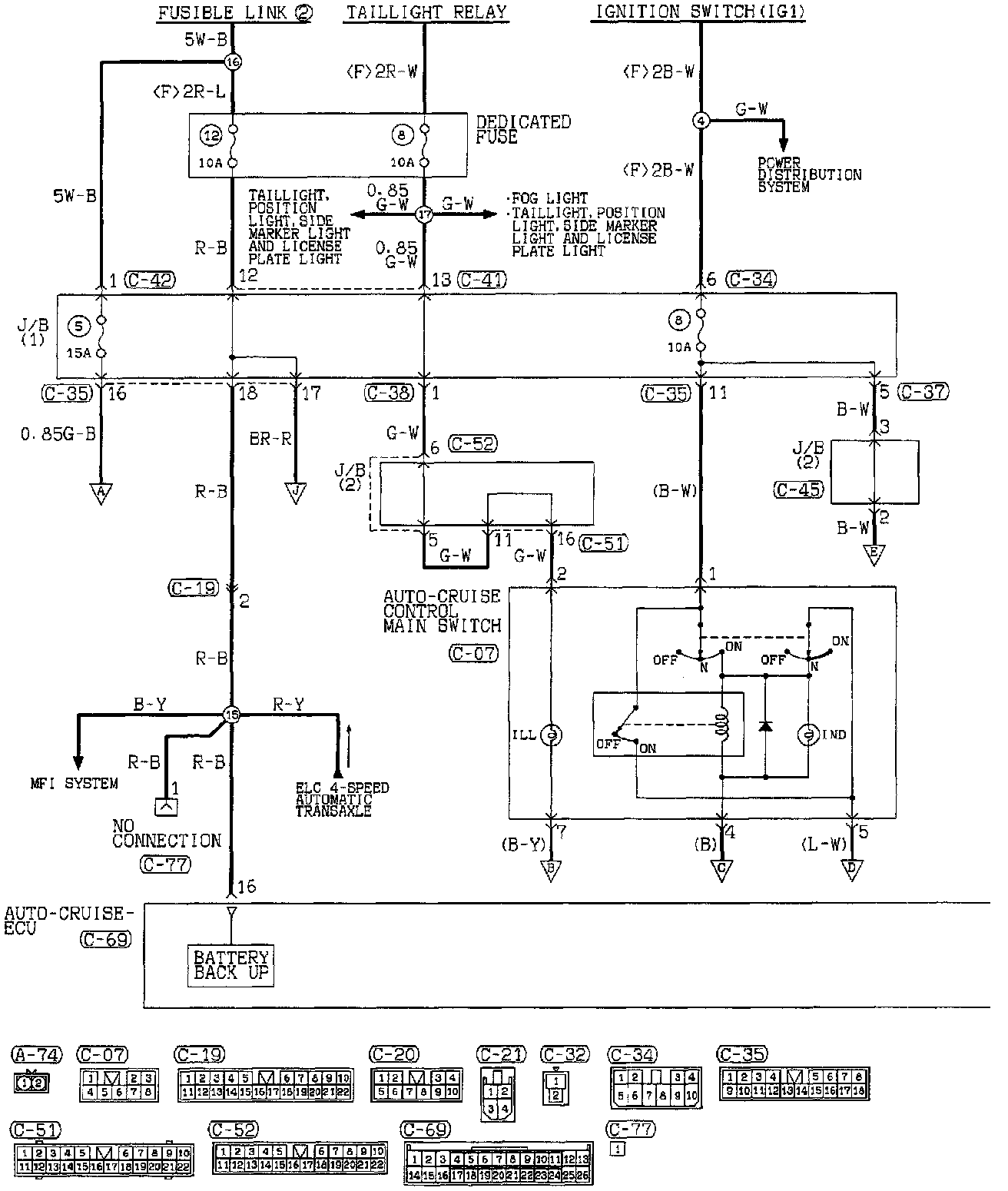

Auto-cruise Control System (Part 1 Of 7):

Auto-Cruise Control Main Switch
Auto-Cruise ECU
- Battery Back Up
Dedicated Fuse
J/B (1, 2)

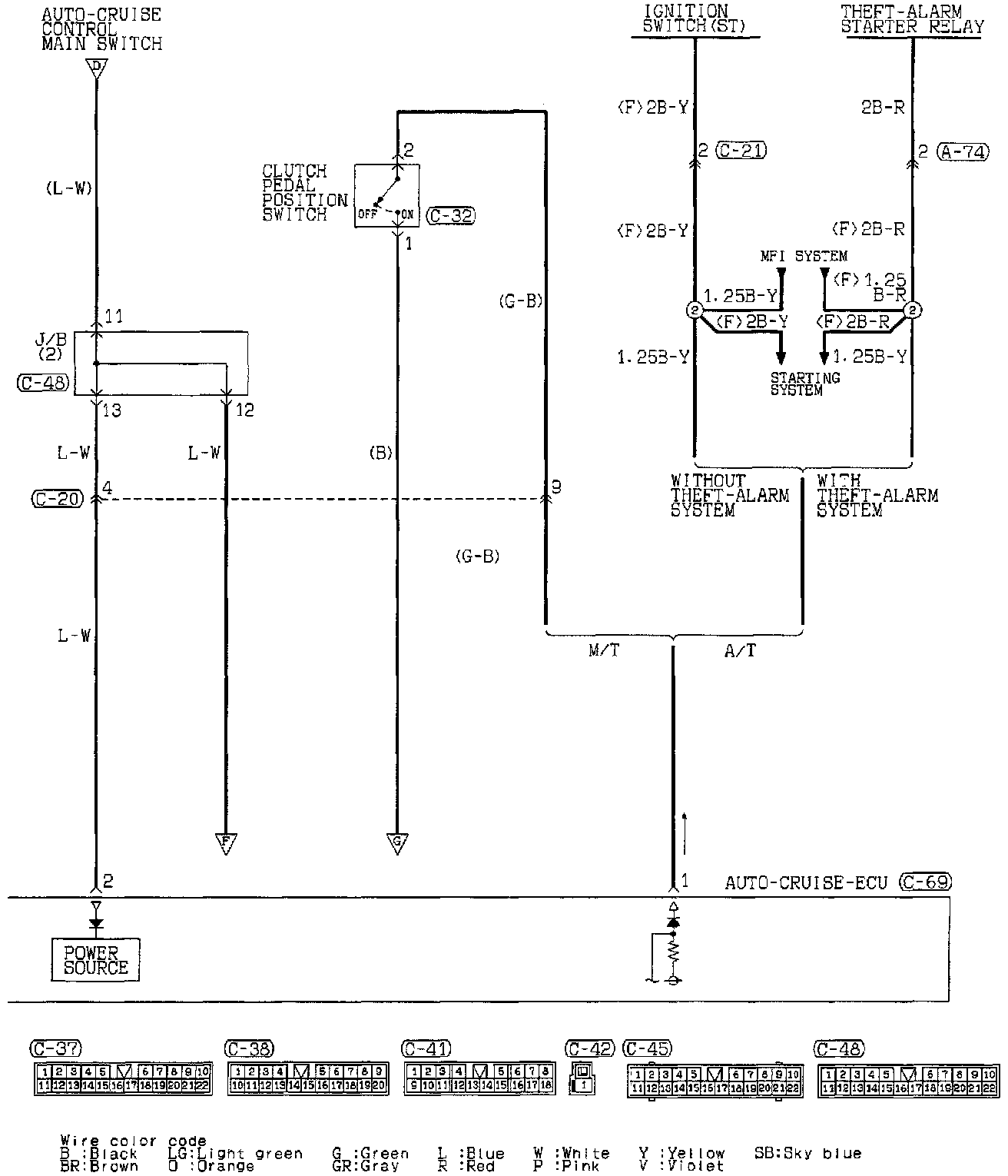

Auto-cruise Control System (Part 2 Of 7):

Auto-Cruise ECU
- Power Source
Clutch Pedal Position Switch
J/B (2)

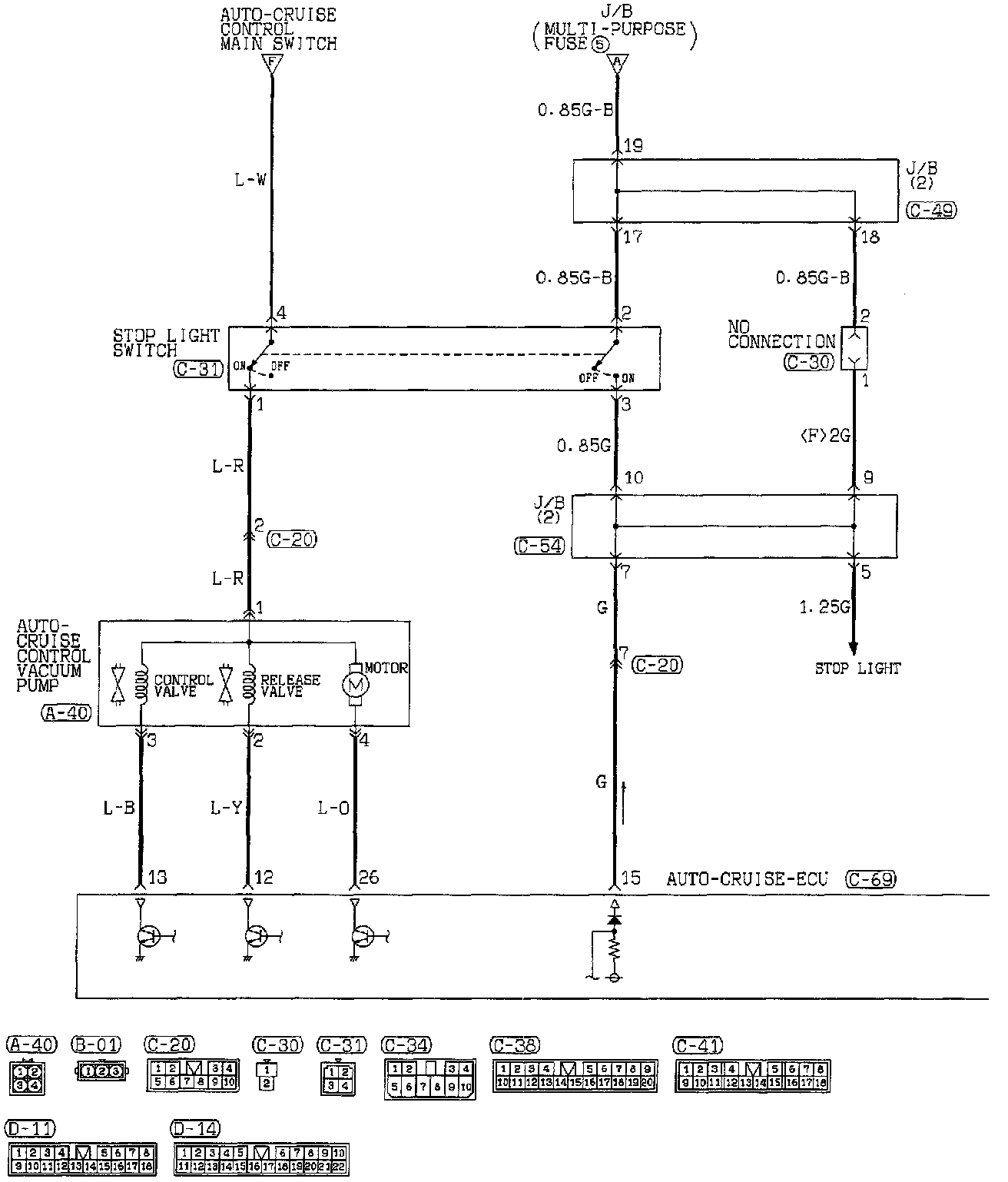

Auto-cruise Control System (Part 3 Of 7):

Auto Cruise Control Vacuum Pump
Auto Cruise ECU
J/B (2)
Stop Light Switch

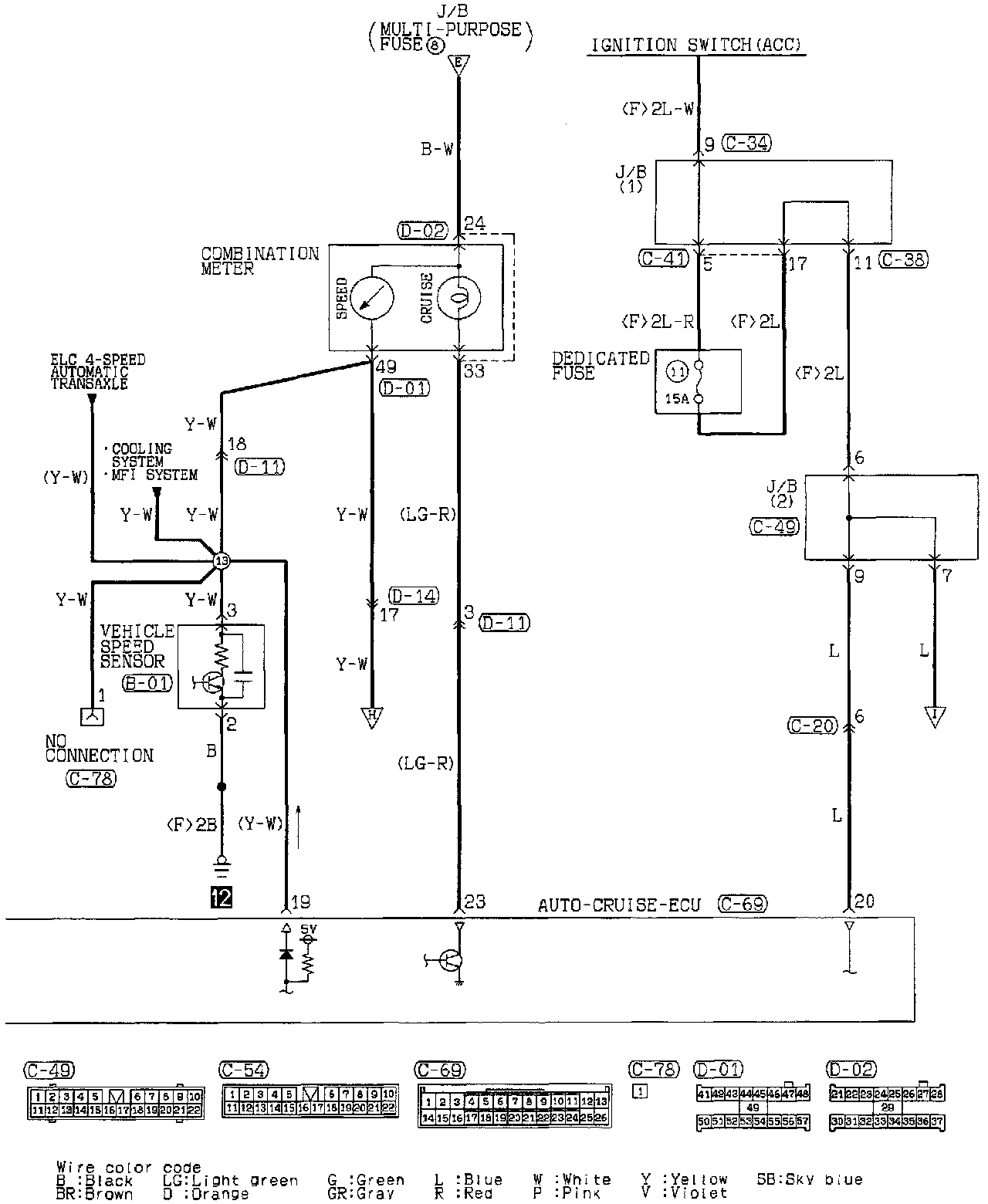

Auto-cruise Control System (Part 4 Of 7):

Auto Cruise ECU
Combination Meter
Dedicated Fuse
J/B (1, 2)
Vehicle Speed Sensor

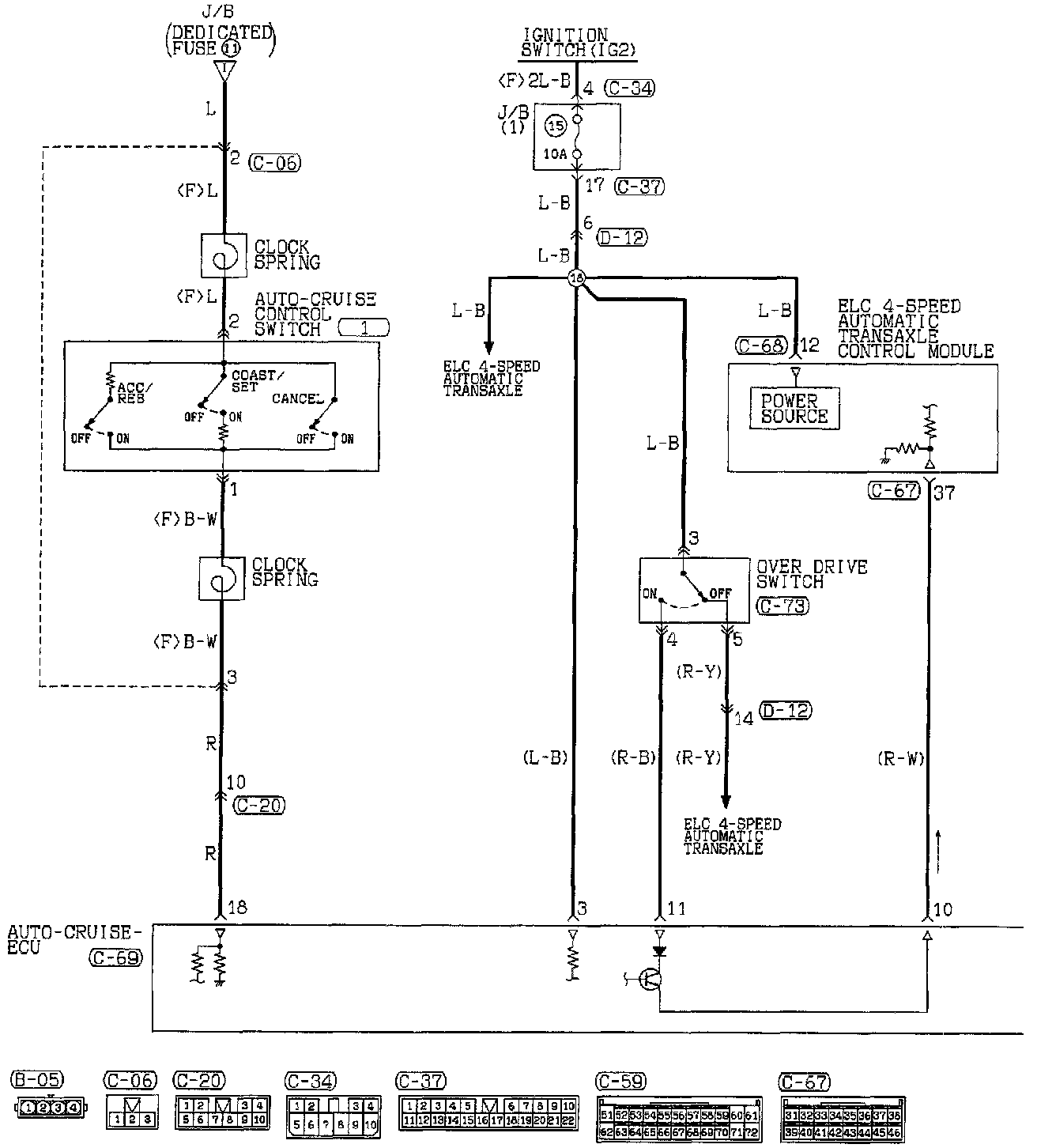

Auto-cruise Control System (Part 5 Of 7):

Auto Cruise Control Switch
Auto Cruise ECU
Clock Spring
ELC 4-Speed Automatic Transaxle Control Module
- Power Source
J/B (1)
Over Drive Switch

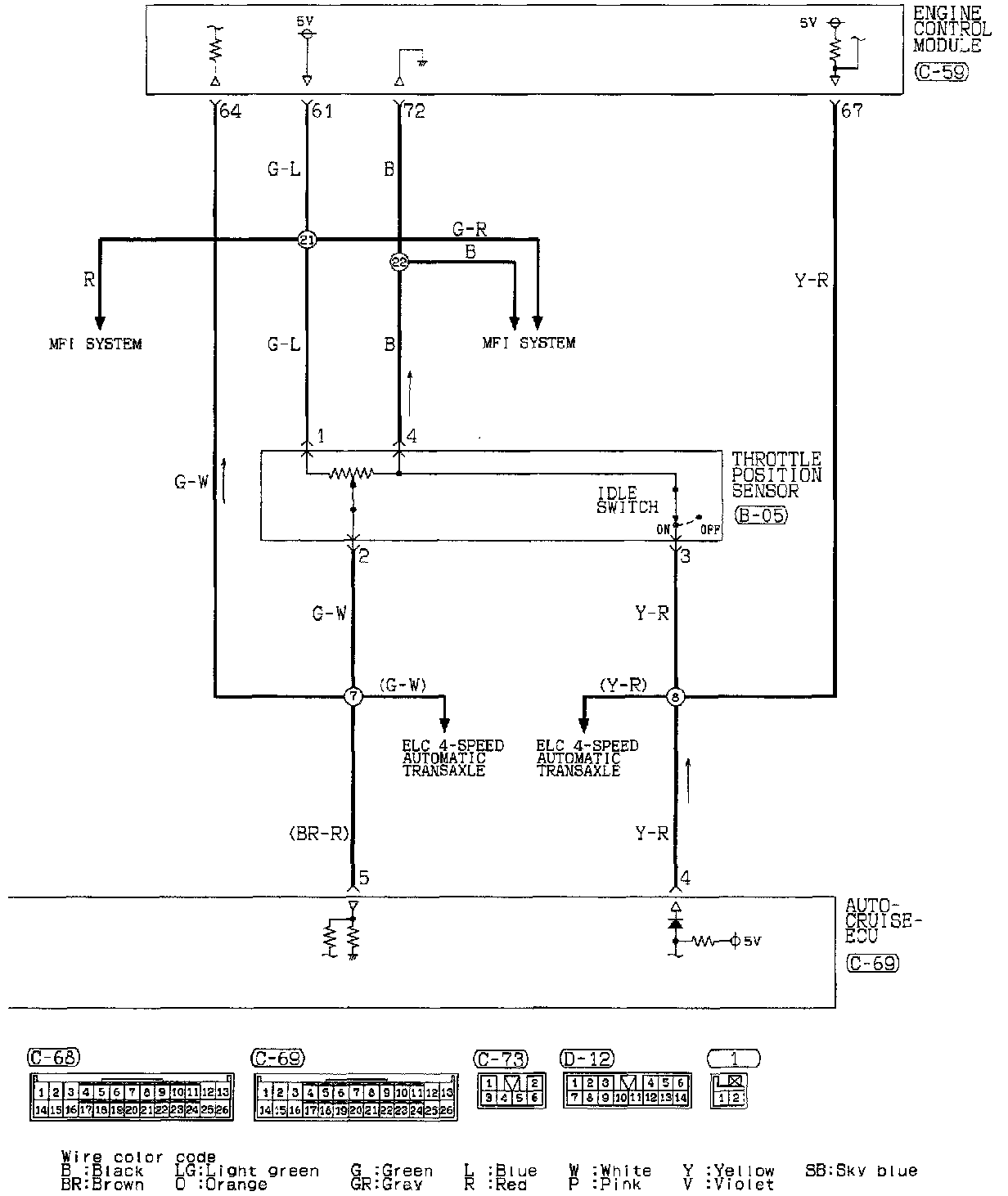

Auto-cruise Control System (Part 6 Of 7):

Auto Cruise ECU
Engine Control Module
Throttle Position Sensor

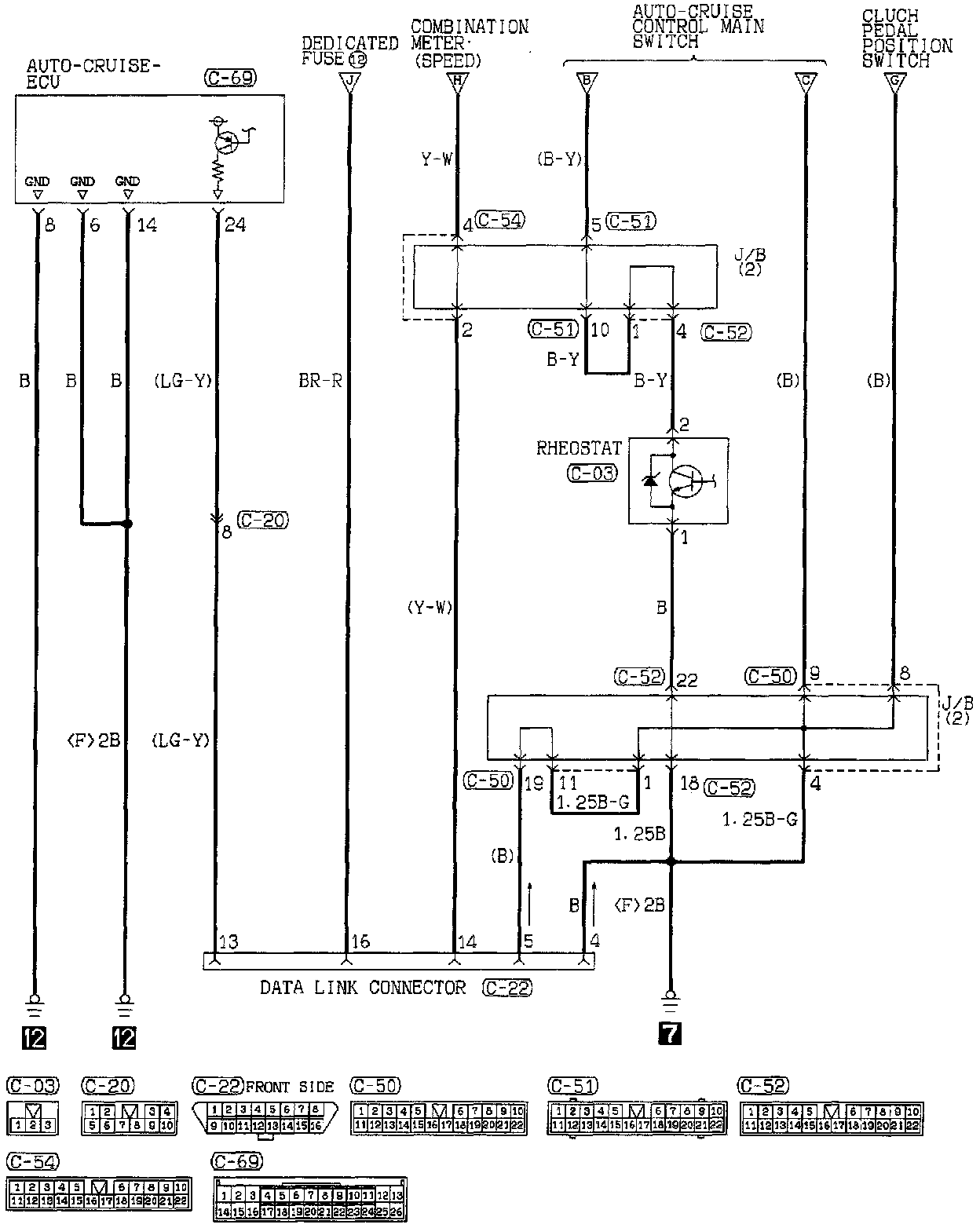

Auto-cruise Control System (Part 7 Of 7):

Auto Cruise ECU
Data Link Connector
J/B (2)
