Antitheft and Alarm Systems

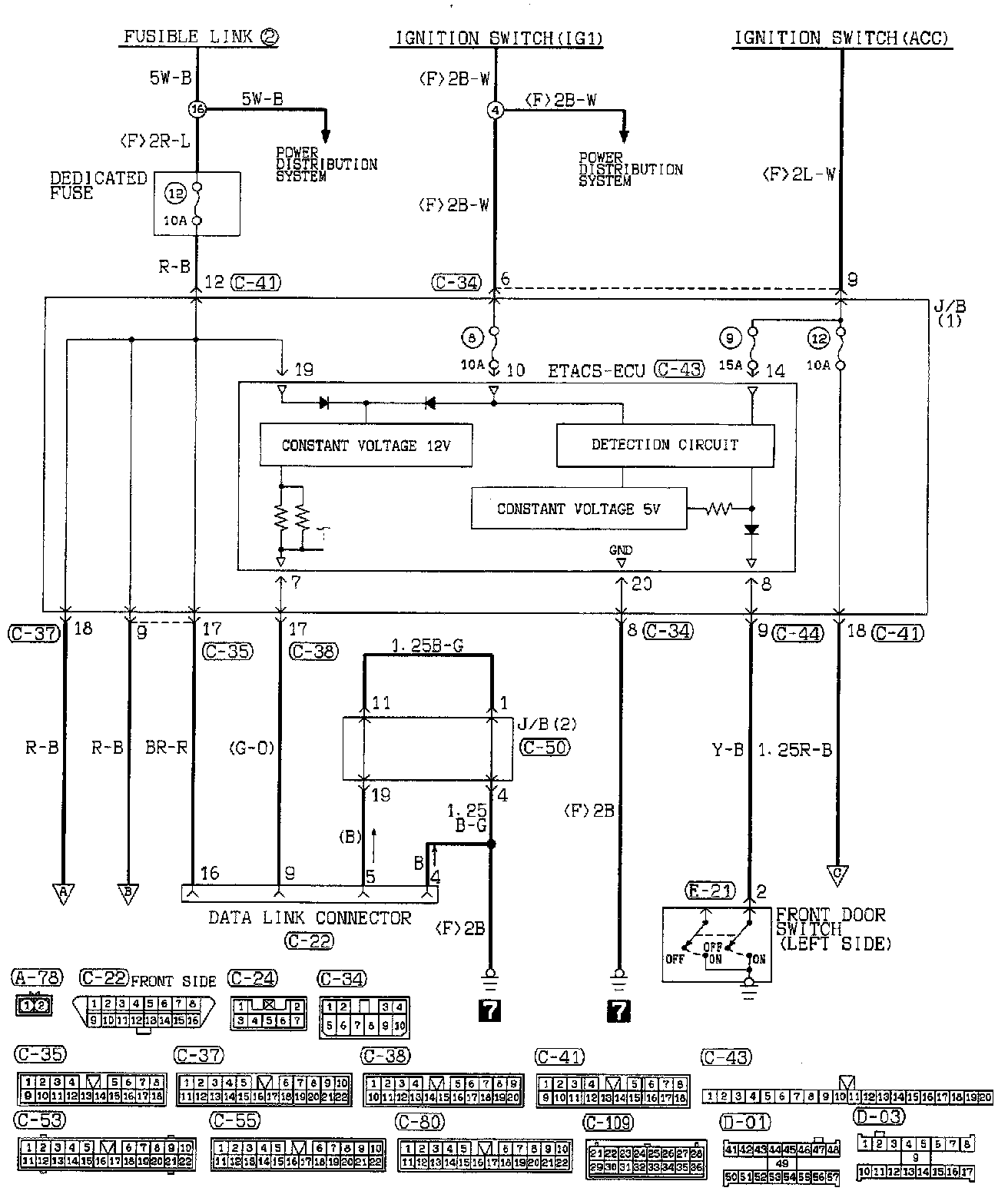

Theft-alarm System (Part 1 Of 7):

Data Link Connector
Dedicated Fuse
Front Door Switch (Left Side)
J/B (1)
- ETACS-ECU
J/B (2)

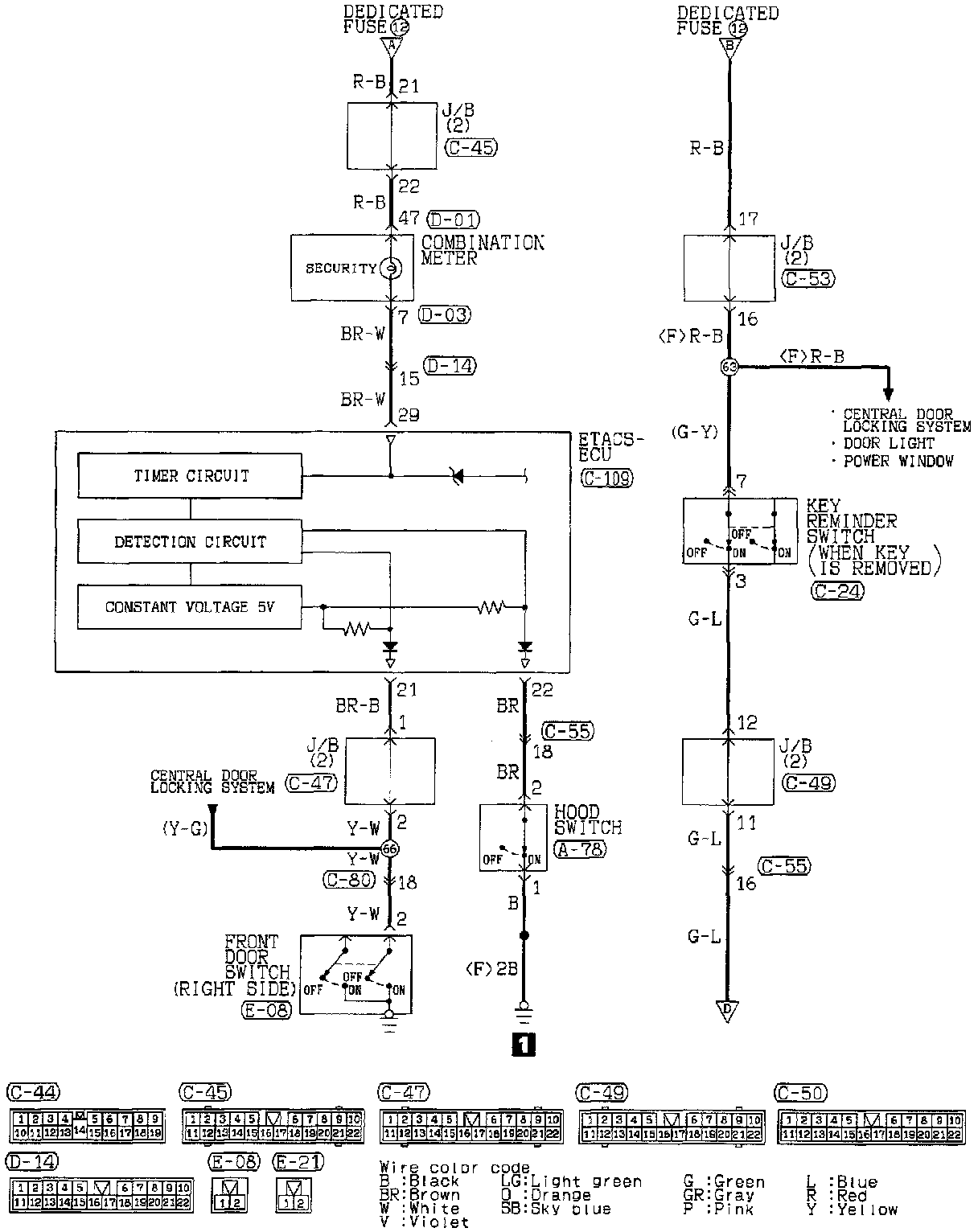

Theft-alarm System (Part 2 Of 7):

Combination Meter
ETACS-ECU
Front Door Switch (Right Side)
Hood Switch
J/B (1, 2)
Key Reminder Switch (When key is removed)

Theft-alarm System (Part 3 Of 7):

Door Lock Key Cylinder Switch (Left & Right Side)
ETACS-ECU
Front Door Actuator (Left & Right Side)

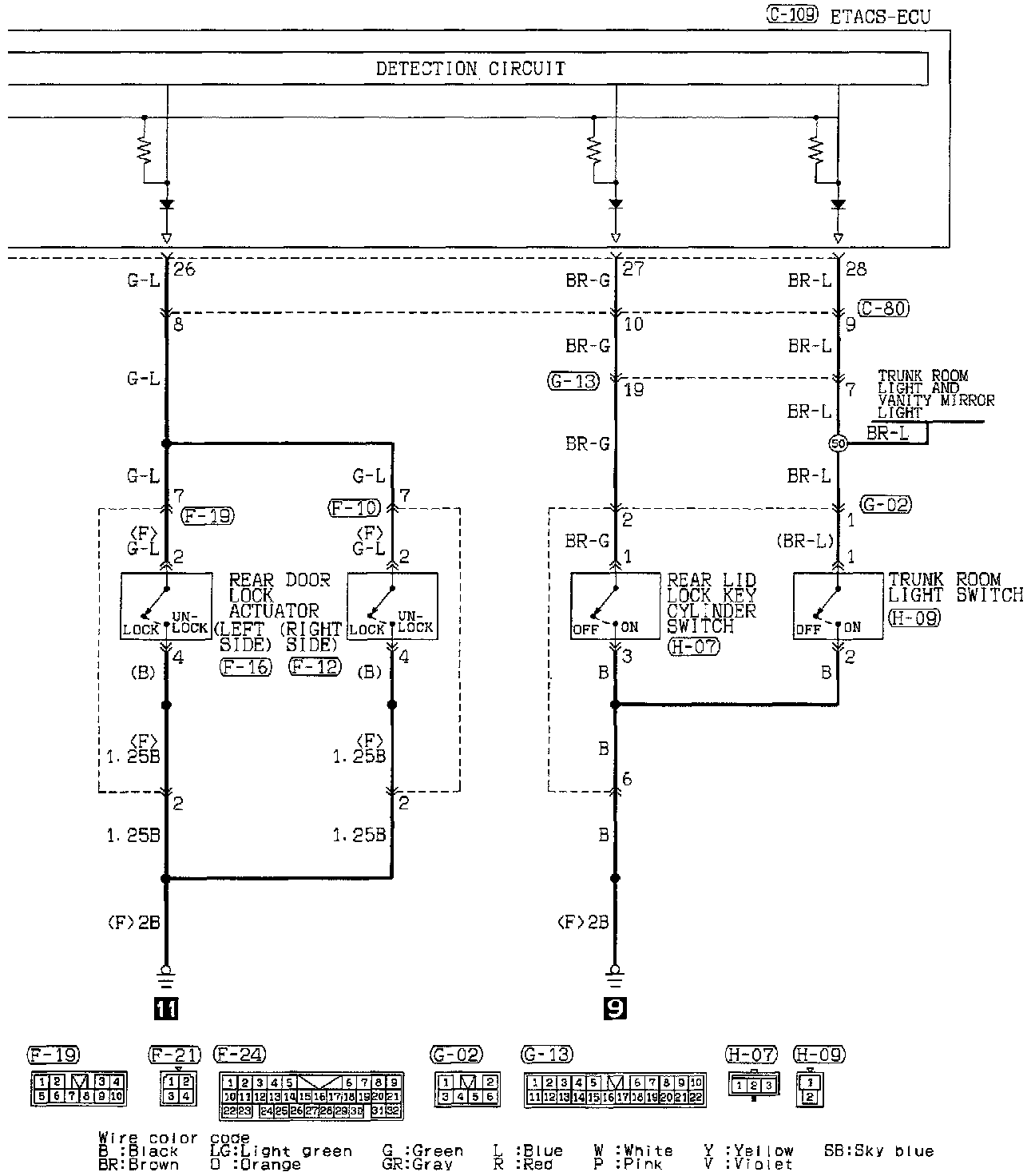

Theft-alarm System (Part 4 Of 7):

ETACS-ECU
Rear Door Lock Actuator (Left & Right Side)
Rear Lid Lock Key Cylinder Switch
Trunk Room Light Switch

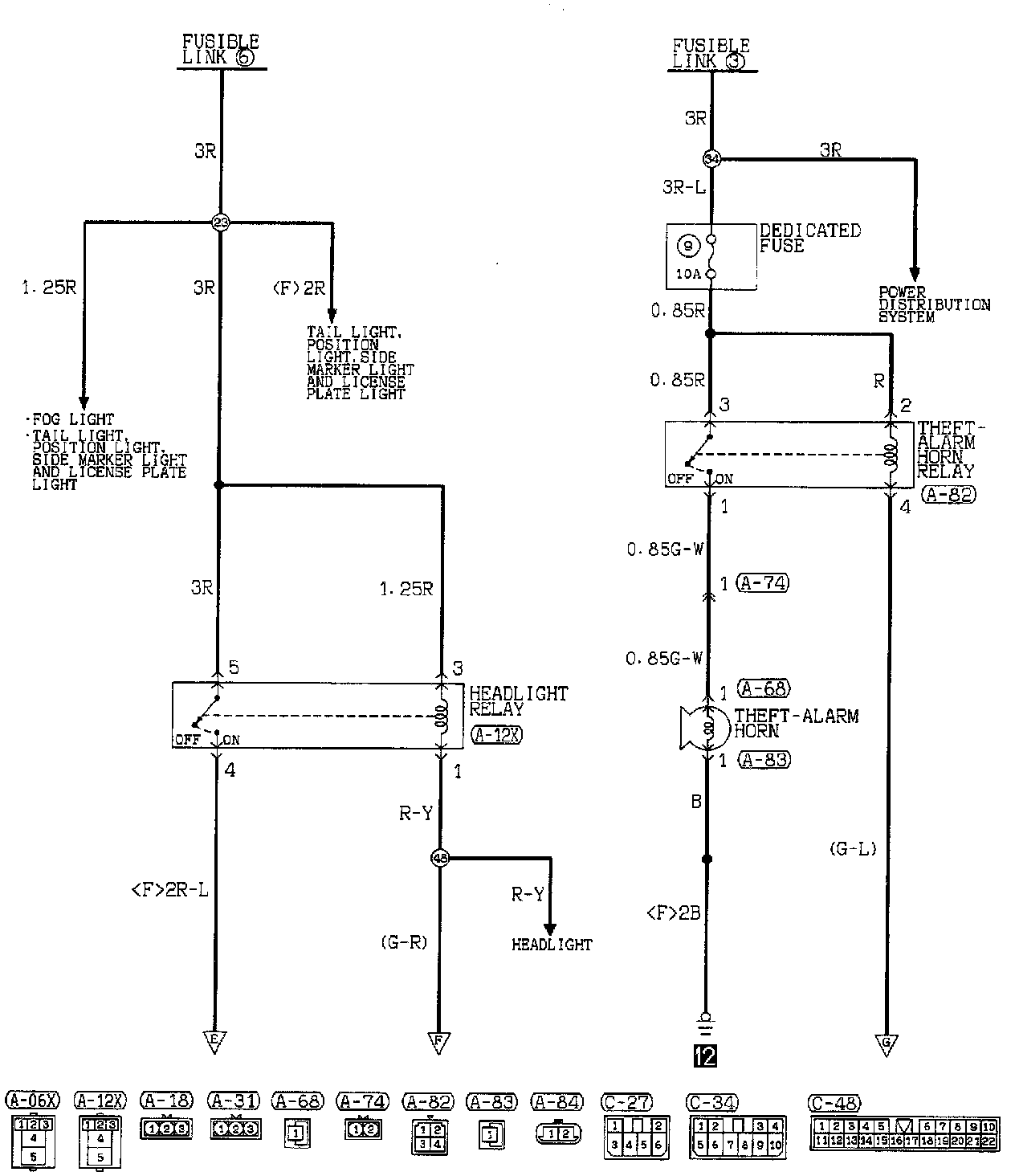

Theft-alarm System (Part 5 Of 7):

Dedicated Fuse
Headlight Relay
Theft-Alarm Relay

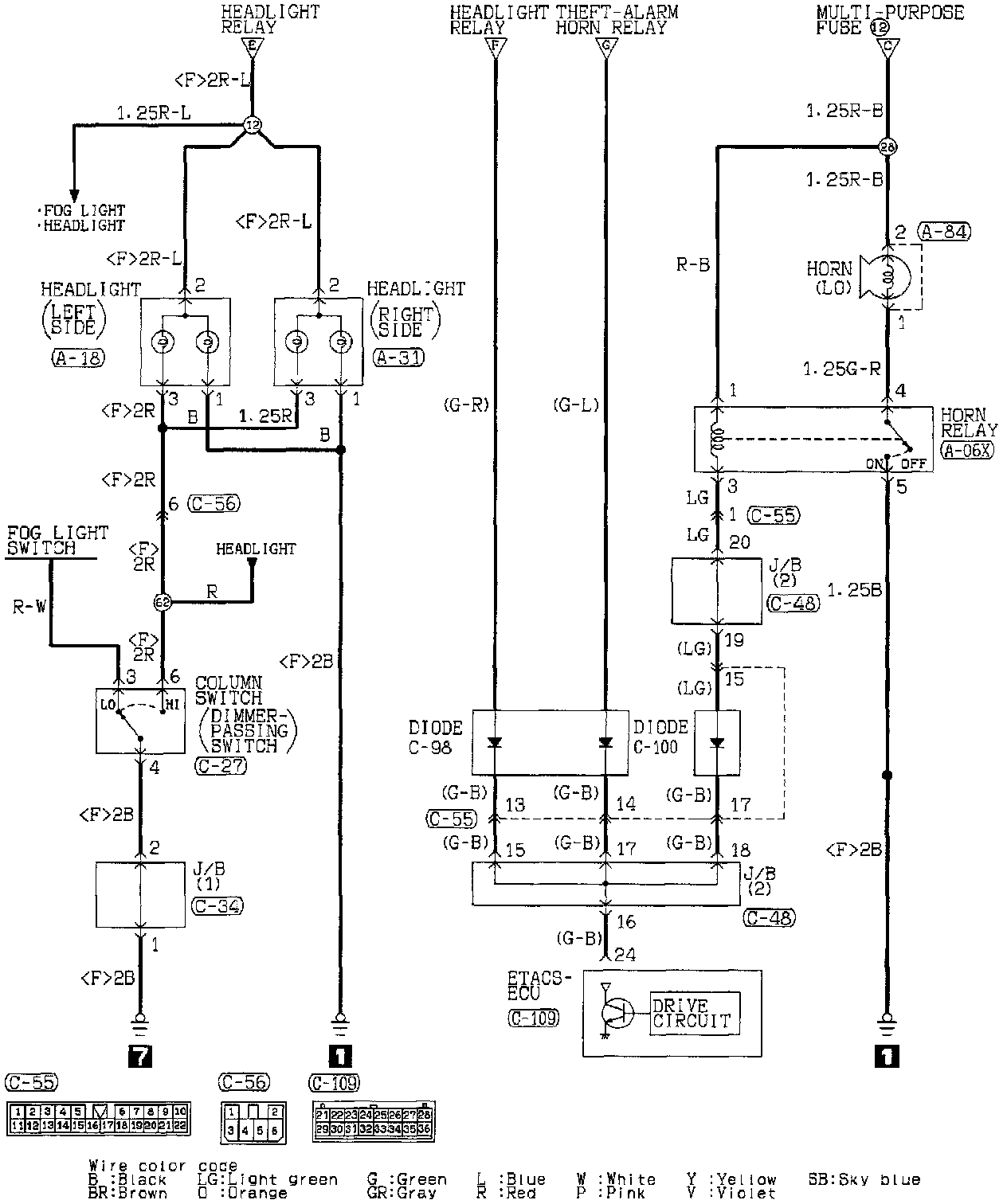

Theft-alarm System (Part 6 Of 7):

Column Switch (Dimmer Passing Switch)
Diode
ETACS-ECU
J/B (1, 2)
Headlight (Left & Right Side)
Horn Relay

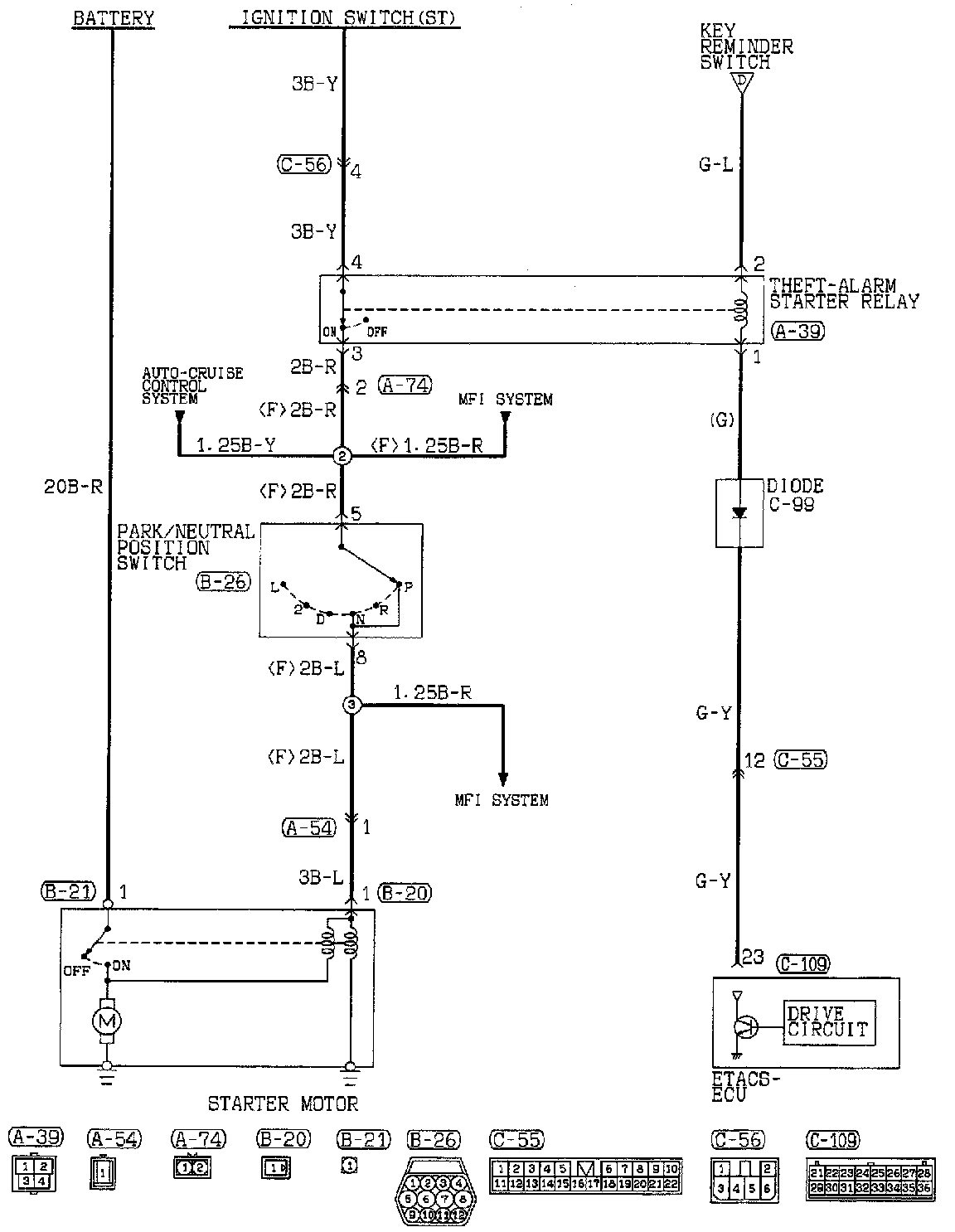

Theft-alarm System (Part 7 Of 7):

Diode
ETACS-ECU
Park/Neutral Position Switch
Starter Motor
Theft-Alarm Starter Relay
