Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1998
>>
Galant ES L4-2350cc 2.4L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

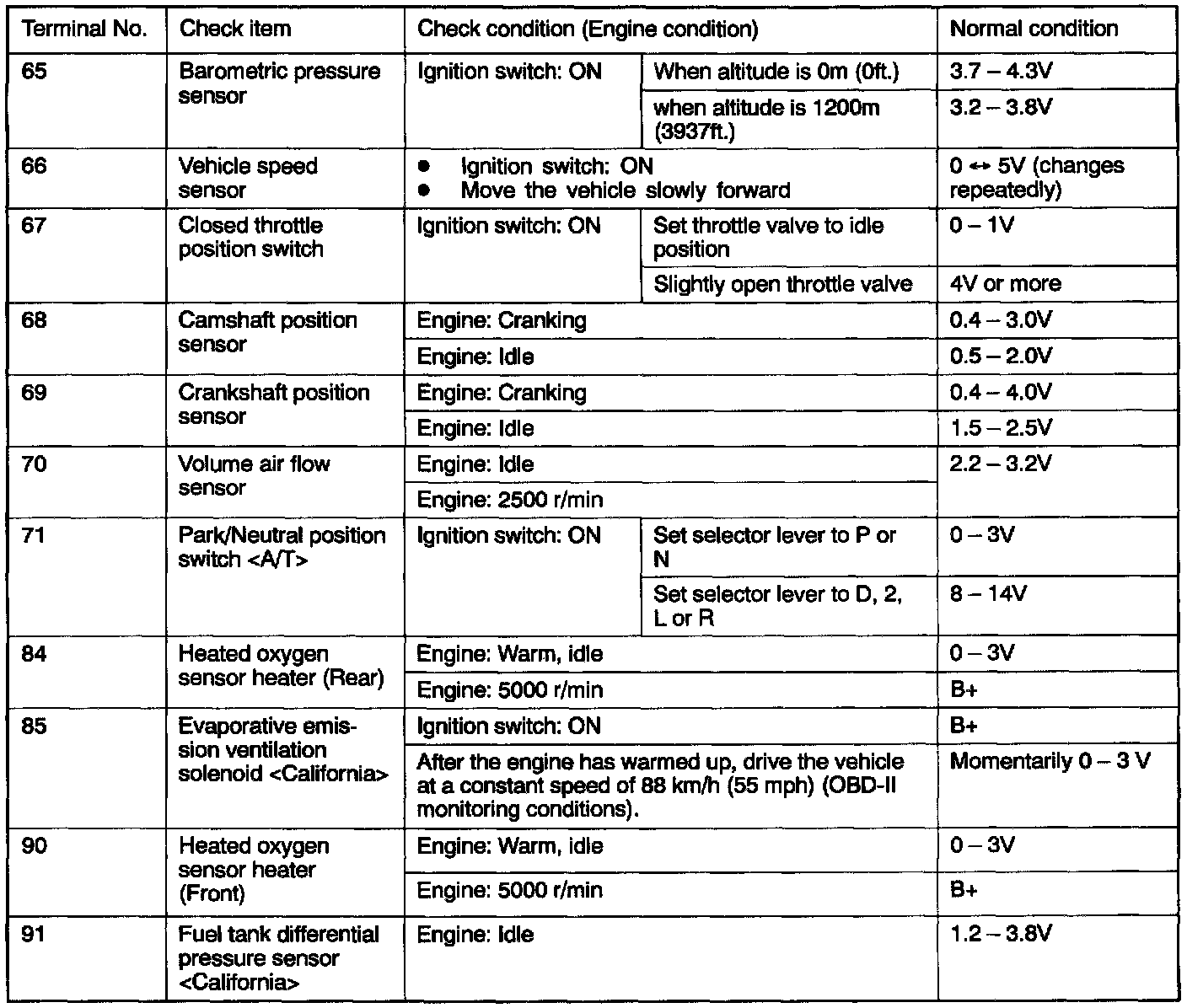

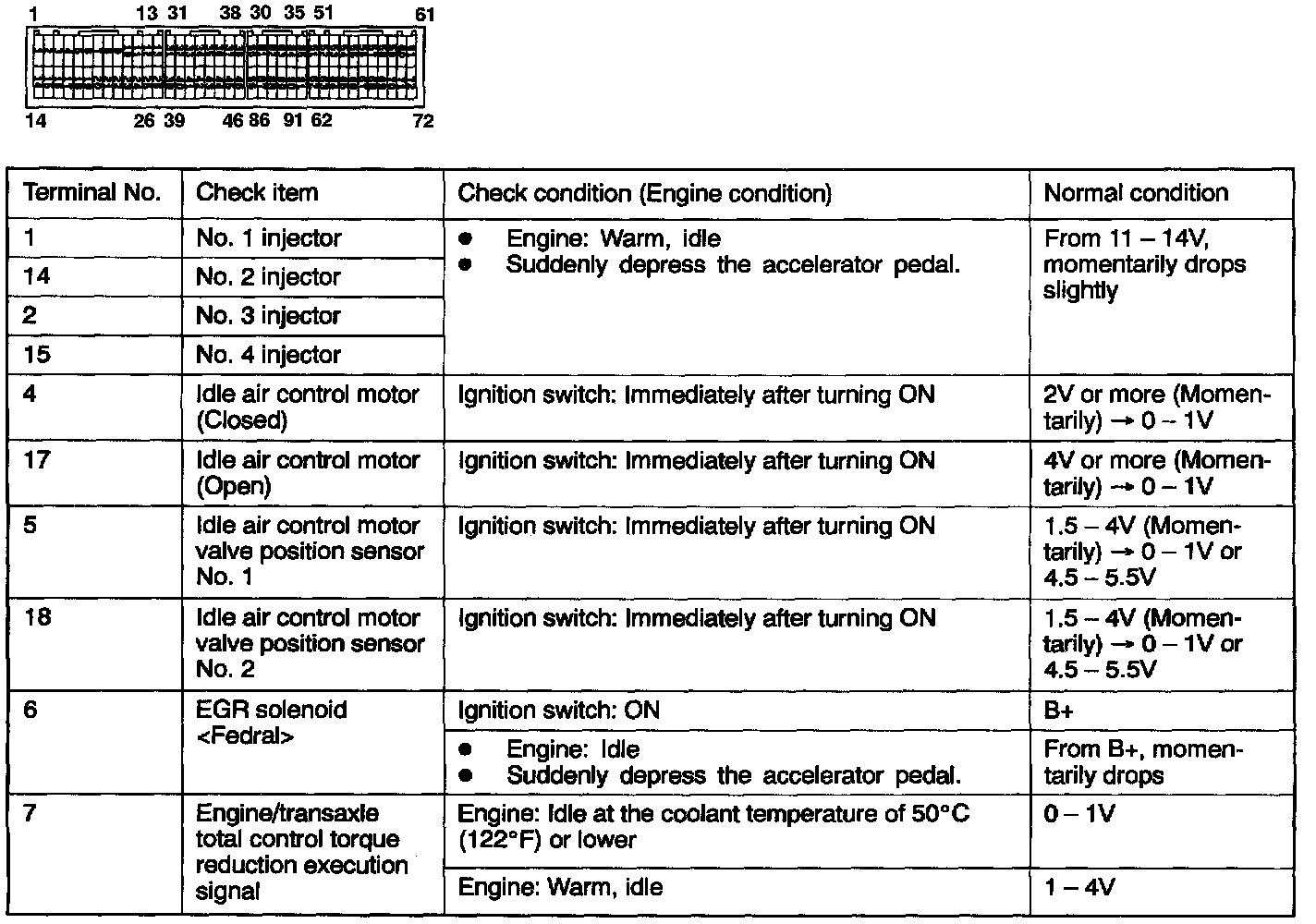

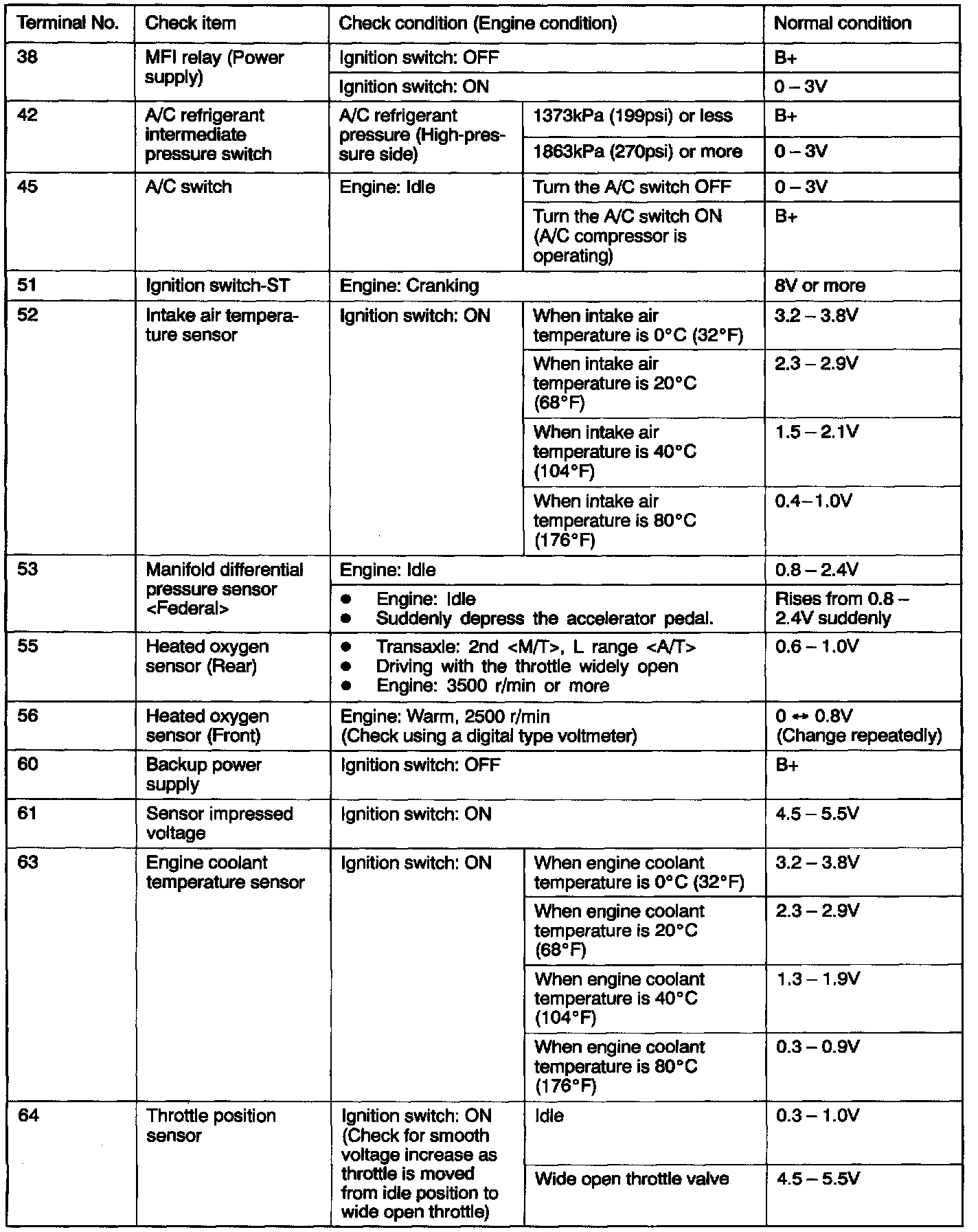

TERMINAL RESISTANCE AND CONTINUITY
