ABS Light: Testing and Inspection

Flashing Pattern:

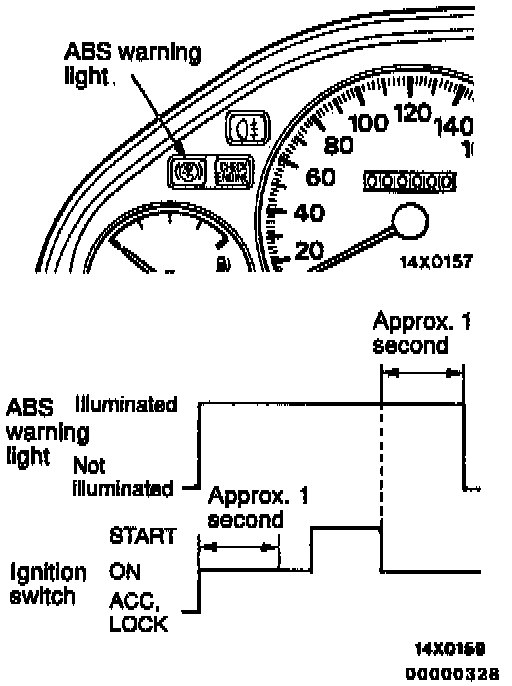

ABS WARNING LIGHT INSPECTION
Check that the ABS warning light illuminates as follows.
1. When the ignition switch is turned to "ON", the ABS warning light illuminate.
2. When the ignition switch is turned to "START" to start the engine, the ABS warning light switch off after approximately 1 second.
3. If the illumination is other than the above, check the diagnostic trouble codes.
