Anti-Lock Braking System (ABS)

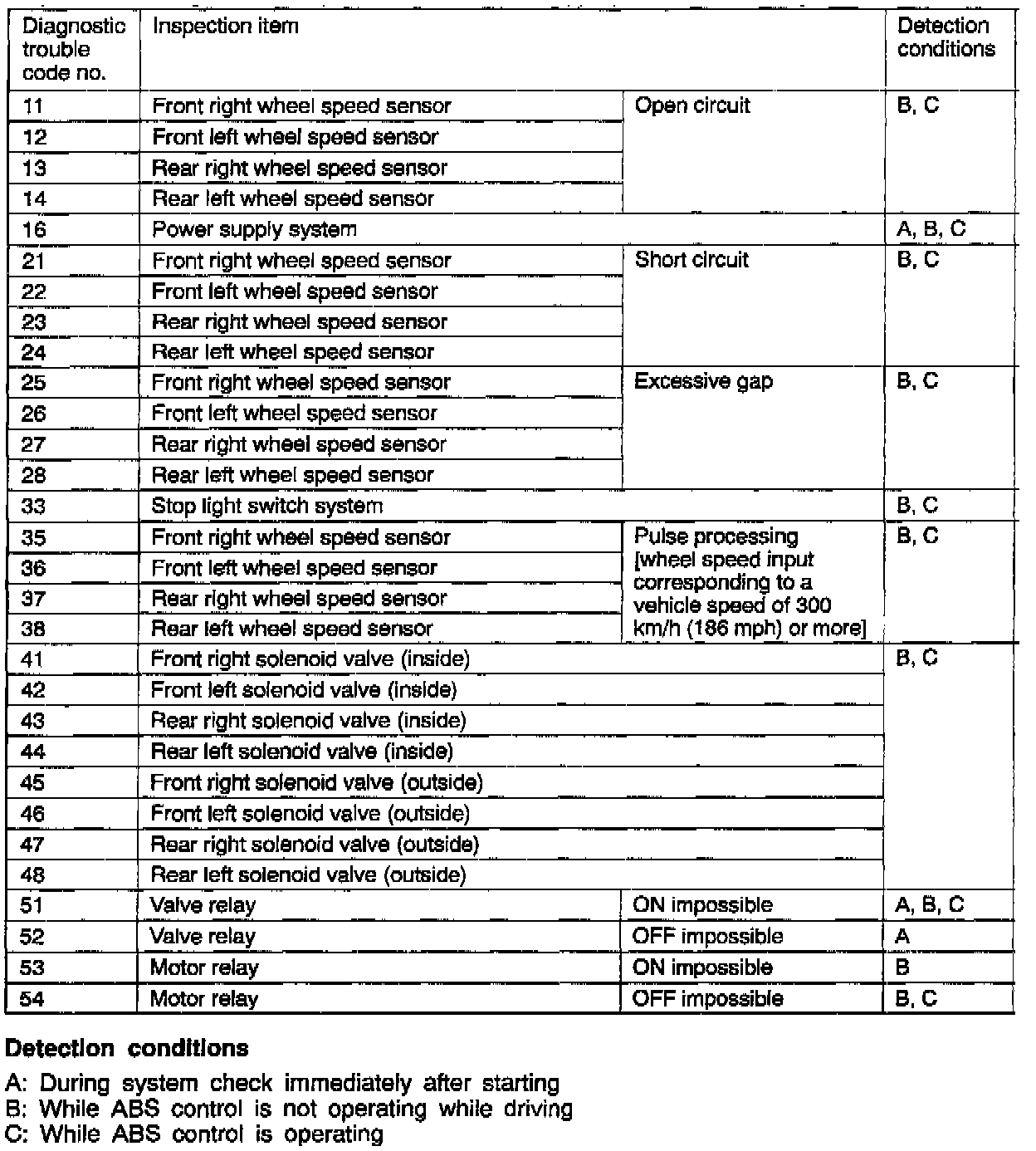

Inspect according to the inspection chart that is appropriate for the diagnostic trouble code.





NOTE: To inspect the harnesses, check if there is any damage to the cables, and flex the cables to check for any open circuits.
