Disassembly and Reassembly

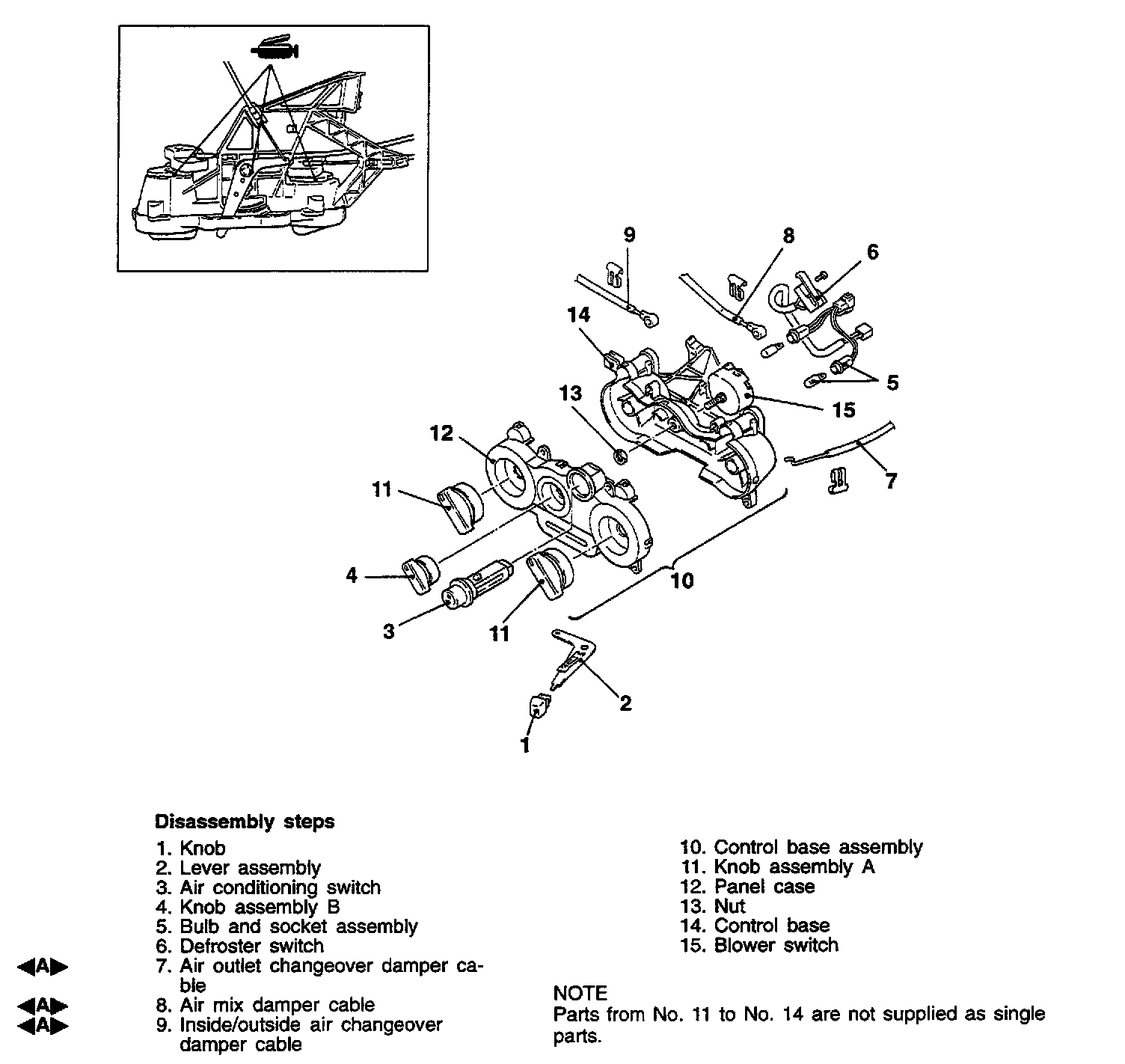

DISASSEMBLY SERVICE POINT

A AIR OUTLET CHANGEOVER DAMPER CABLE AIR MIXING DAMPER CABLE/INSIDE/OUTSIDE AIR CHANGEOVER DAMPER CABLE REMOVAL

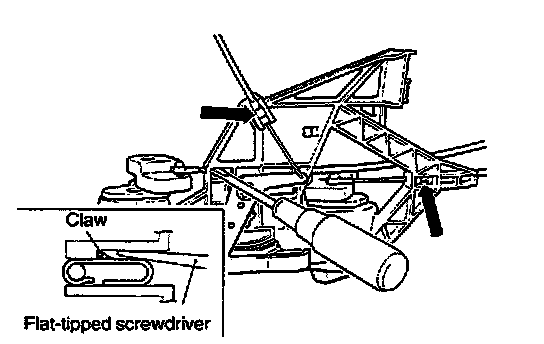

Insert a flat-tipped screwdriver to disengage the claws, and then remove the cables.
