Output Bearing

OUTPUT BEARING
Removal

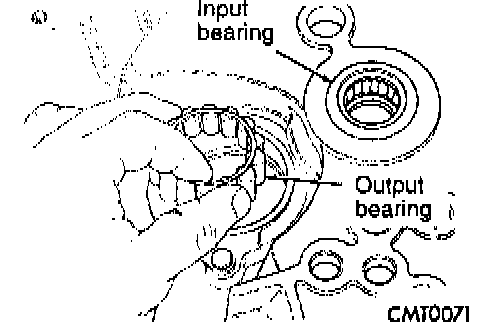

1. Note the position of the output shaft bearing. The bearing is not identical end to end. Remove caged roller bearing from output bearing race.

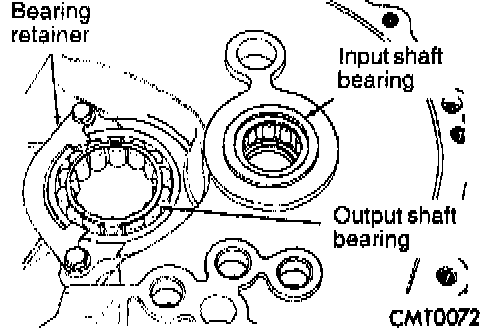

2. Remove screws at output bearing retainer strap.

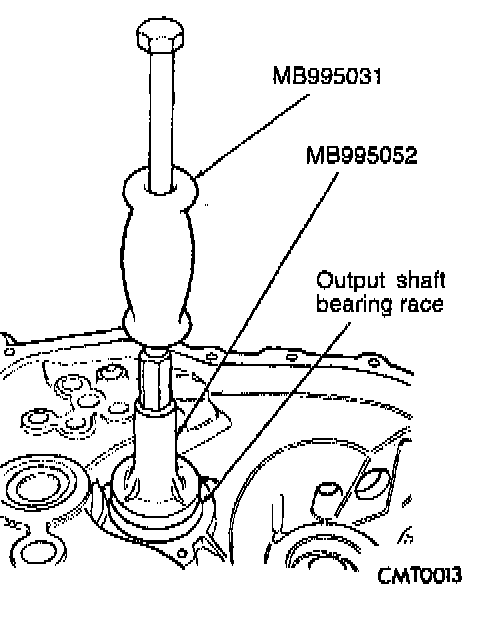

3. Install tool MB995031, MB995052. Tighten tool to output bearing race.

Installation





1. Line up output bearing race to race bore.

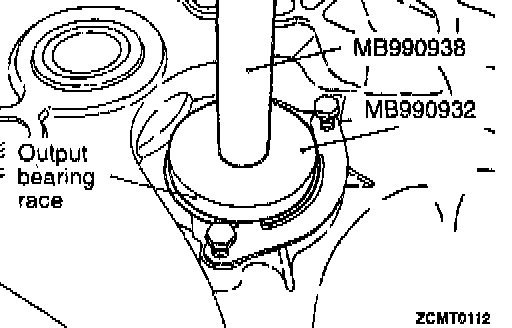

2. Insert tool MB9930933, MB990938 into output bearing race. Tap race into bore. Position bearing retaining strap. Tighten bolts to 11 Nm (9.6 ft. lbs.).
