Output Speed Sensor

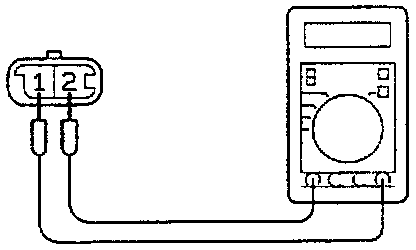

1. Disconnect the output speed sensor connector.
2. Measure the resistance between the input speed sensor side connector terminals 1 and 2.
Standard value: 0.3-1.2 K Ohm
3. If the resistance is outside the standard value, replace the Output speed sensor.
