Transmission Mount: Service and Repair

REMOVAL
Pre-removal Operation:
- Air Cleaner Assembly Removal.
- Battery Removal.
- Engine Roll Stopper, Centermember Assembly Removal.

Follow removal steps outlined in illustration.

Removal Service Point





Transaxle Mount Bracket Removal.

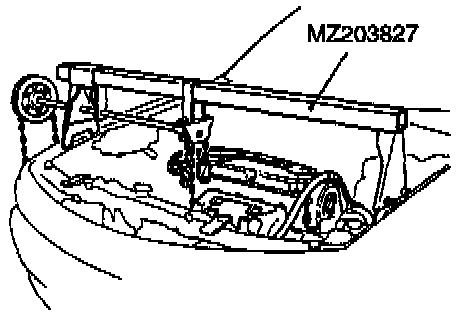

Slightly lower the transaxle, and then remove the transaxle mount bracket.

INSTALLATION
Installation in reverse order as removal.

Installation Service Point

>A< Transaxle Mount Stopper Installation.

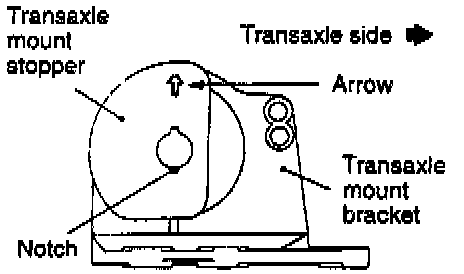

Align the notches on the stopper with the transaxle mount bracket with the arrow mark facing toward the shown direction. Then install the stopper.

Post-installation Operation:
- Air Cleaner Assembly Removal.
- Batter Installation.
- Engine Roll Stopper, Centermember Assembly Installation.

INSPECTION
- Check each insulator for cracks or damage.
- Check each bracket for deformation or damage.
