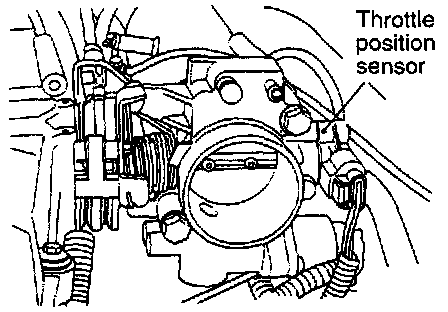

Throttle Position Sensor Check

1. Disconnect the throttle position sensor connector.




2. Measure the resistance between the throttle position sensor side connector terminal 1 and terminal 3.

Standard value: 3.5-6.5 kohms




3. Measure the resistance between the throttle position sensor side connector terminal 2 and terminal 3.




4. If the resistance is outside the standard value, or if it doesn't change smoothly, replace the throttle position sensor.
