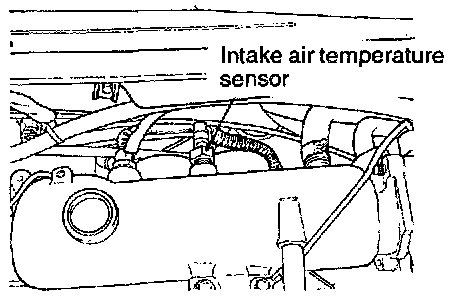

Intake Air Temperature Sensor

1. Disconnect the intake air temperature sensor connector.




2. Measure the resistance between the sensor terminals.

INSTALLATION
1. Apply sealant to threaded portion

Specified sealant: Loctite 24200 or equivalent

2. Install intake air temperature sensor and tighten it to specified torque.

Sensor tightening torque: 7 Nm (5 ft.lbs.)

3. Fasten harness connectors securely.
