Power Steering Line/Hose: Service and Repair

Pre-removal Operation
1. Drain power steering fluid.
2. Remove front bumper.
3. Remove washer tank.

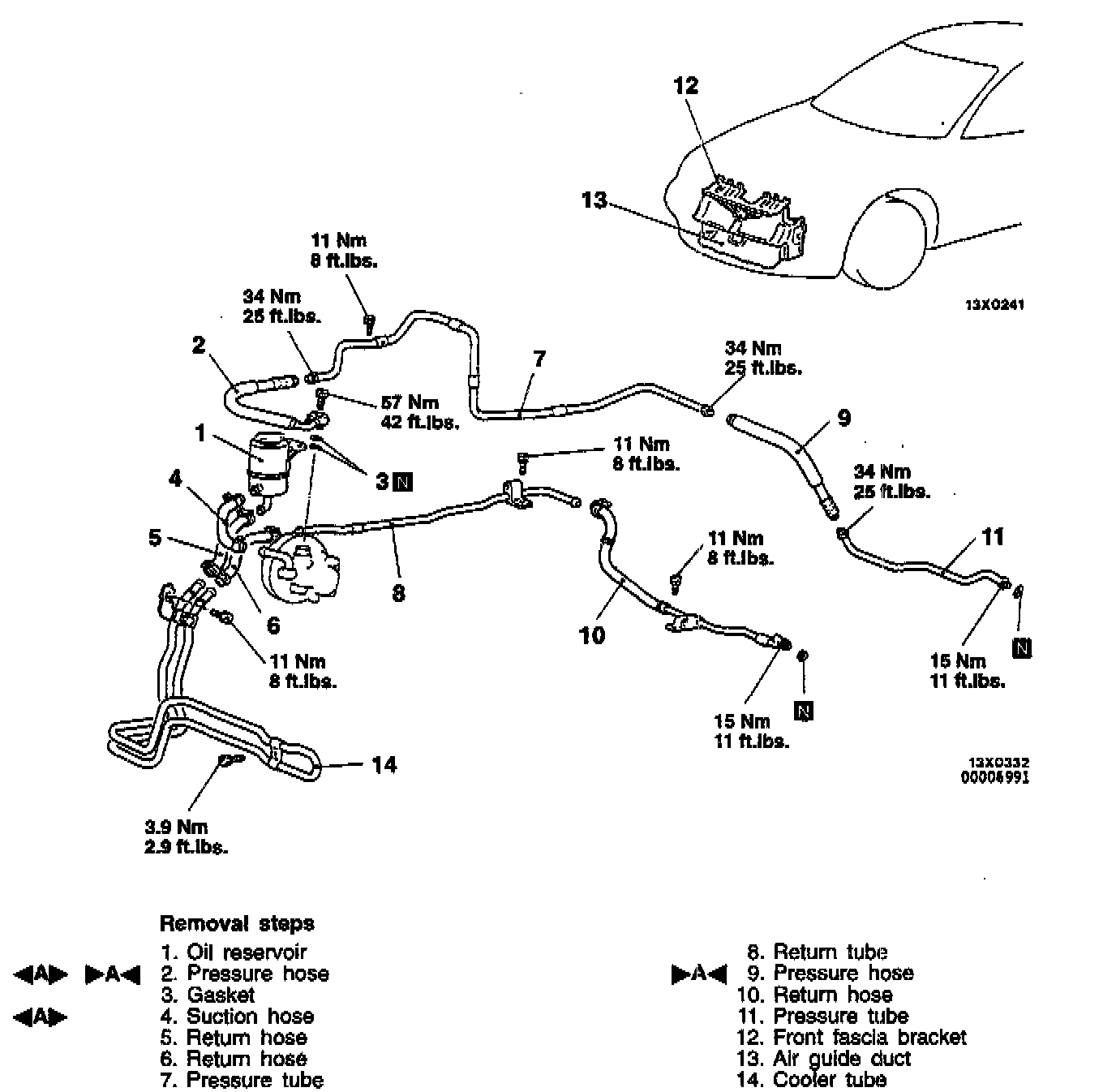

4. Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.





Removal Service Points

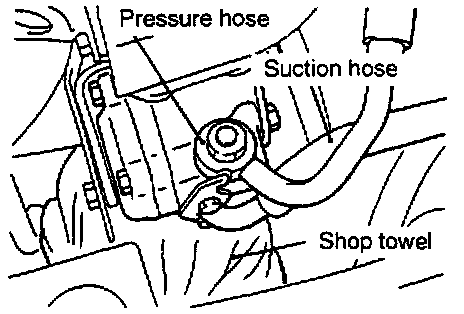

[A] Pressure Hose/Suction Hose Removal (2 & 4).

CAUTION: A/C compressor is below the oil pump, so cover the A/C compressor with a shop towel before removing any hose.





Installation Service Points
]A[ Pressure Hose Installation (2 & 9).

When the pressure hose is installed, align the white line on the pressure hose with the white line on the pressure tube so that together they form a straight line.

Post-installation Operation
1. Install front bumper.
2. Install washer tank.
3. Fill power steering fluid.
4. Power steering fluid line bleeding. Service and Repair
