REMOVAL SERVICE POINT

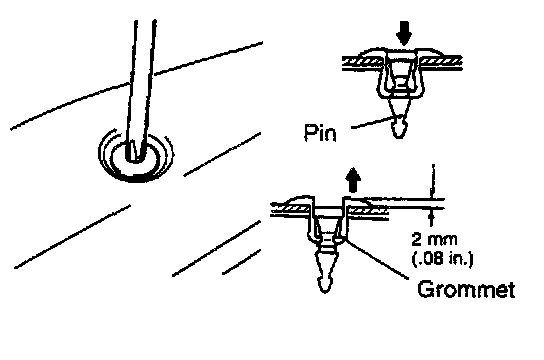

A CLIP REMOVAL
1. Use a Phillips-head screwdriver to push inward the pin (at the center of the clip) to a depth of about 2 mm (.08 in.).
2. Pull the clip outward to remove it.

CAUTION: Do not push the pin inward more than necessary because it may damage the grommet, or the pin may fall in, if pushed too far.

INSTALLATION SERVICE POINT
A COOLING UNIT INSTALLATION
When replacing the cooling unit with new one, refill the evaporator with a specified amount of compressor oil.
Compressor oil: ND.OIL 8
Quantity: 40 cu cm (1.35 fl.oz)

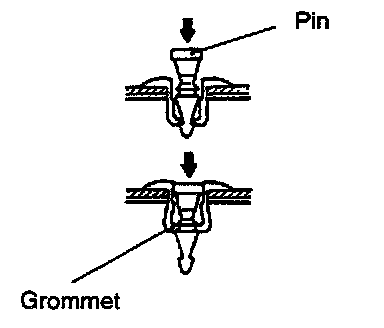

B CLIP INSTALLATION
1. With the pin pulled out, insert the clip into the hole.
2. Push the pin inward until the pin's head is flush with the grommet.
