Home
>>
Mitsubishi
>>
1998
>>
Eclipse GS L4-1997cc 2.0L DOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Lighting and Horns
>>
System Diagram
>>

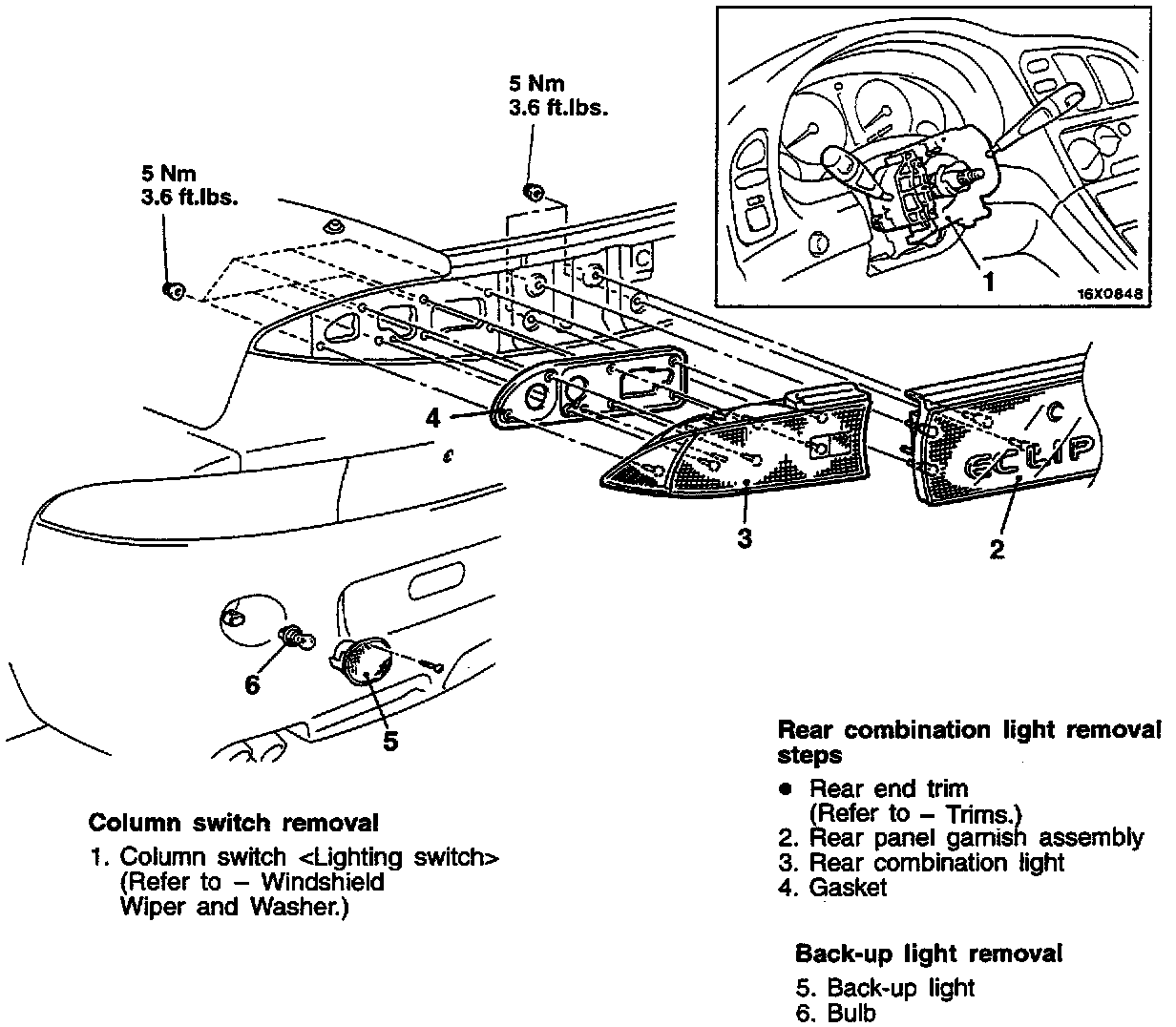

Rear Combination and Back-Up Light
Rear Combination and Back-Up Light
