Brake Pedal Assy: Service and Repair

REMOVAL

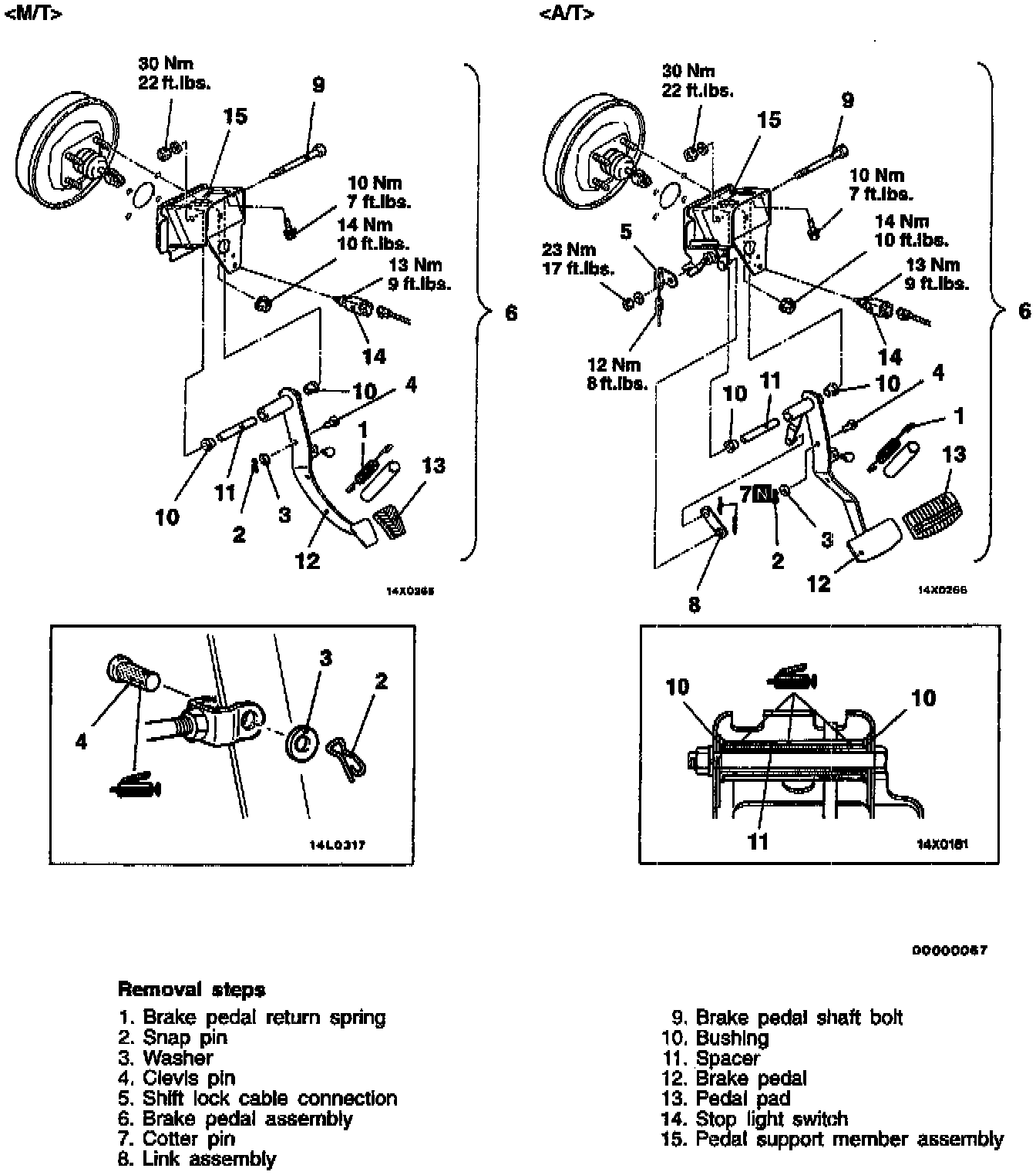

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Post-installation Operation:
- Brake Pedal Adjustment.
