Spark Plug Cable Resistance Check
Spark Plug Cable Resistance Check
SPARK PLUG CABLE RESISTANCE CHECK

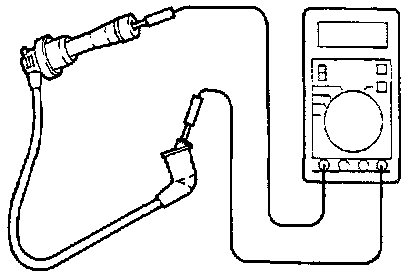

Measure the resistance of all the
spark plug
leads.
1.
Check cap and coating for cracks.
2.
Measure resistance
Limit: Maximum 22 K Ohm
