Transmission Control System Relay: Locations

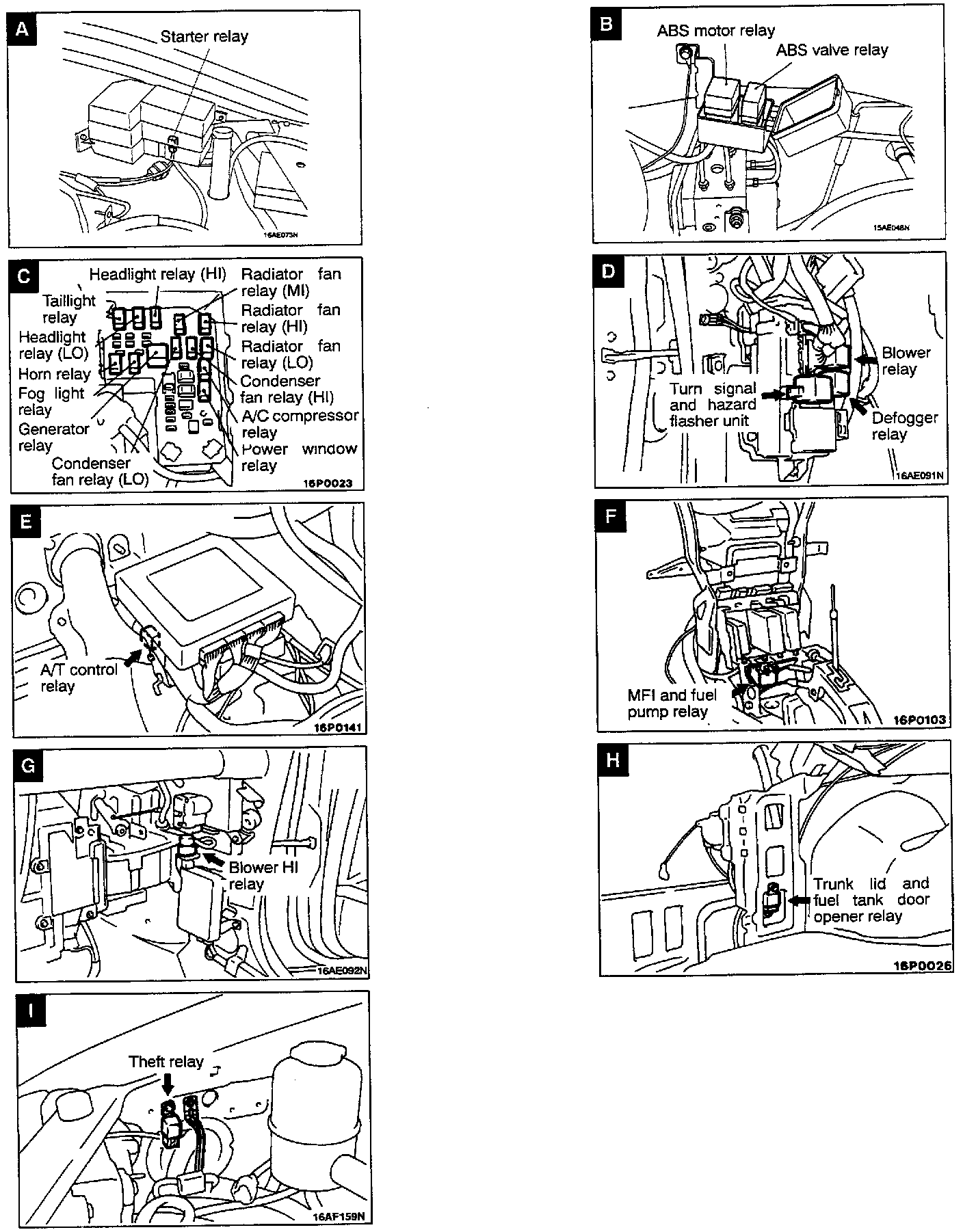

Relay Locations Overall View:




Relay Location Views A - H:





Relay View
A/C control relay E
