Fail-Safe Function Reference Table

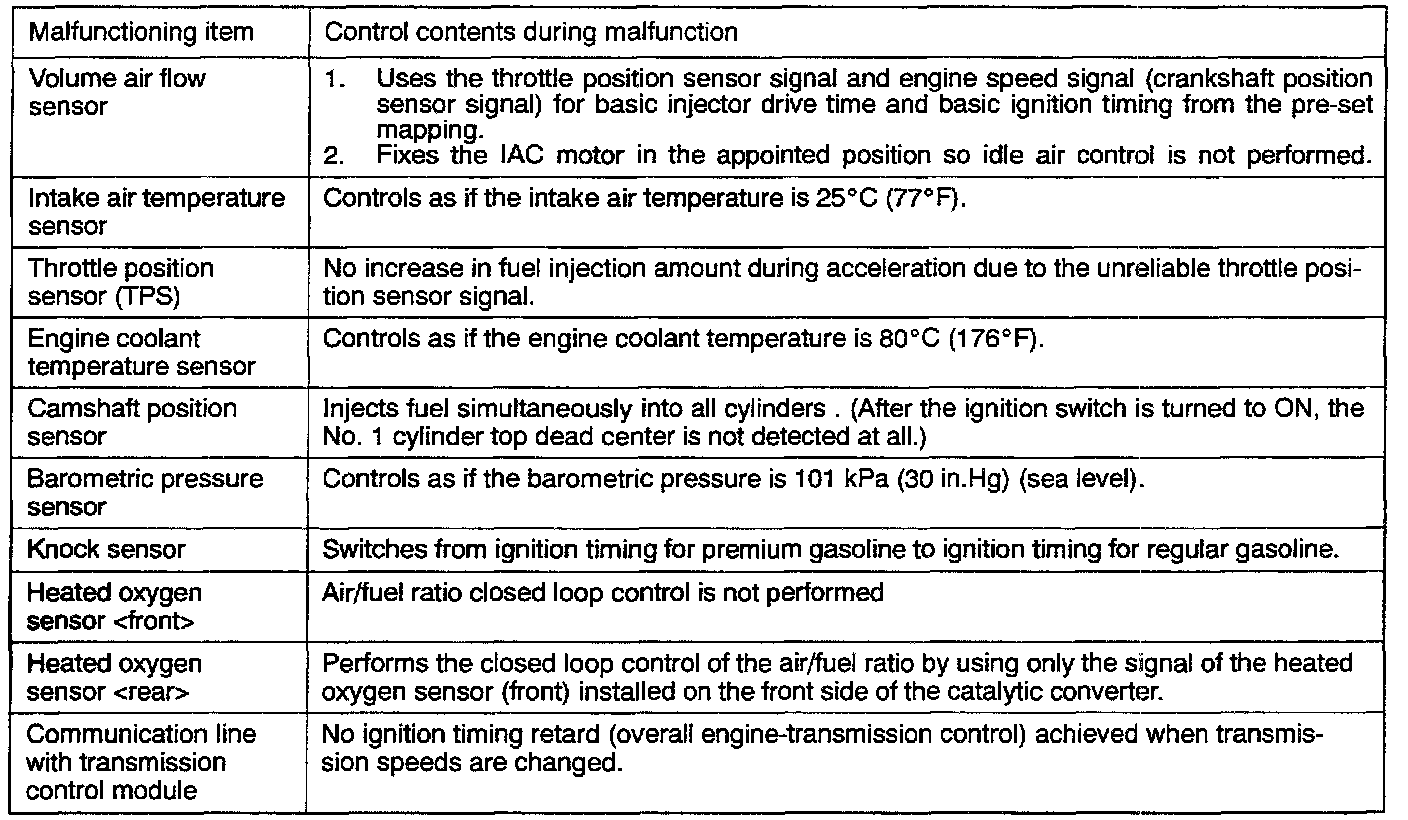

FAIL-SAFE/BACKUP FUNCTION TABLE




When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the defaults listed in the above image.
