Disassembly and Reassembly

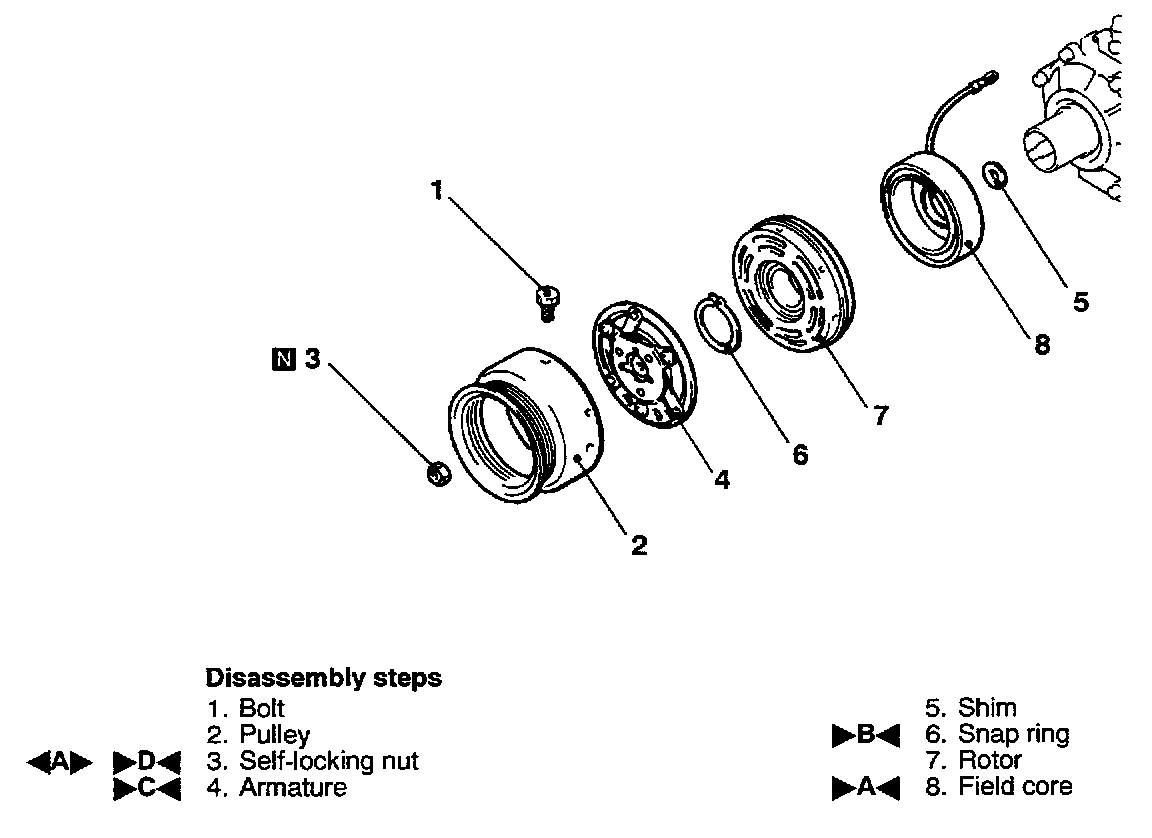

DISASSEMBLY SERVICE POINTS

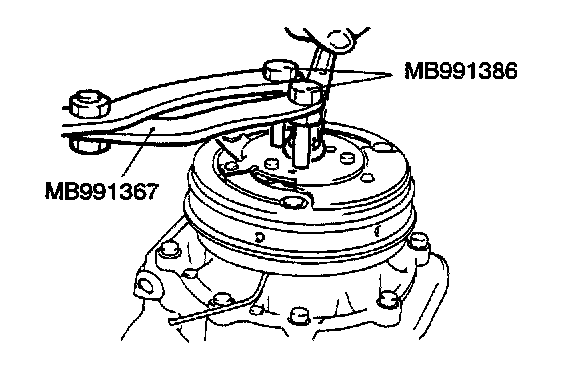

NUT REMOVAL

REASSEMBLY SERVICE POINTS

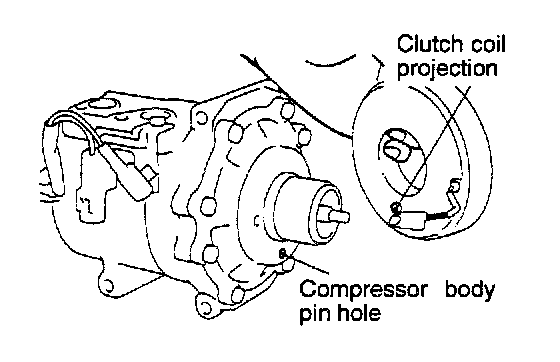

>A< CLUTCH COIL INSTALLATION
When installing the clutch coil to the A/C compressor body, install so that the pin hole of the A/C compressor body and the clutch coil projection are aligned.




>B< SNAP RING INSTALLATION
Install the snap ring so that the tapered surface is at the outer side.

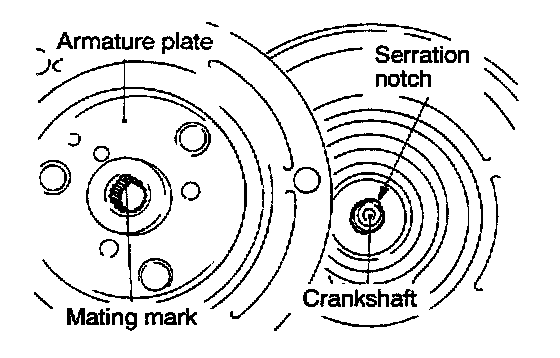

>C< ARMATURE PLATE INSTALLATION
Align the mating mark of the crankshaft spline and the mating mark of the armature plate, and then fit them together.

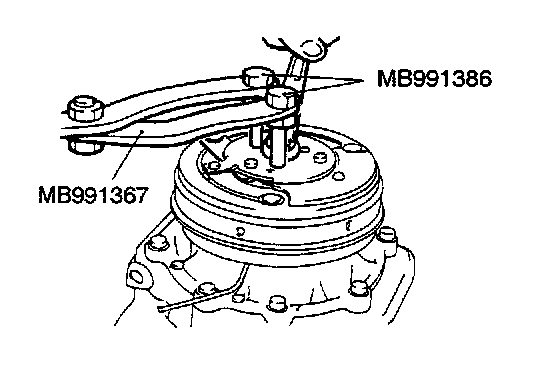

>D< NUT INSTALLATION




1. Install the nut.

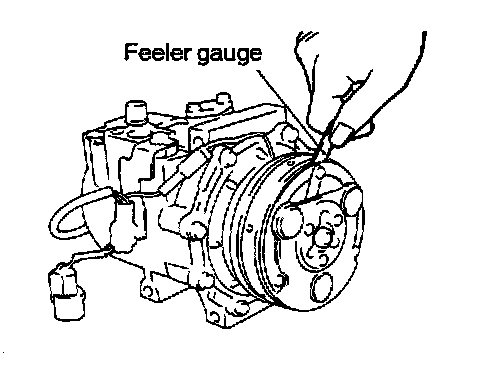

2. Check whether or not the air gap of the clutch is within the standard value.
Standard value: 0.4 - 0.65 mm (0.02 - 0.03 in.)

NOTE: If there is a deviation of the air gap from the standard value, make the necessary adjustment by adjusting the number of shims.
