Engine Assembly Removal and Installation

REMOVAL
Pre-removal Operation:
- Hood Removal.
- Air Cleaner Removal.
- Drainage of Coolant.
- Radiator Removal.
- Fuel Flow Prevention.
- Drainage of Power Steering Fluid.
- Front Exhaust Pipe.
- Washer Tank Removal.
- Engine Cover Removal.
- Transaxle Assembly Removal.

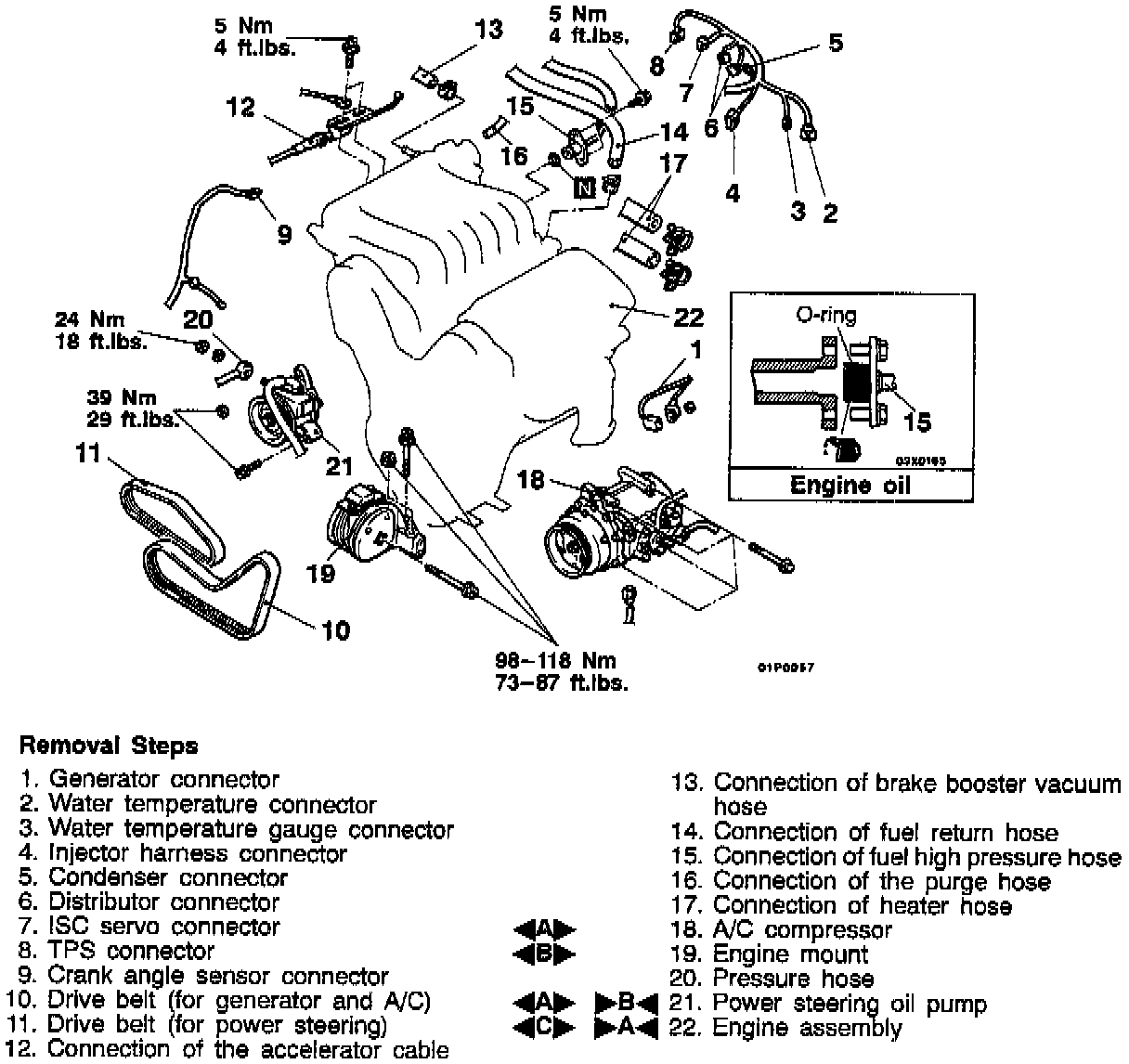

Follow removal steps outlined in illustration.

Removal Service Points
[A] Compressor (A/C) /Oil Pump (Power Steering) Removal.

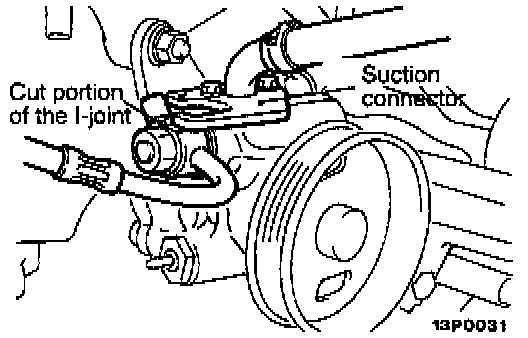

Remove the oil pump and air conditioning compressor (with the hose attached).

NOTE: Suspend the removed compressor and oil pump (by using wire or similar material) at a place where, be caused during removal/installation of the engine assembly.





[B] Engine Mount Bracket.

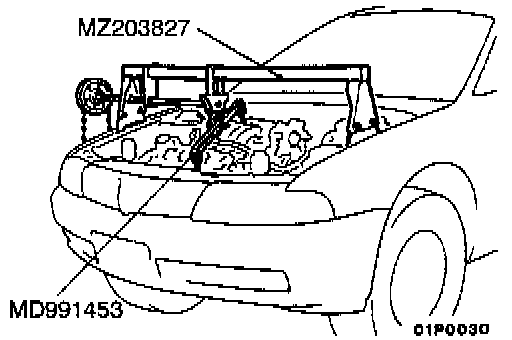

1. Place a garage jack against the engine oil pan through a square bar so that the weight of the engine is not placed on the engine mount bracket.
2. Remove the special tool (used during removal of the transmission assembly).
3. Hold the engine assembly with a chain block.
4. Detach the engine mount bracket.

[C] Engine Assembly Removal.
1. Check that all cables, hoses, harness connectors, etc. are disconnected from the engine.
2. Lift the chain block slowly to remove the engine assembly upward from the engine compartment.

INSTALLATION
Installation in reverse order as removal.

Installation Service Points

]A[ Engine Assembly Installation.
Install the engine assembly. When doing so, check carefully that all pipes and hoses are connected, and that none are twisted, damaged, etc.





]B[ Apply a small amount of new engine oil to the o-ring.

Post-installation Operation:
- Transaxle Installation.
- Engine Cover Installation.
- Washer Tank Installation.
- Front Exhaust Pipe Installation.
- Filling with Power Steering Fluid.
- Radiator Installation.
- Filling with Coolant.
- Air Cleaner Installation.
- Accelerator Cable Adjustment.
- Hood Installation.
