System Diagram

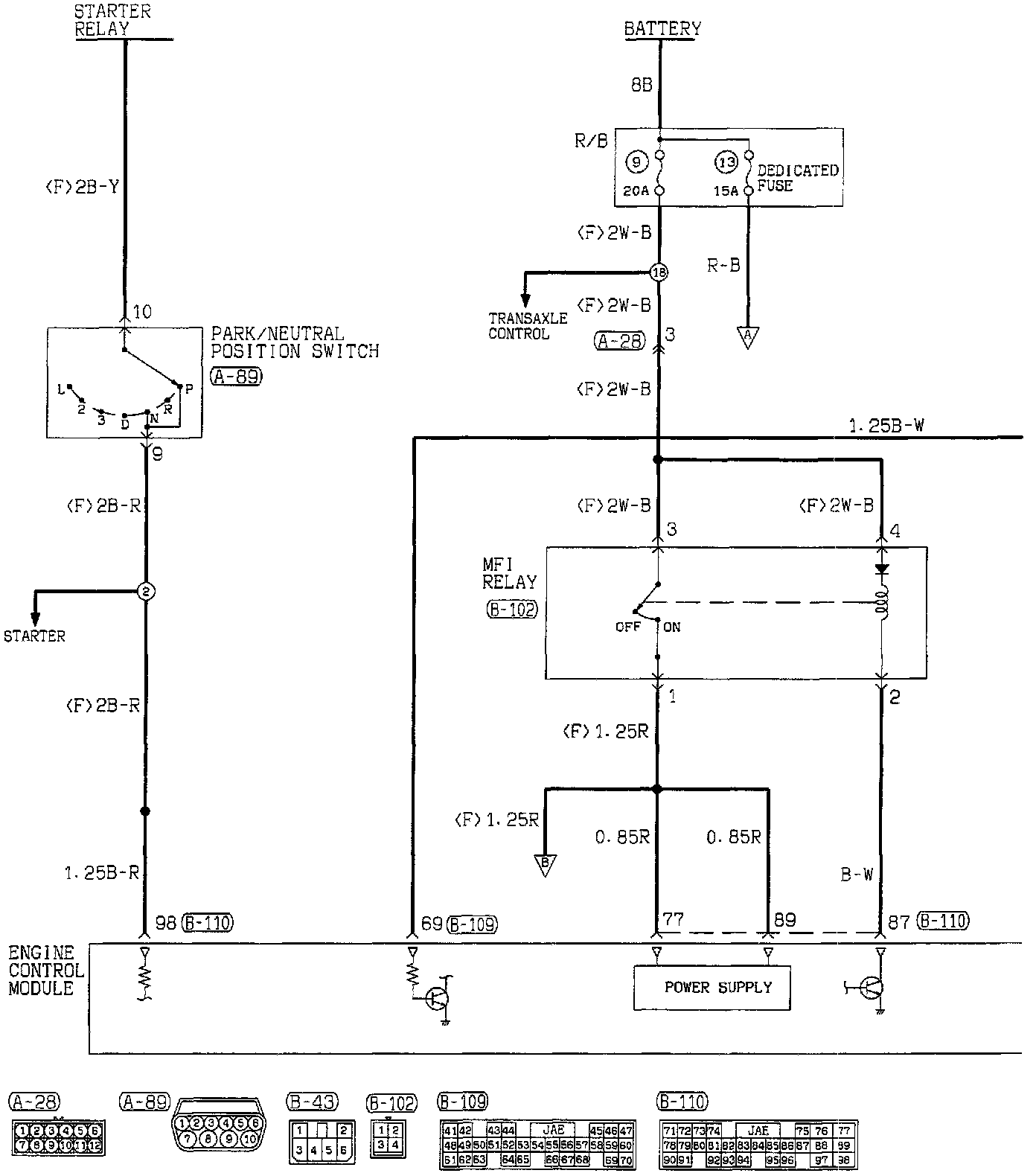

MFI System (Part 1 Of 7):

Engine Control Module
- Power Supply
MFI Relay
Park/Neutral Position Switch
R/B

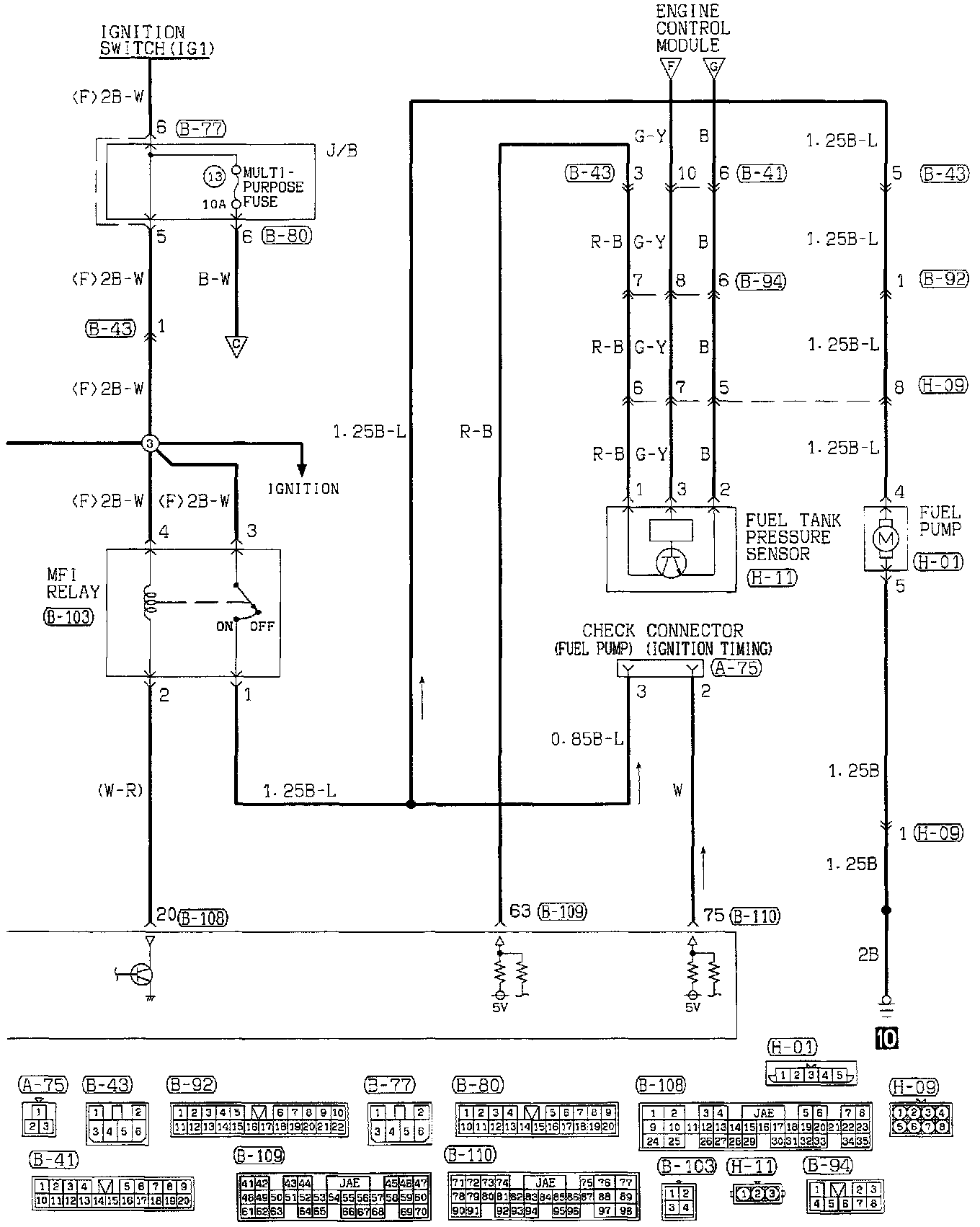

MFI System (Part 2 Of 7):

Engine Control Module
Fuel Pump
Fuel Tank Pressure Sensor
J/B
MFI Relay

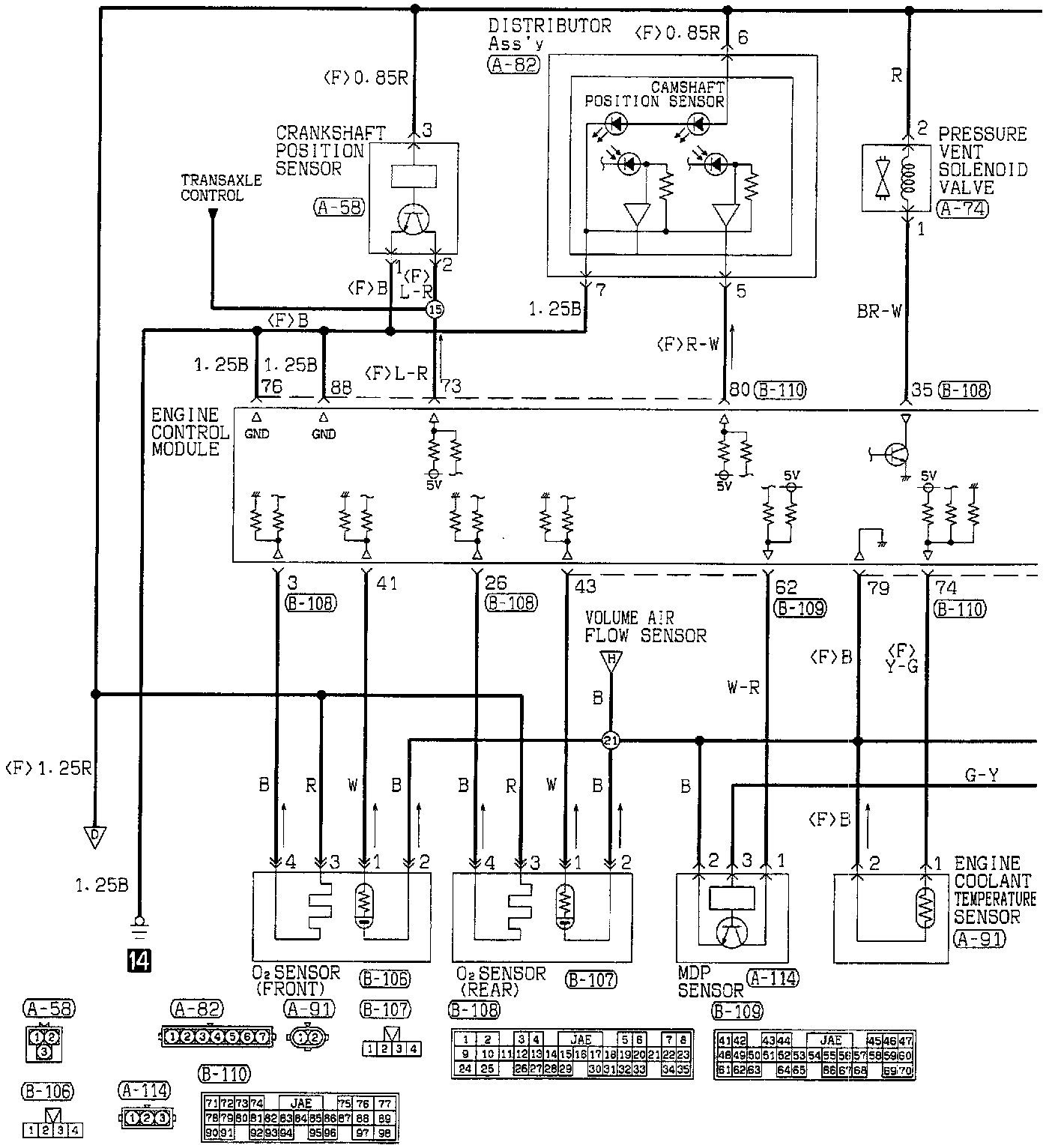

MFI System (Part 3 Of 7):

Crankshaft Position Sensor
Distributor Assembly
- Camshaft Position Sensor
Engine Control Module
Engine Coolant Temperature Sensor
MDP Sensor
Oxygen Sensor(Front)
Oxygen Sensor (Rear)
Pressure Vent Solenoid Valve

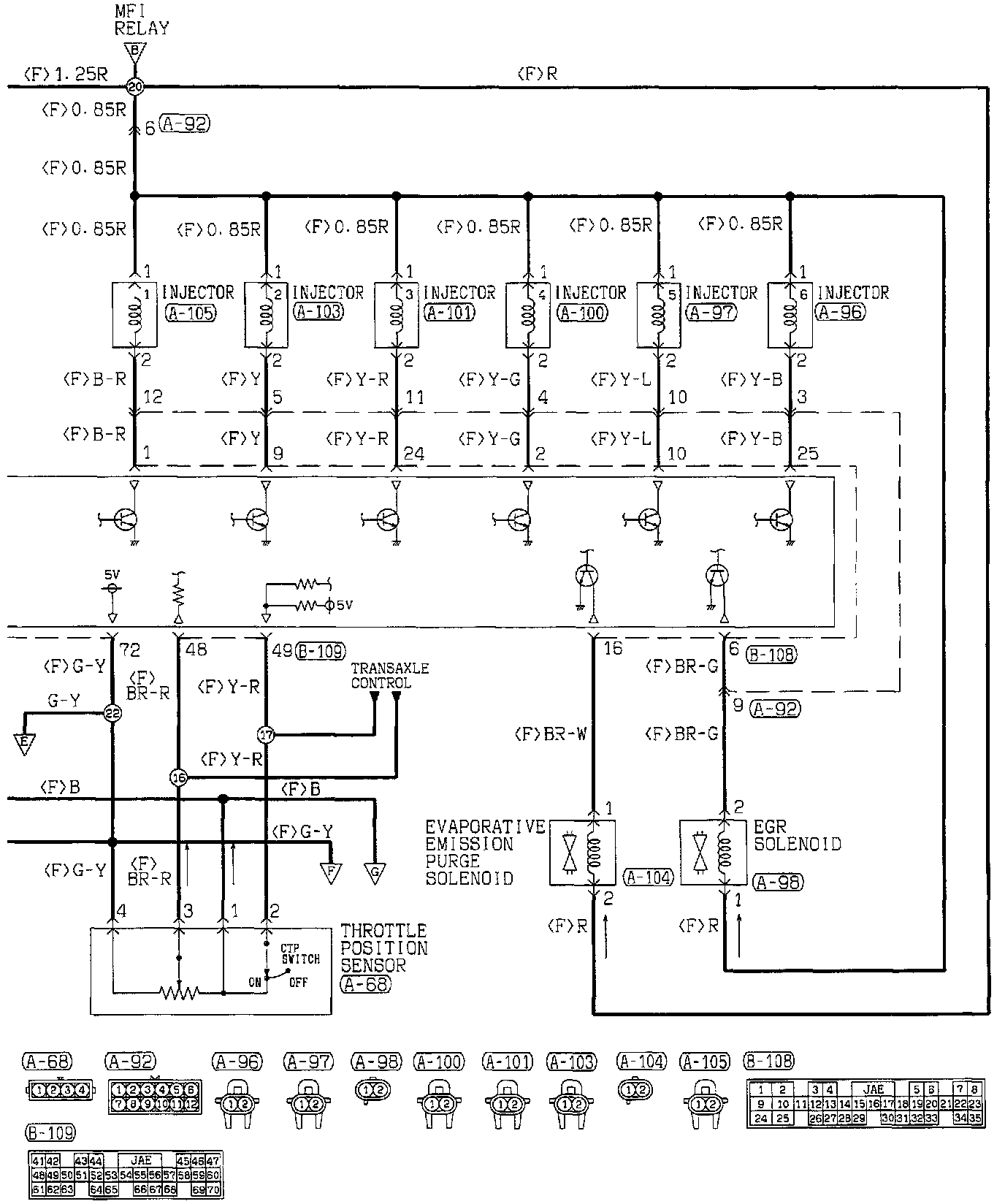

MFI System (Part 4 Of 7):

EGR Solenoid
Engine Control Module
Evaporative Emission Purge Solenoid
Fuel Injectors
Throttle Position Sensor

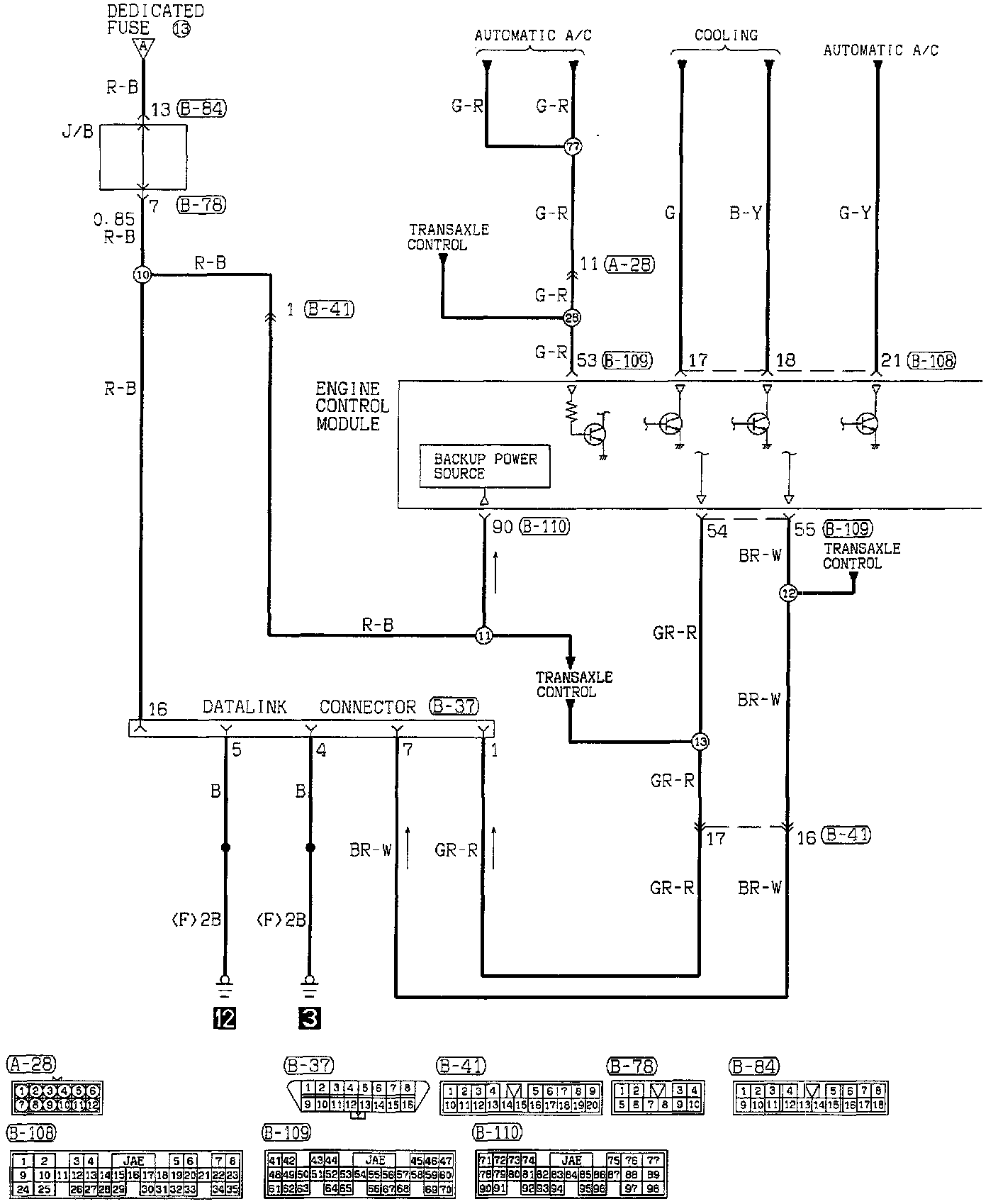

MFI System (Part 5 Of 7):

Data Link Connector
Engine Control Module
- Backup Power Source
J/B

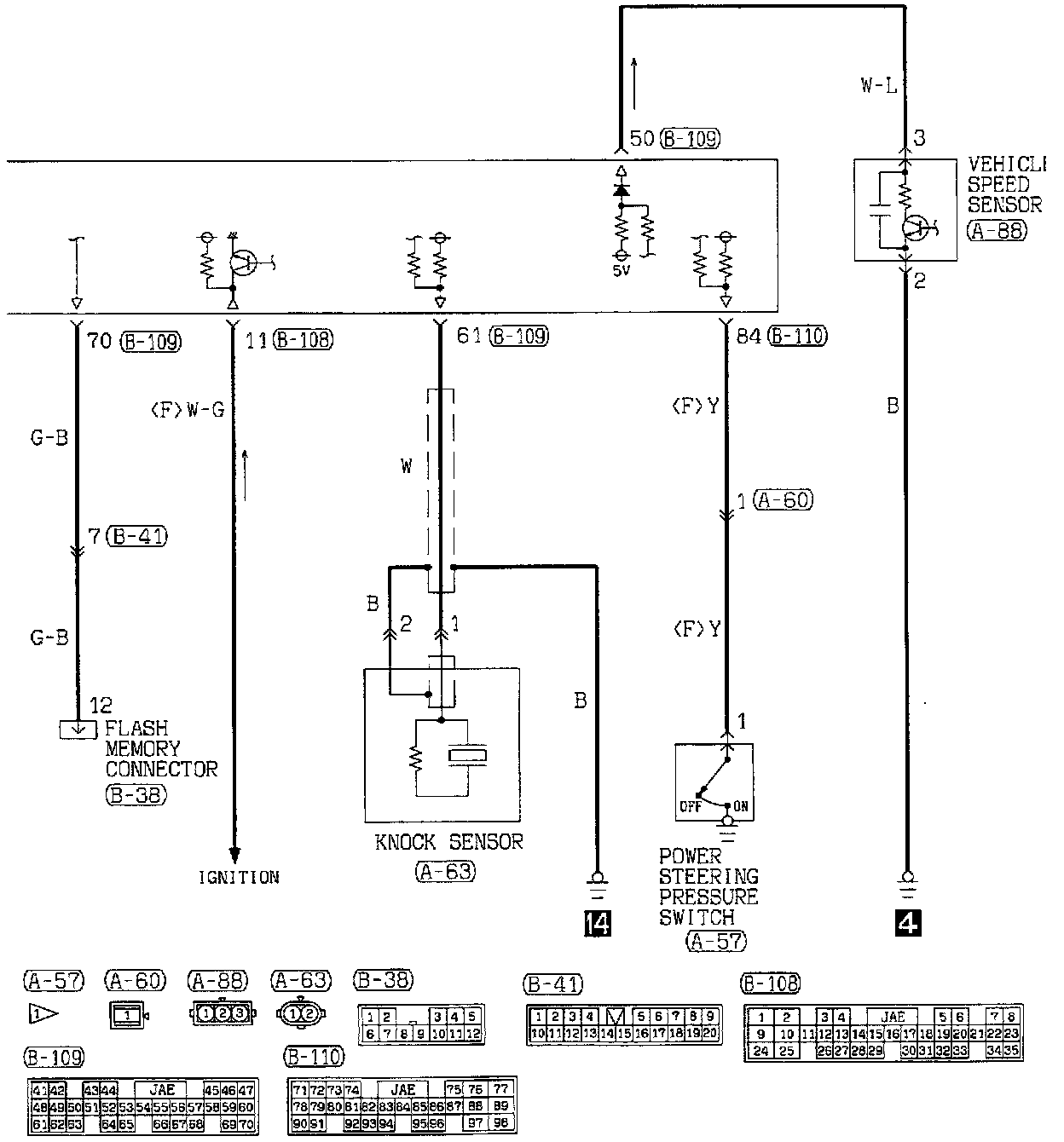

MFI System (Part 6 Of 7):

Engine Control Module
Knock Sensor
Power Steering Pressure Switch
Vehicle Speed Sensor

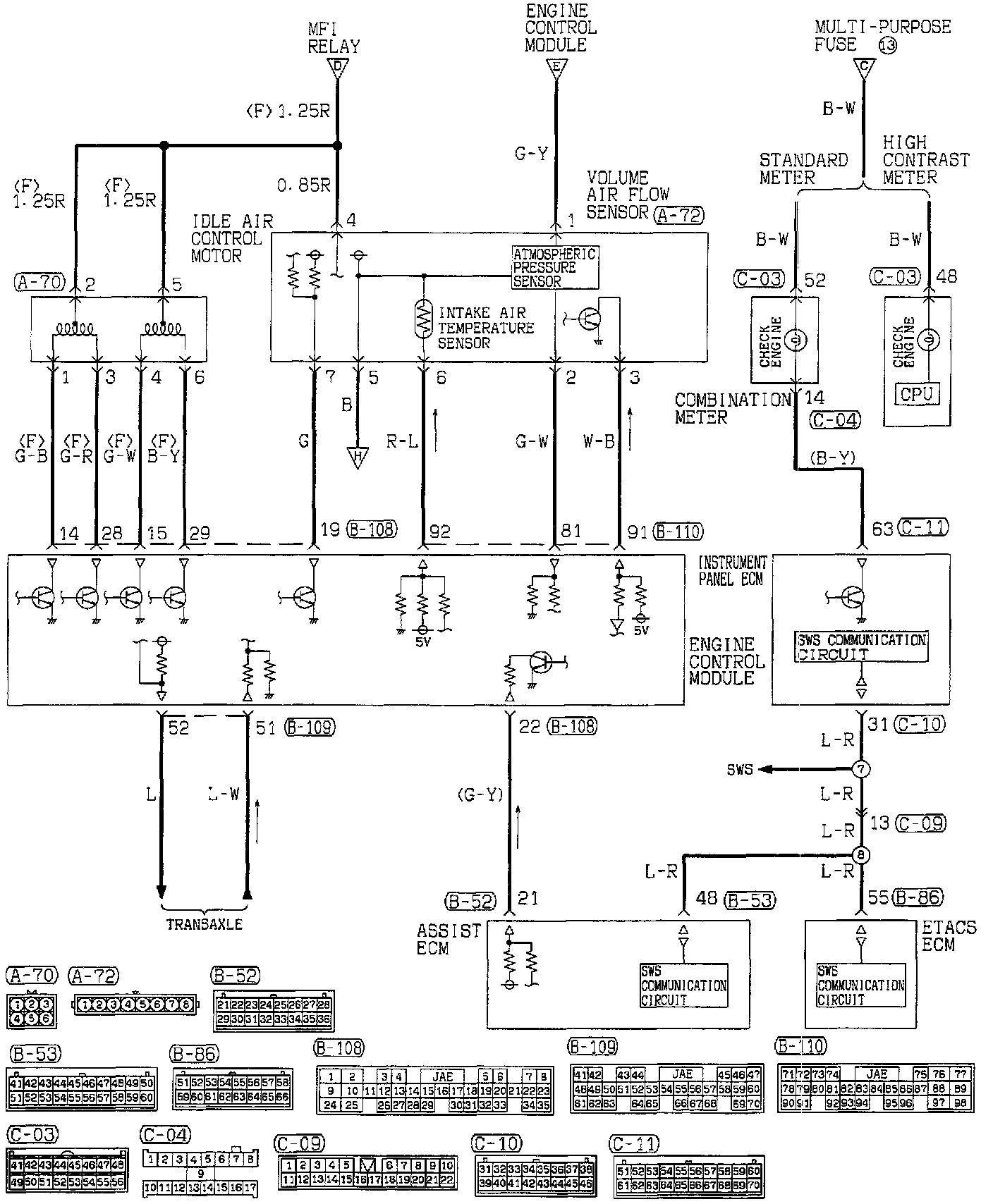

MFI System (Part 7 Of 7):

Assist ECM
Combination Meter
Engine Control Module
ETACS ECM
Idle Air Control Motor
Instrument Panel ECM
Volume Air Flow Sensor
- Atmospheric Pressure Sensor
