Map Light

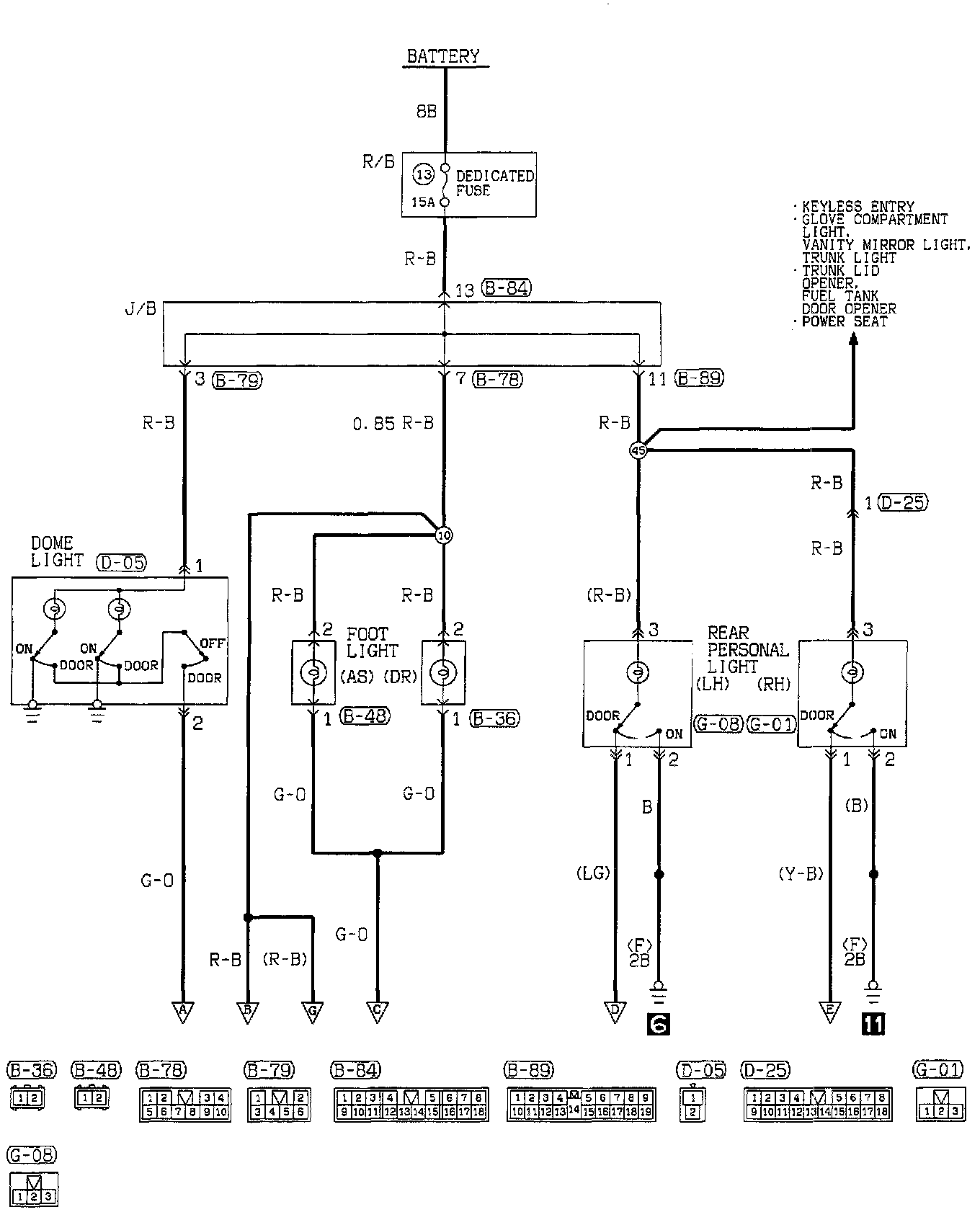

Dome Light, Personal Light And Foot Light (Part 1 Of 3):

Dome Light
Foot Light (AS & DR)
R/B
Rear Personal Light(LH & RH)

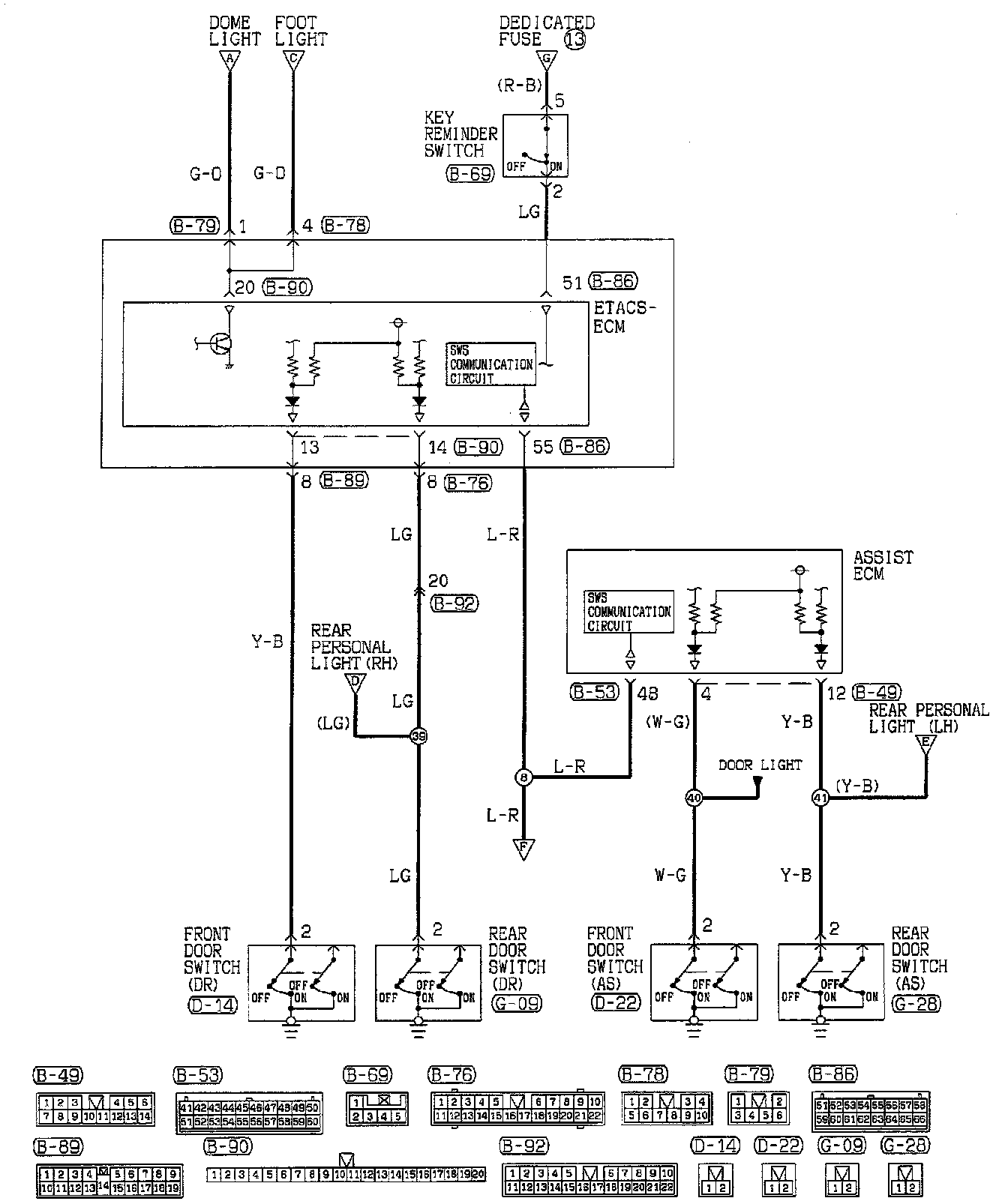

Dome Light, Personal Light And Foot Light (Part 2 Of 3):

Assist ECM
Front Door Switch (DR)
Front Door Switch (AS)
Key Reminder Switch
Rear Door Switch (DR)
Rear Door Switch (AS)

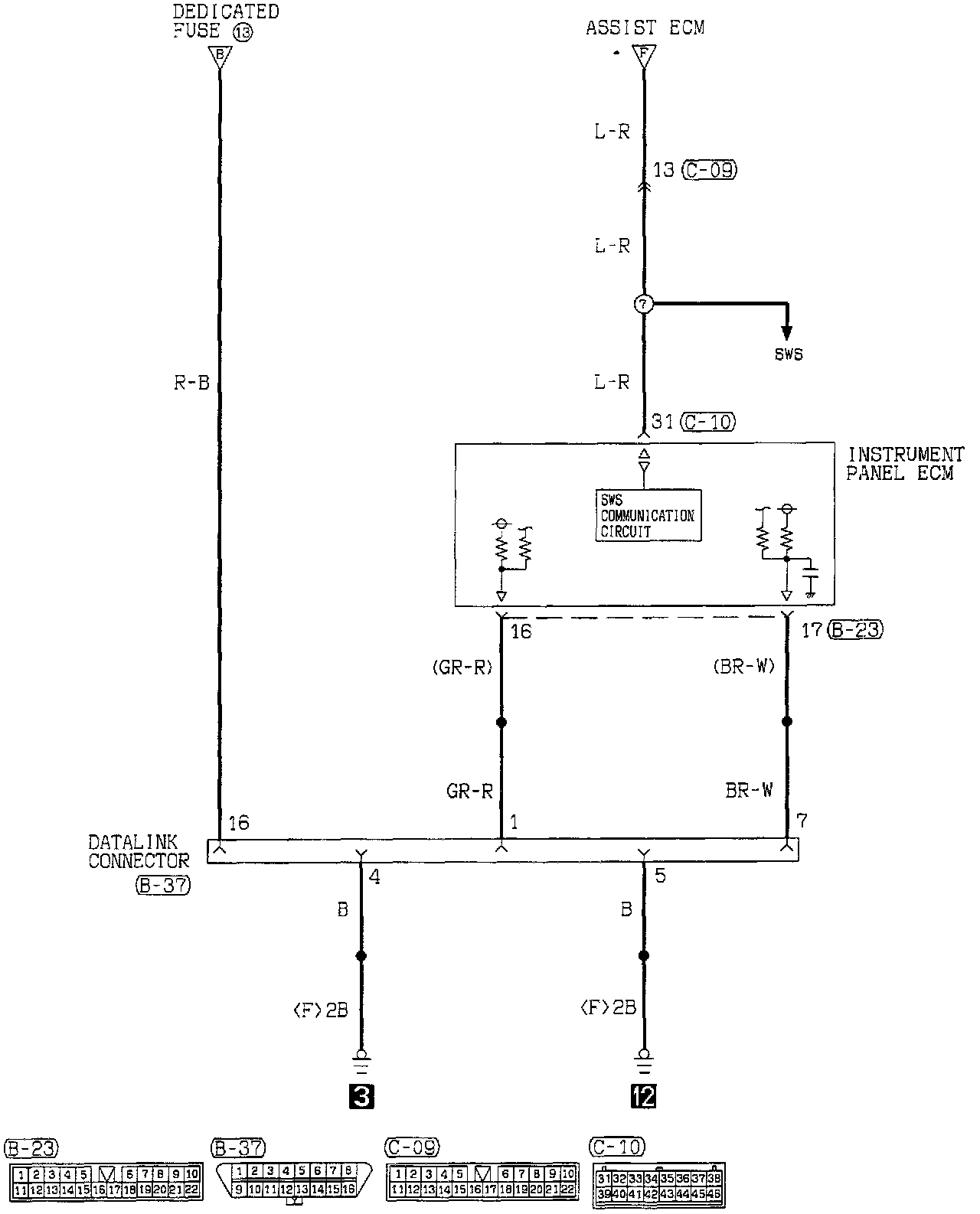

Dome Light, Personal Light And Foot Light (Part 3 Of 3):

Datalink Connector
Instrument Panel
