Brake Proportioning/Combination Valve: Service and Repair

REMOVAL
Pre-removal Operation:
- Brake Fluid Draining.
- Air Intake Hose Removal.

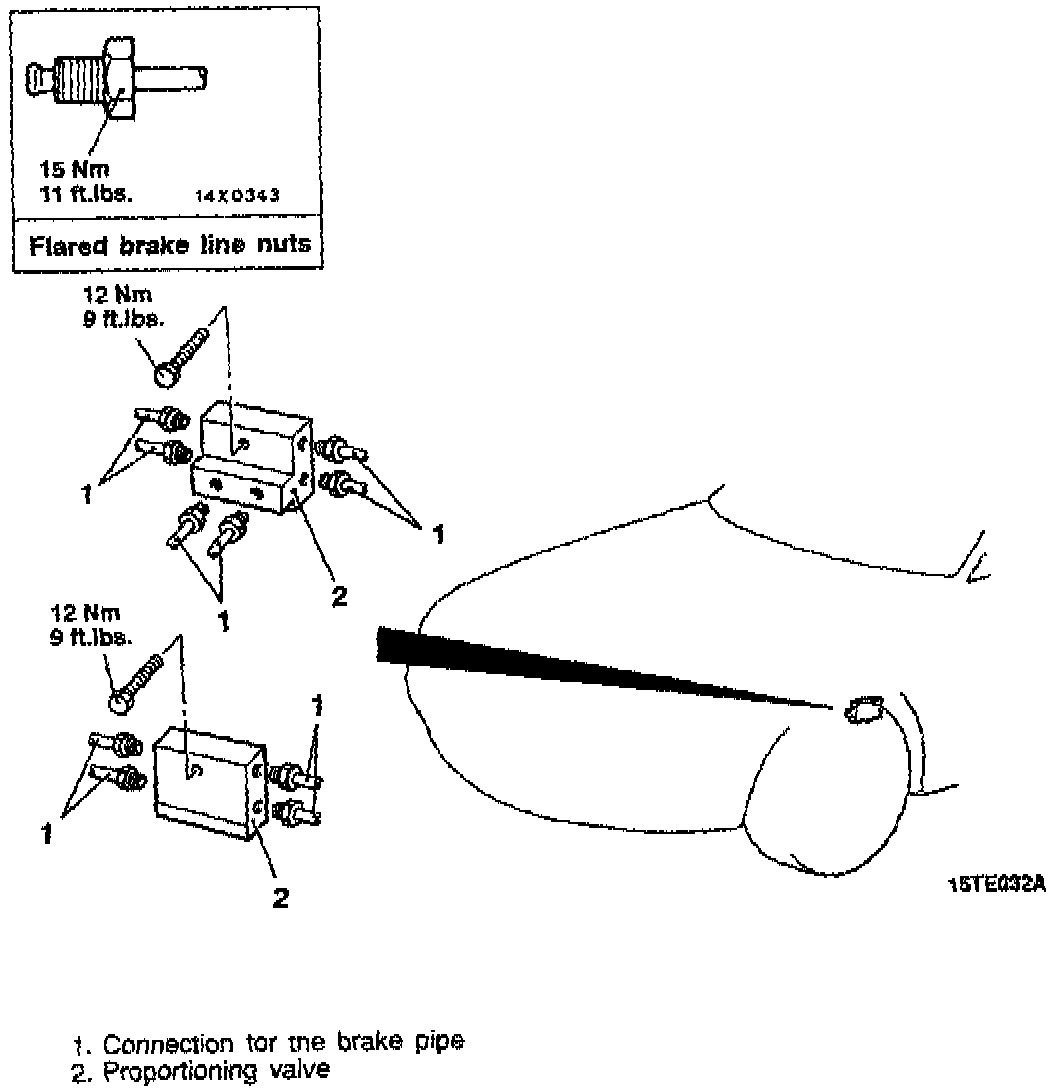

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Installation Service Point

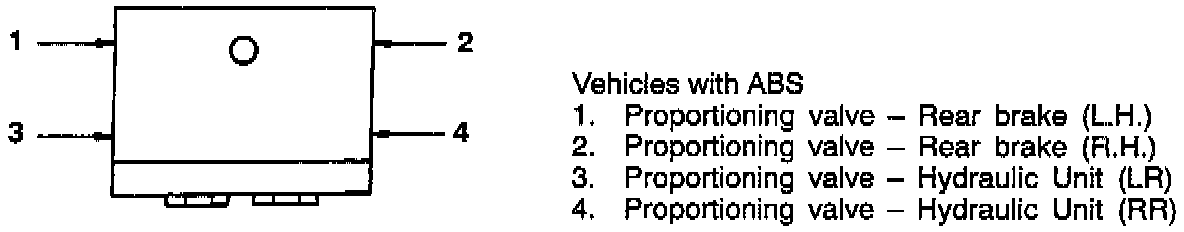

With ABS:

Without ABS:

A. Brake pipe connection. (1)
Connect the pipes to the hydraulic unit as shown in the illustration.

Post-installation Operation:
- Brake Fluid Supplying.
- Brake Line Bleeding.
- Air Intake Hose Installation.
