Brake Rotor/Disc: Service and Repair

1. Remove the backing plate.
- Refer to Parking Brake Shoe service procedures.

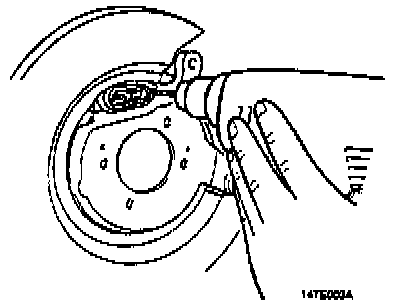

2. Drill out the rivet of the dust boot retaining bracket.
3. Remove the old dust boot.

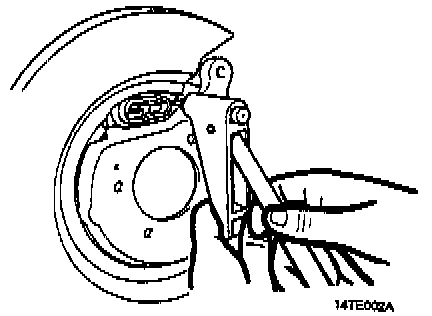

4. Install the new dust boot onto the backing plate.
5. Place the dust boot retaining bracket onto the backing plate.




6. Re-rivet the dust boot retaining bracket onto the backing plate.
