Replacement

REMOVAL
Pre-removal Operation:
- Loosening Parking Brake Cable Adjusting Nut.
- Brake Fluid Draining.

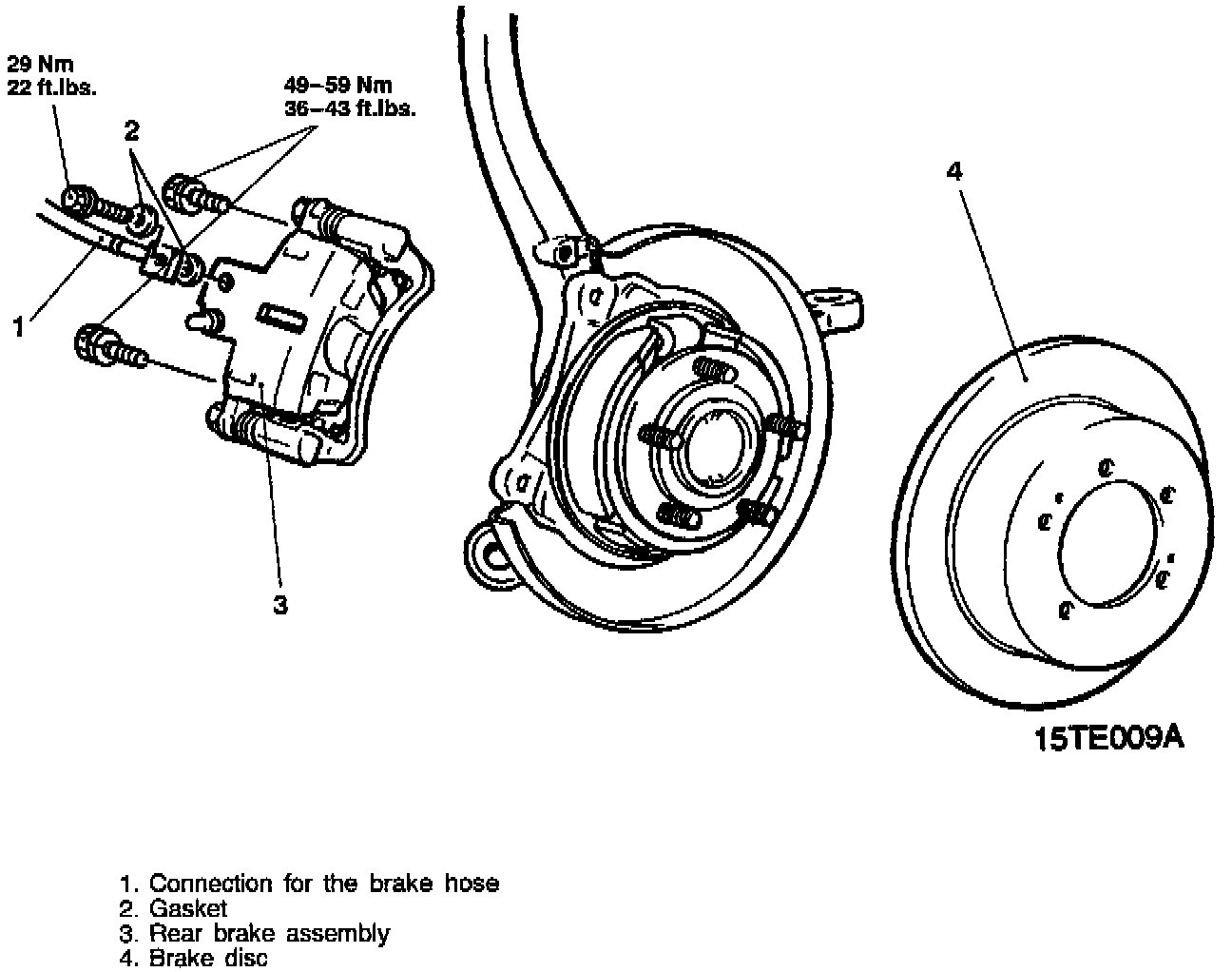

Follow removal steps outlined in illustration.

INSPECTION
- Check the brake disc for damage.
- Check the brake disc for thickness.
- Check the brake disc for run-out.

INSTALLATION
Installation in reverse order as removal.

Installation Service Point
A. Rear brake assembly installation. (3)
Install the rear brake assembly and measure the disc brake drag torque.

Post-installation Operation:
- Brake Fluid Filling and Air Bleeding.
- Parking Brake Lever Stroke Adjustment.
