Removal/Installation

REMOVAL
Pre-removal Operation:
- Brake Fluid Draining.

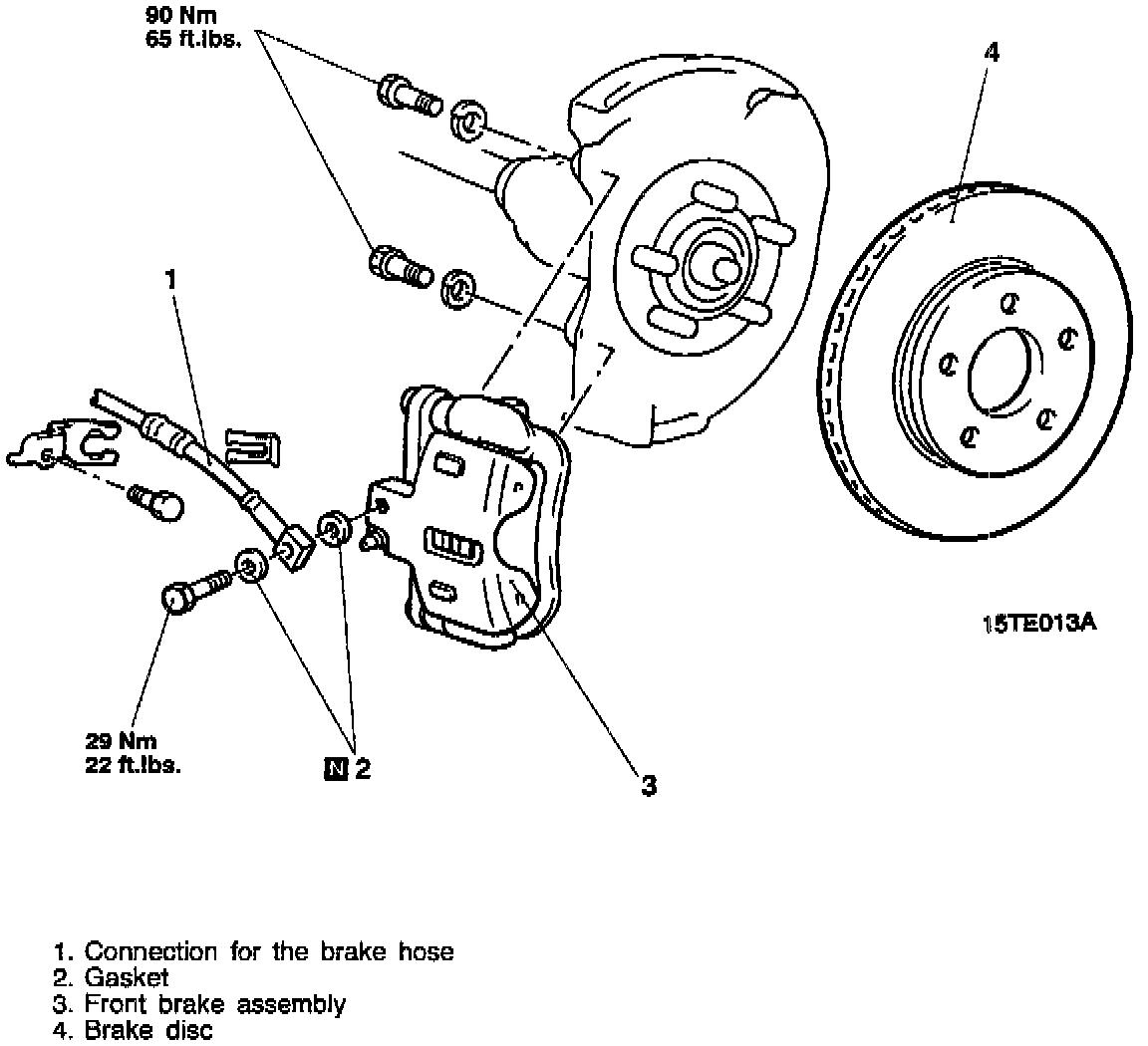

Follow removal steps outlined in illustration.

INSPECTION
Check the brake disc for damage.

INSTALLATION
Installation in reverse order as removal.

Installation Service Points
A. Front brake assembly installation. (3)
Install the front brake assembly and measure the disc brake drag torque.

Post-installation Operation:
- Brake Fluid Supplying.
- Brake Line Bleeding.
