Starting System: Testing and Inspection

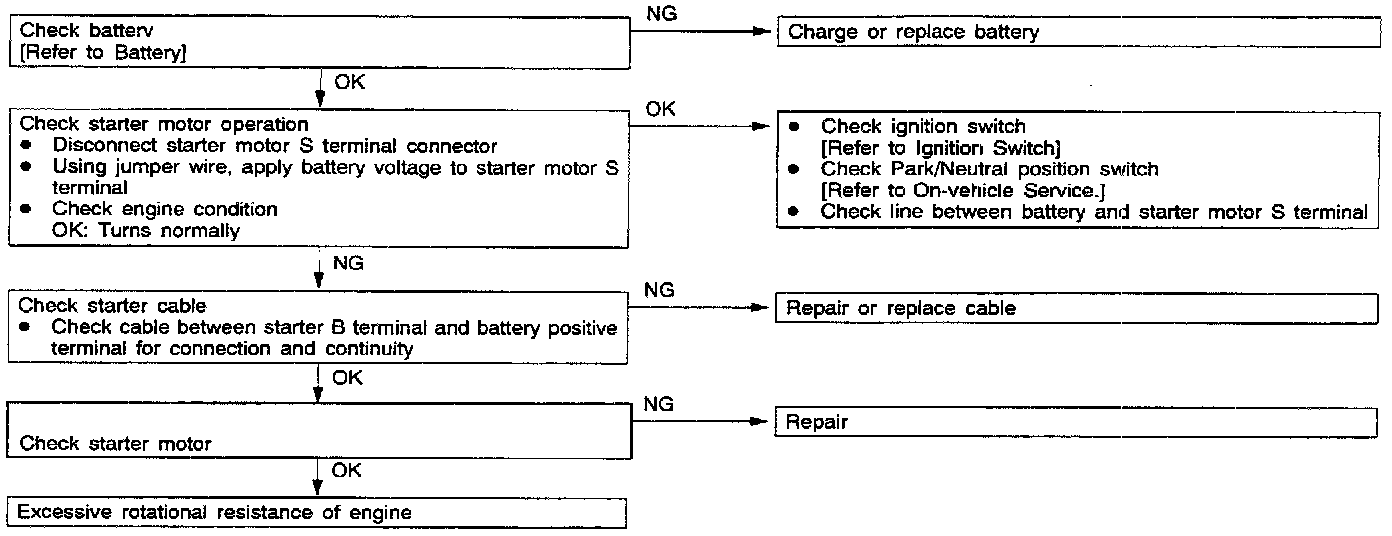

The
starting system
troubleshooting guide is shown in the above chart.
