Diamante ES Sedan V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Testing and Inspection
>>
Troubleshooting Guide
Troubleshooting Guide

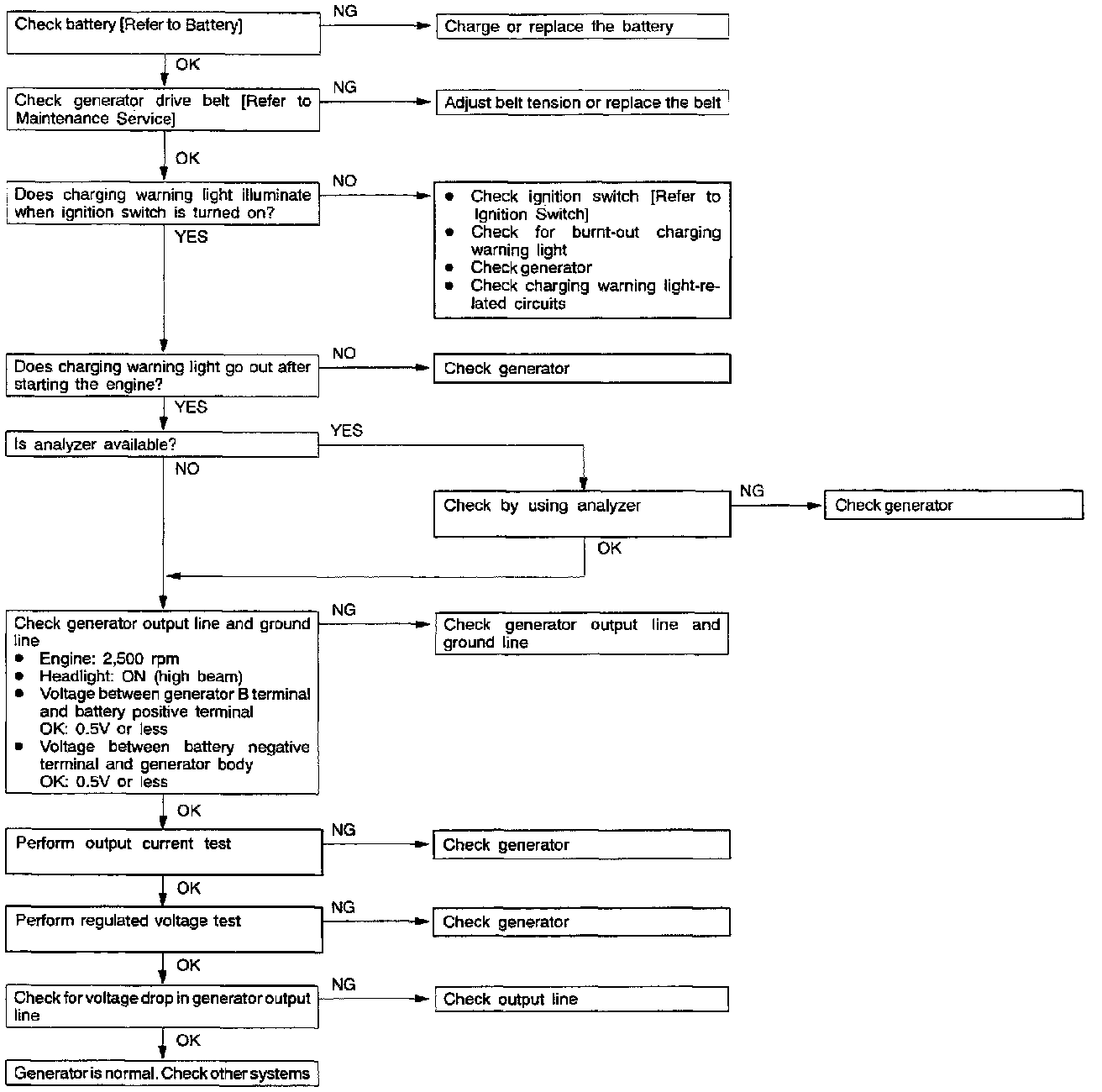

The
charging system
troubleshooting guide is shown in the above chart.
