Component Tests and General Diagnostics

ROAD TEST

Check by the following procedures

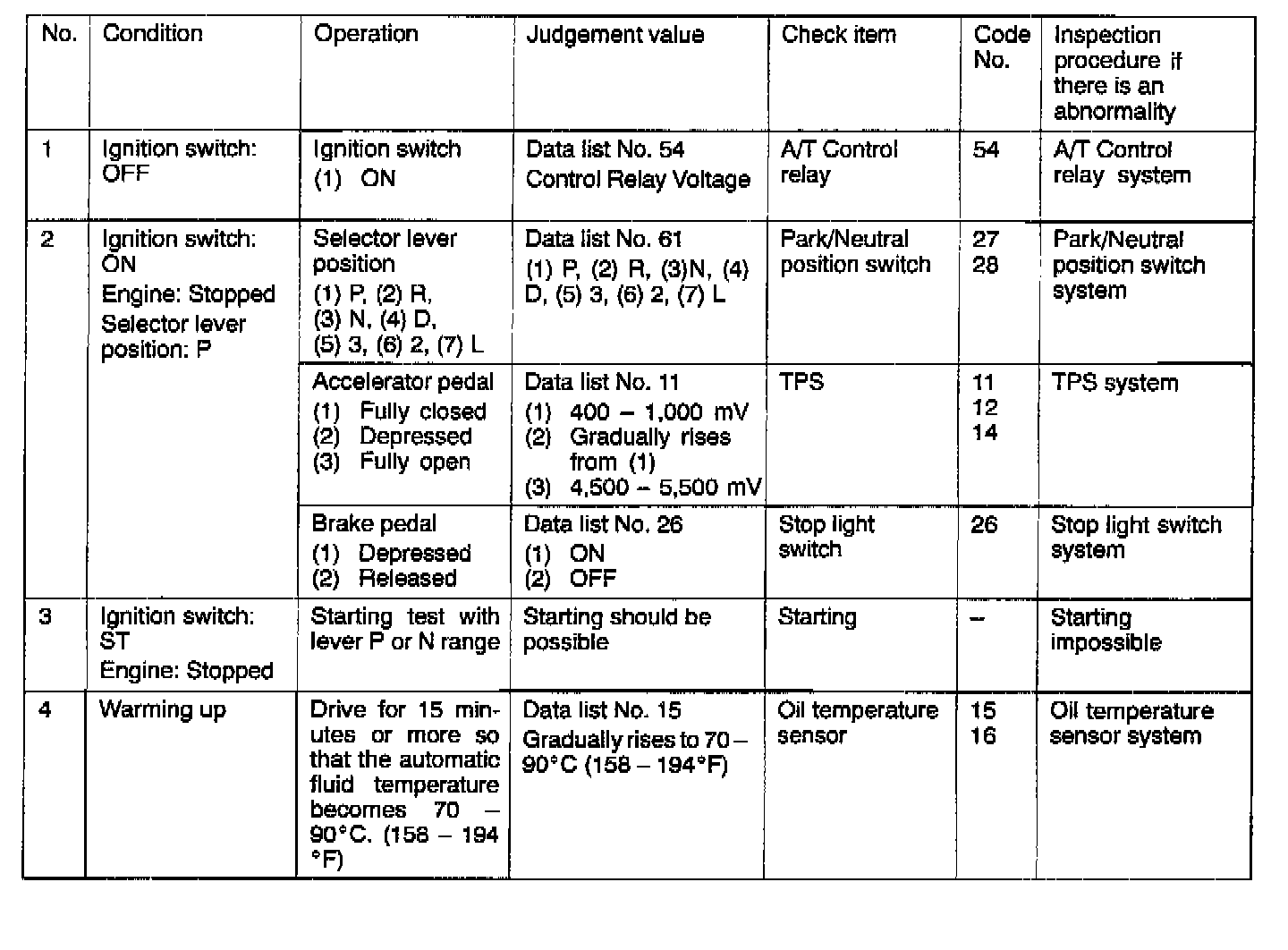

Steps No. 1 to 4

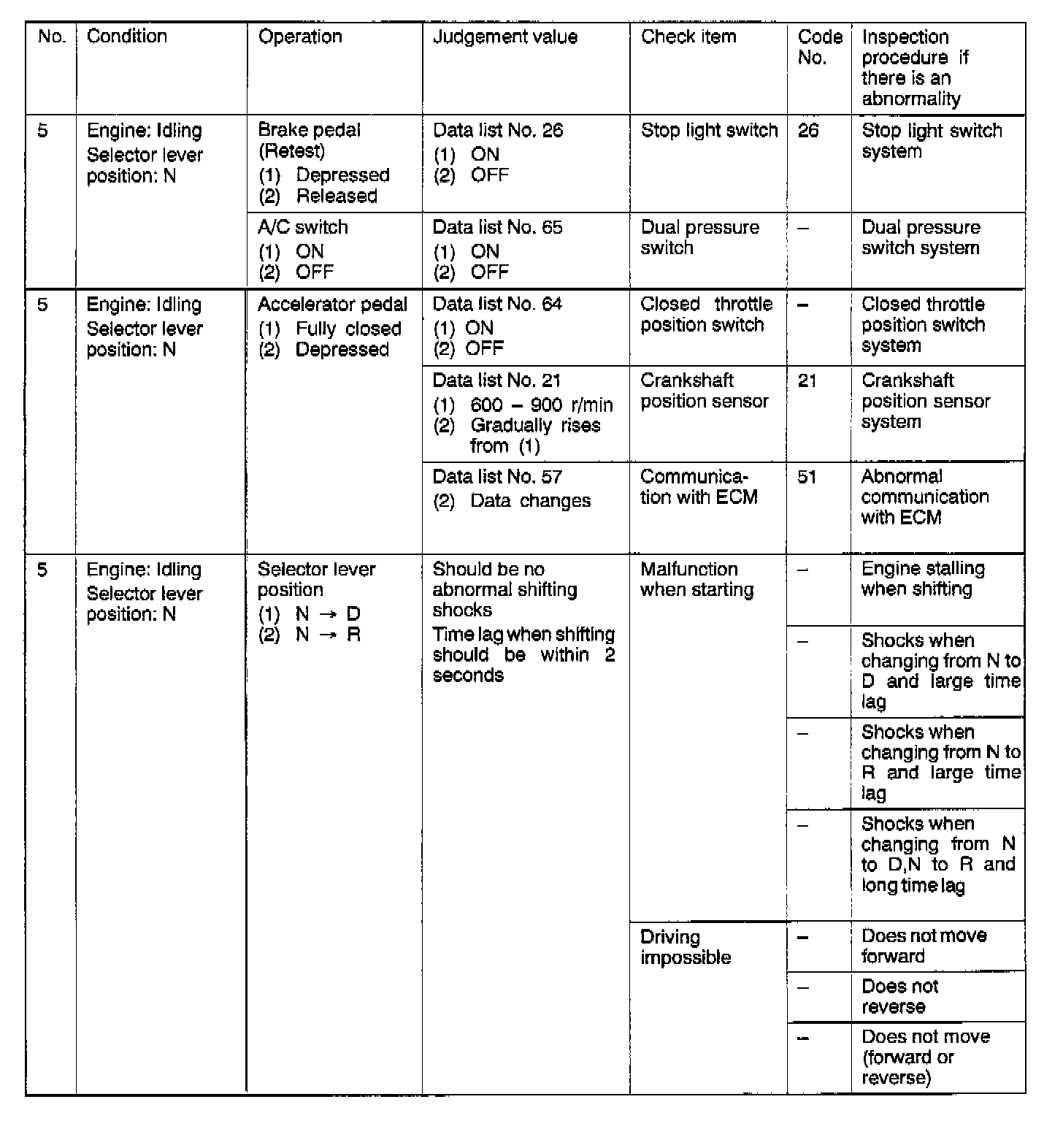

Step No. 5

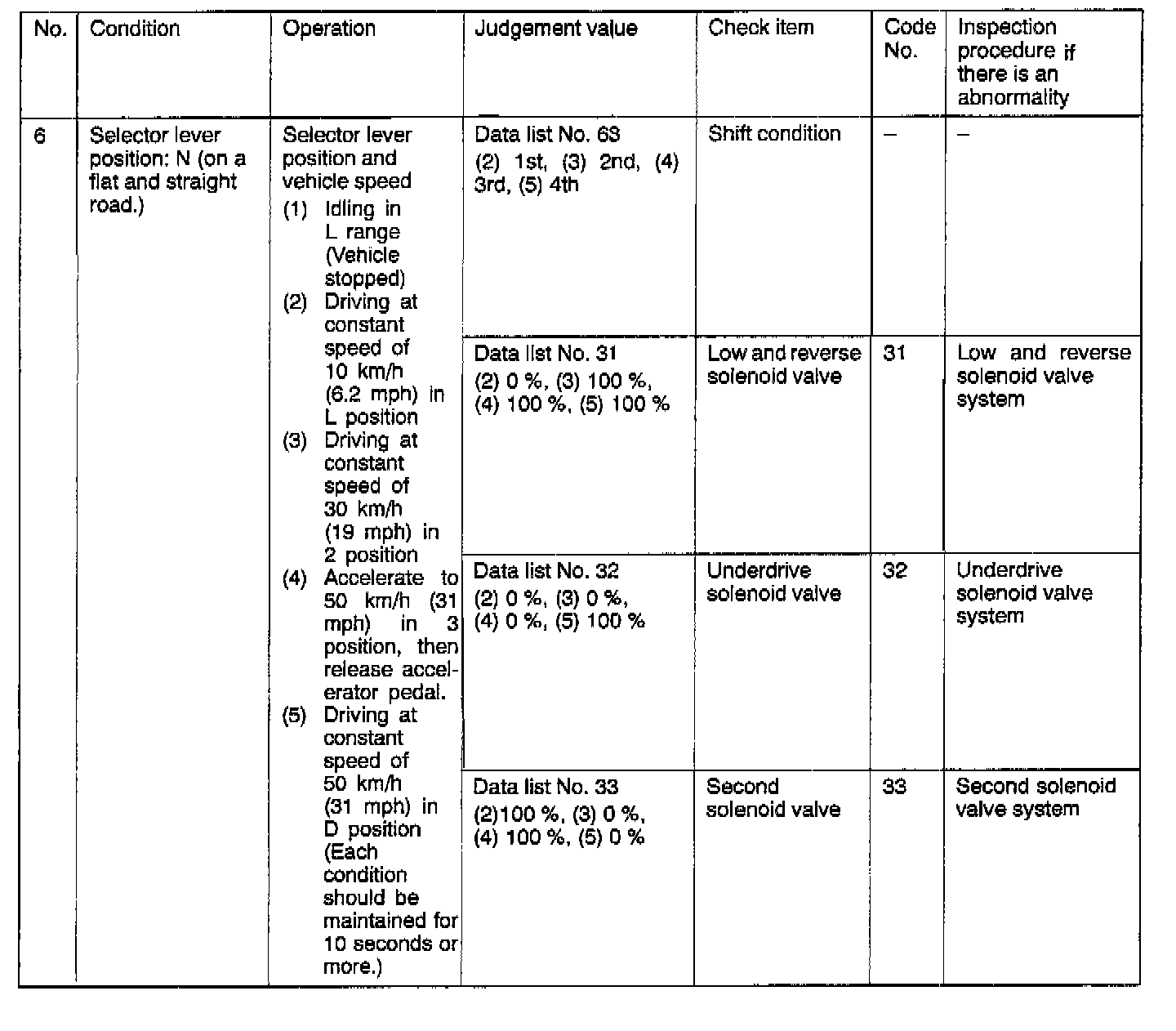

Step No. 6

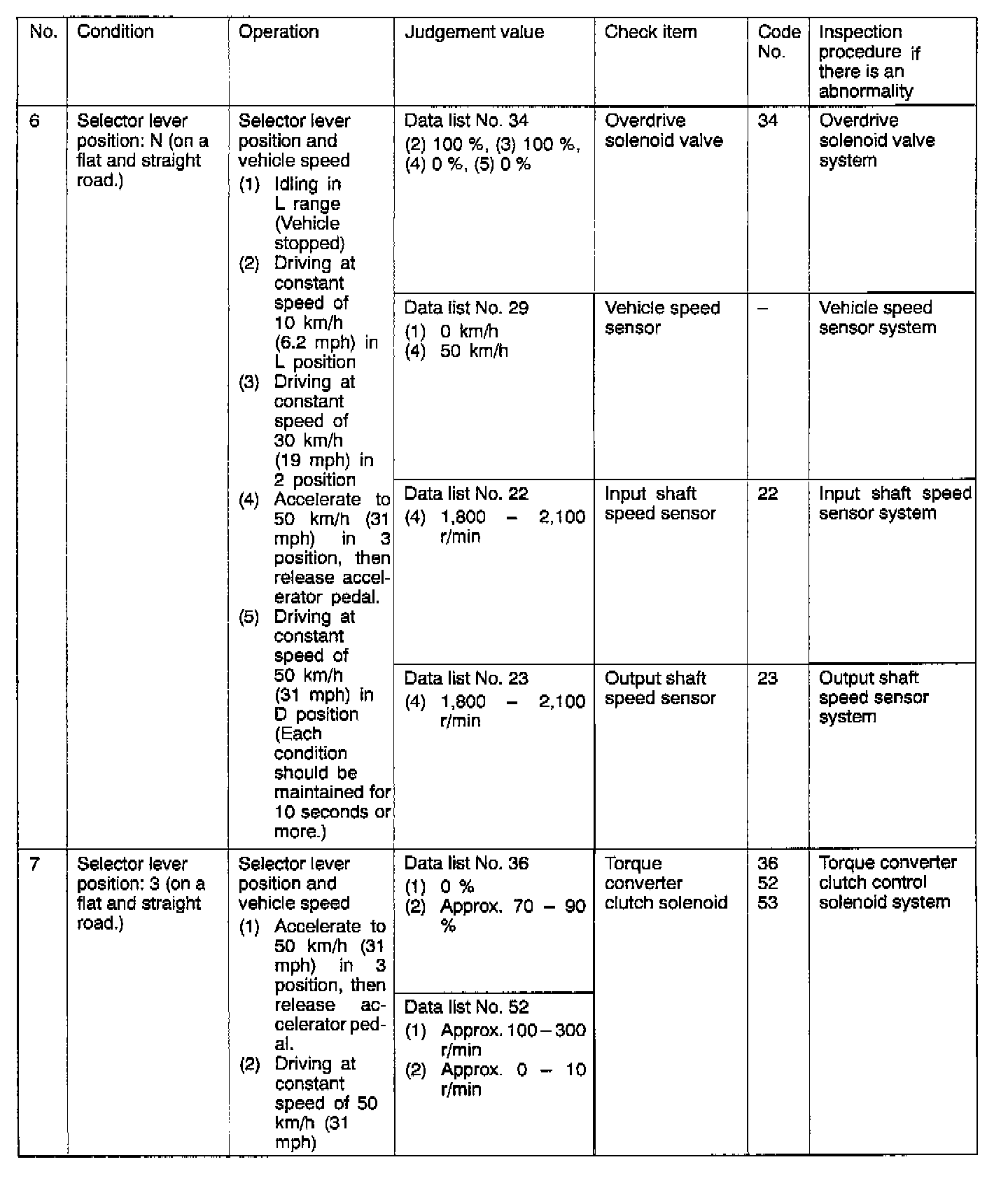

Steps No. 6 and 7

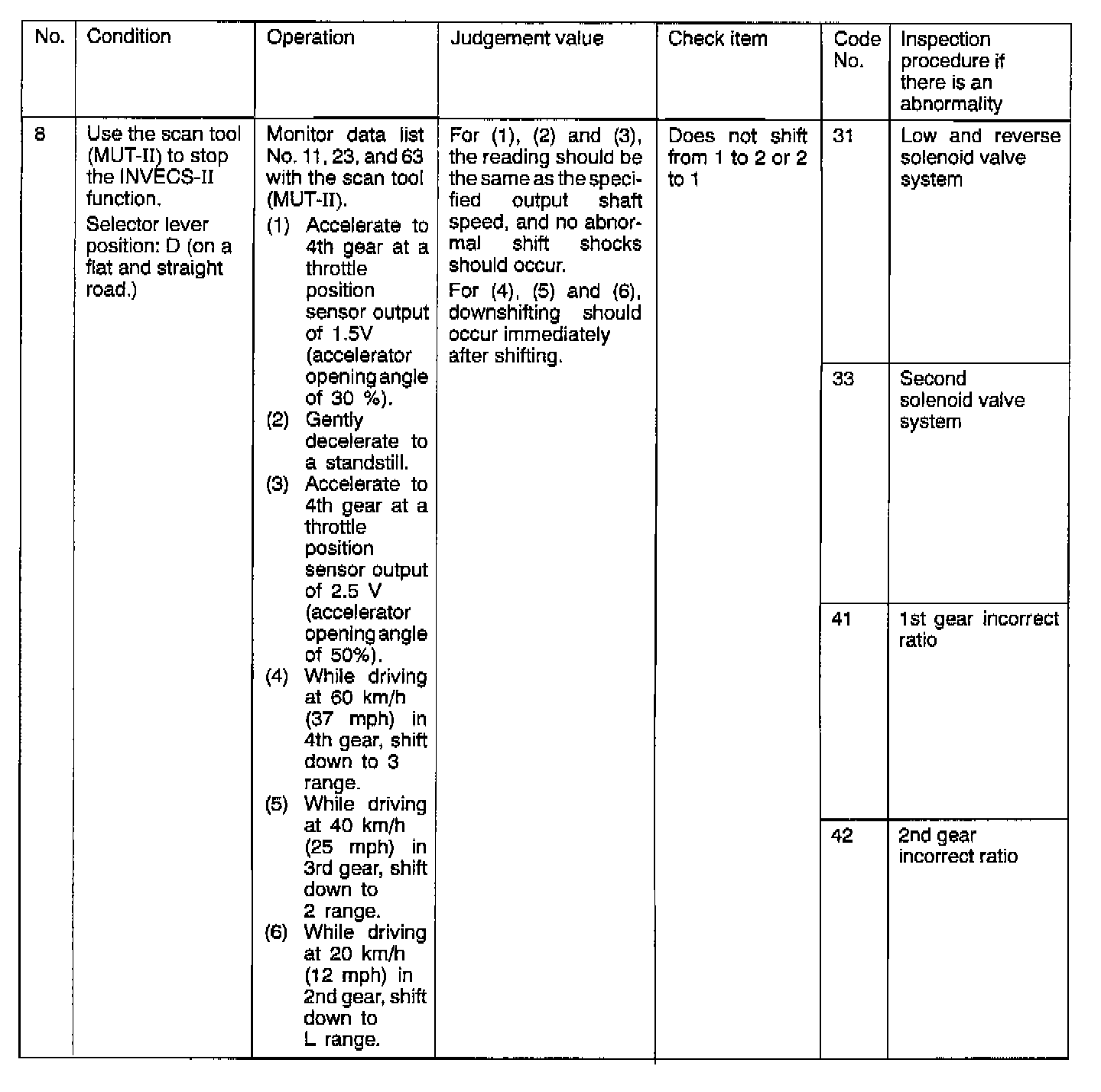

Step No. 8

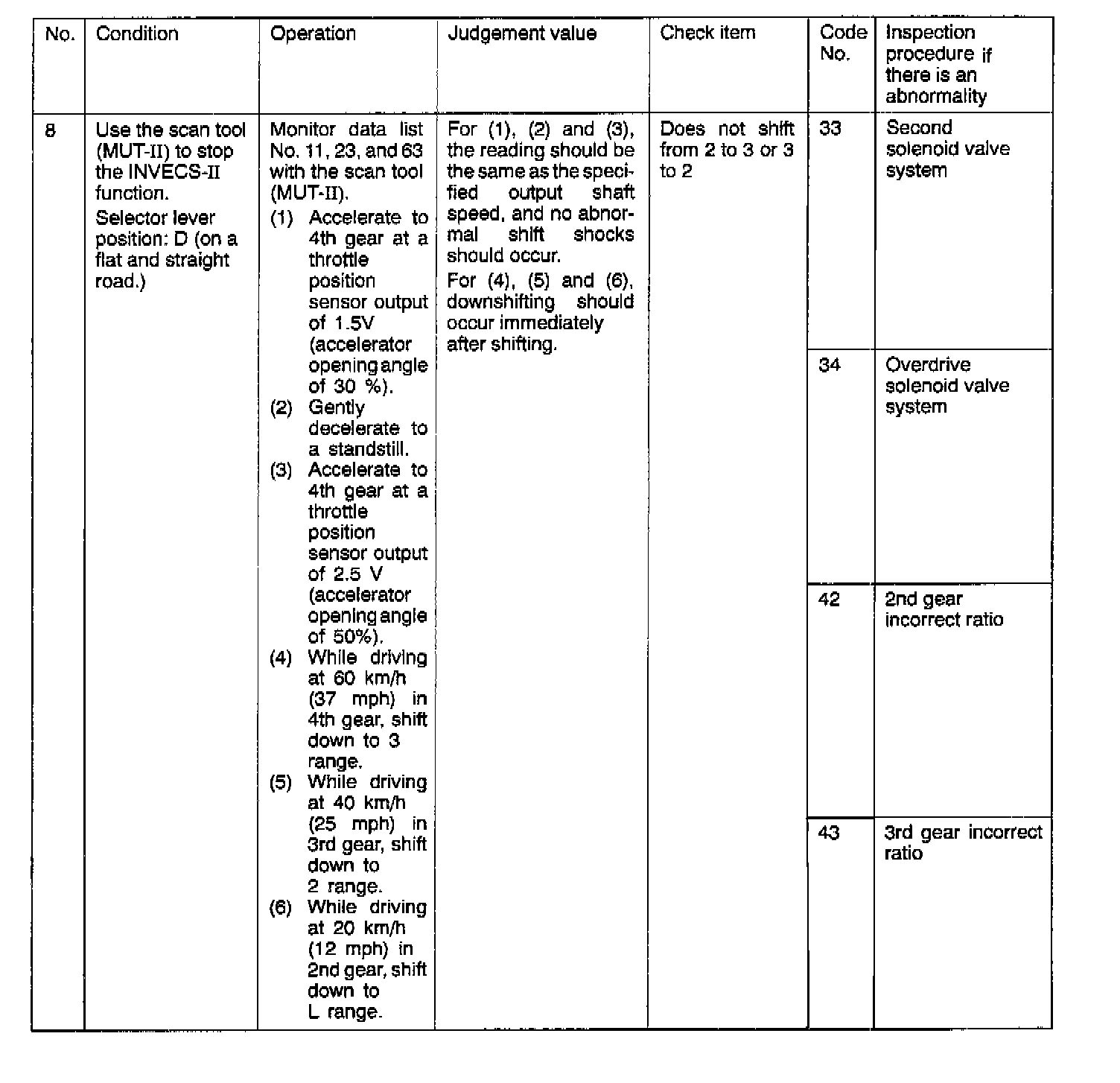

Step No. 8

Step No. 8

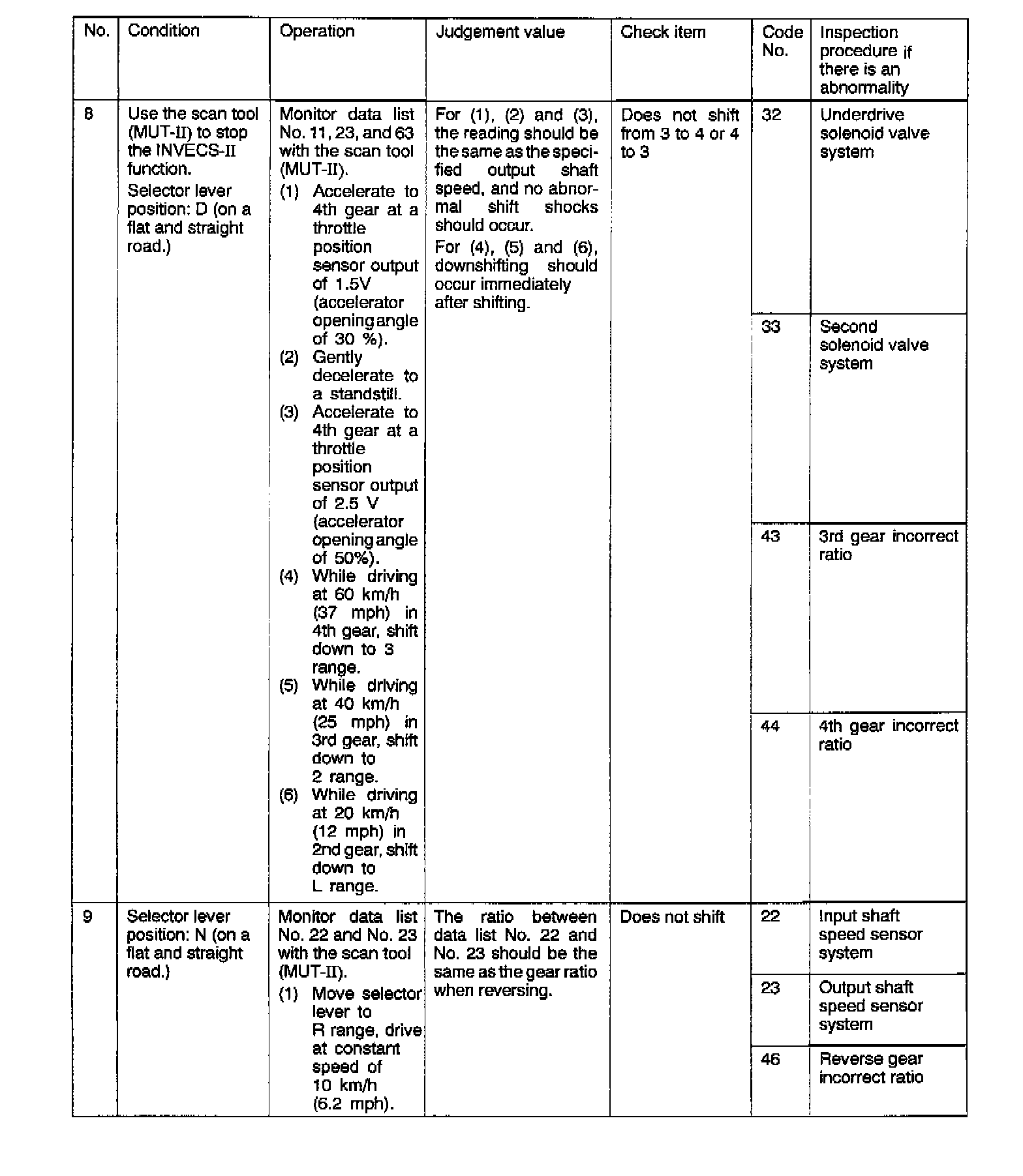

Steps No. 8 and 9

SHIFT PATTERN

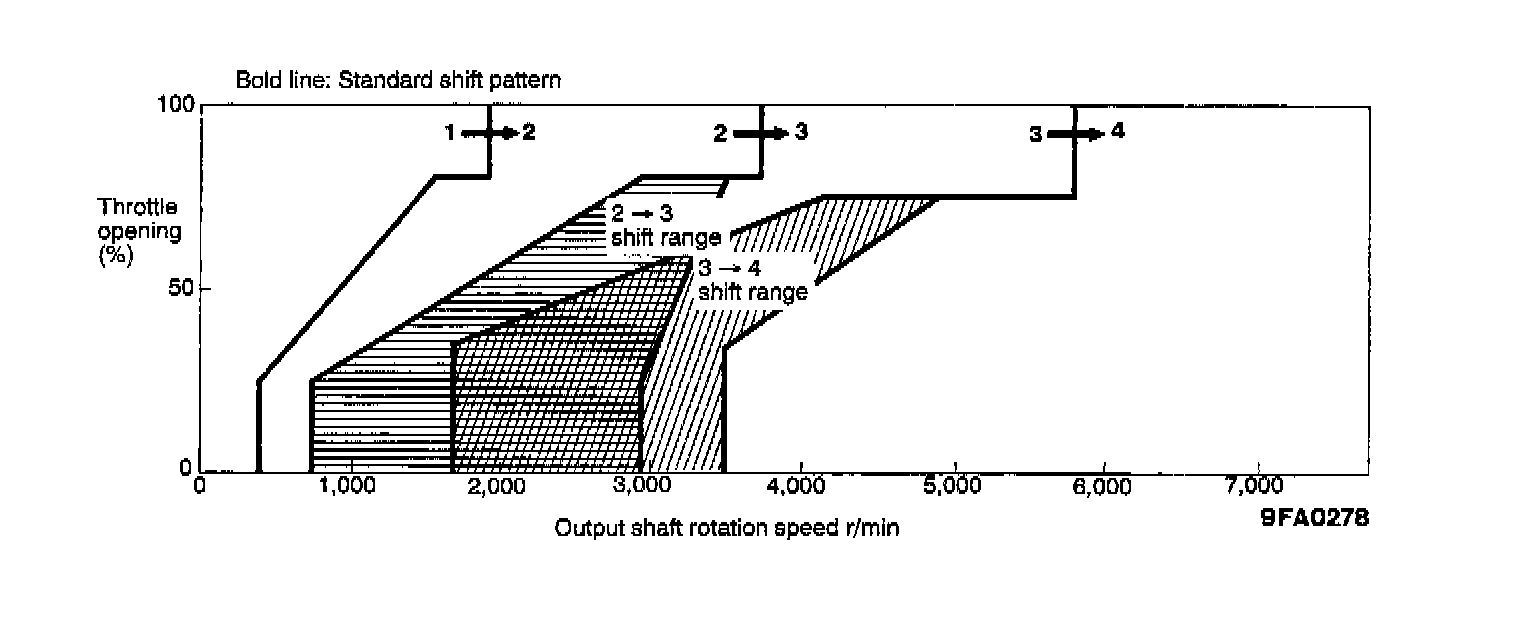

Upshift Pattern

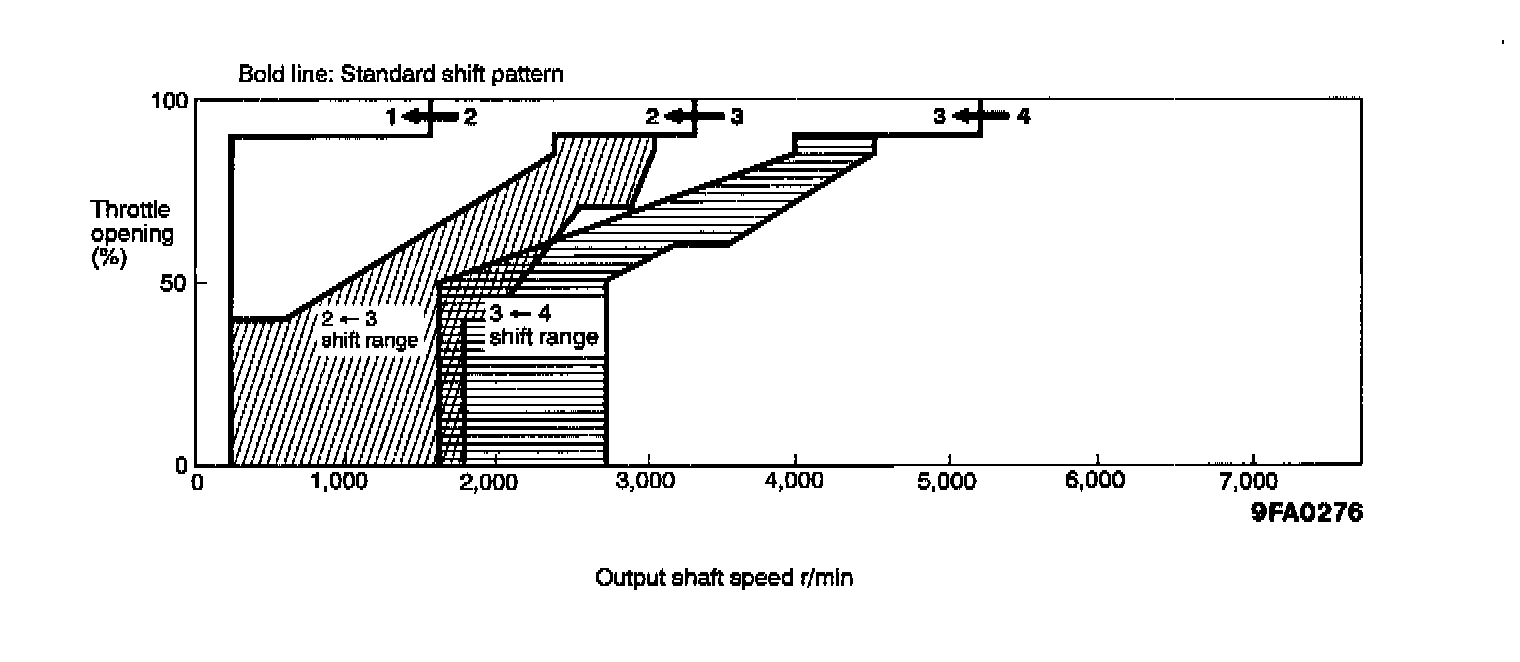

Downshift Pattern
