Electrical Diagrams

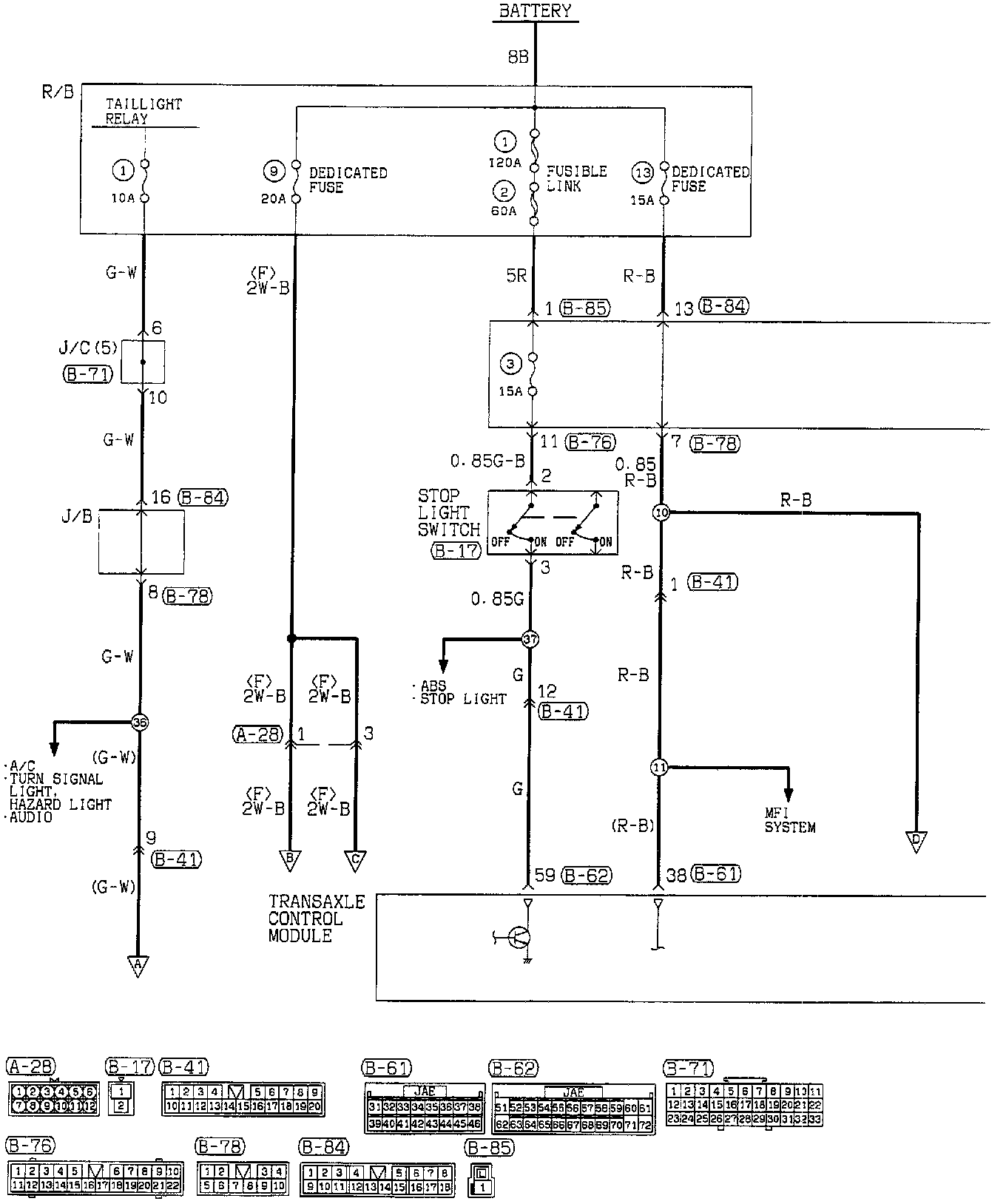

ELC 4-Speed Automatic Transaxle (Part 1 Of 7):

J/B
R/B
Stop Light Switch
Transaxle Control Module

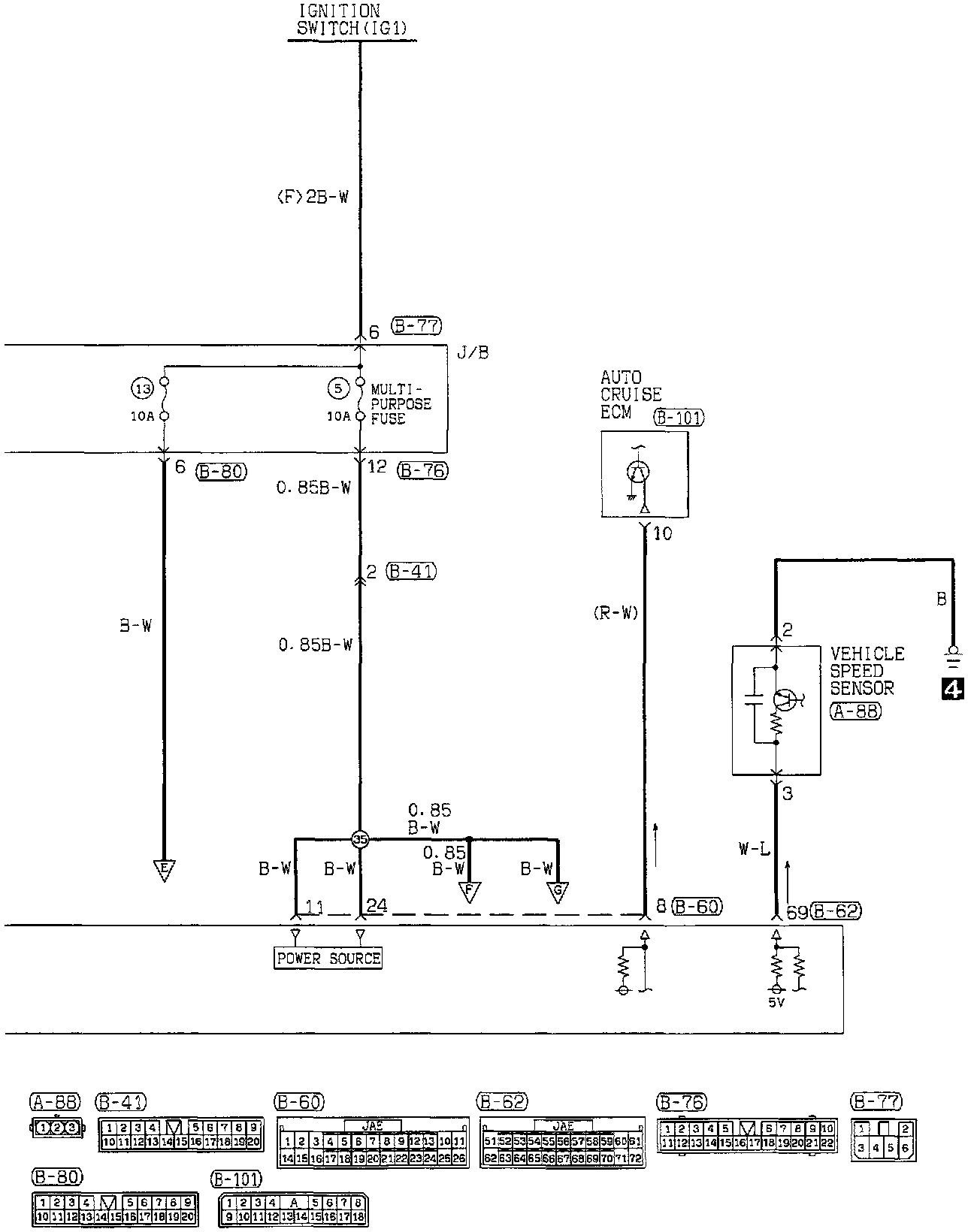

ELC 4-Speed Automatic Transaxle (Part 2 Of 7):

Auto Cruise ECM
J/B
Transaxle Control Module
- Power Source
Vehicle Speed Sensor

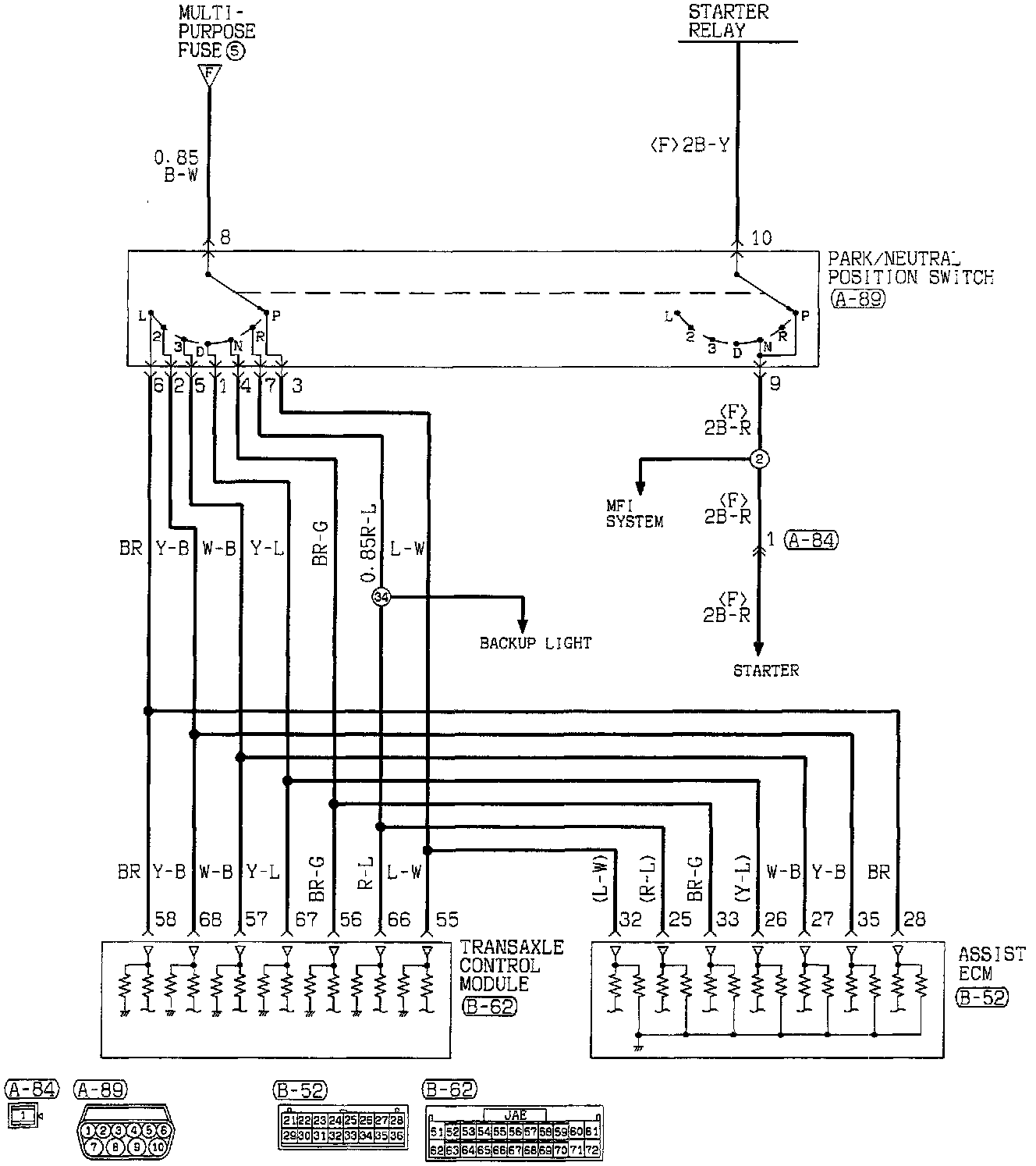

ELC 4-Speed Automatic Transaxle (Part 3 Of 7):

Assist ECM
Park/Neutral Position Switch
Transaxle Control Module

ELC 4-Speed Automatic Transaxle (Part 4 Of 7):

Assist ECM
Combination Meter(Higher Contrast Meter)
Combination Meter(Standard Meter)
Instrument Panel ECM
J/B
Position Indicator Light Assembly

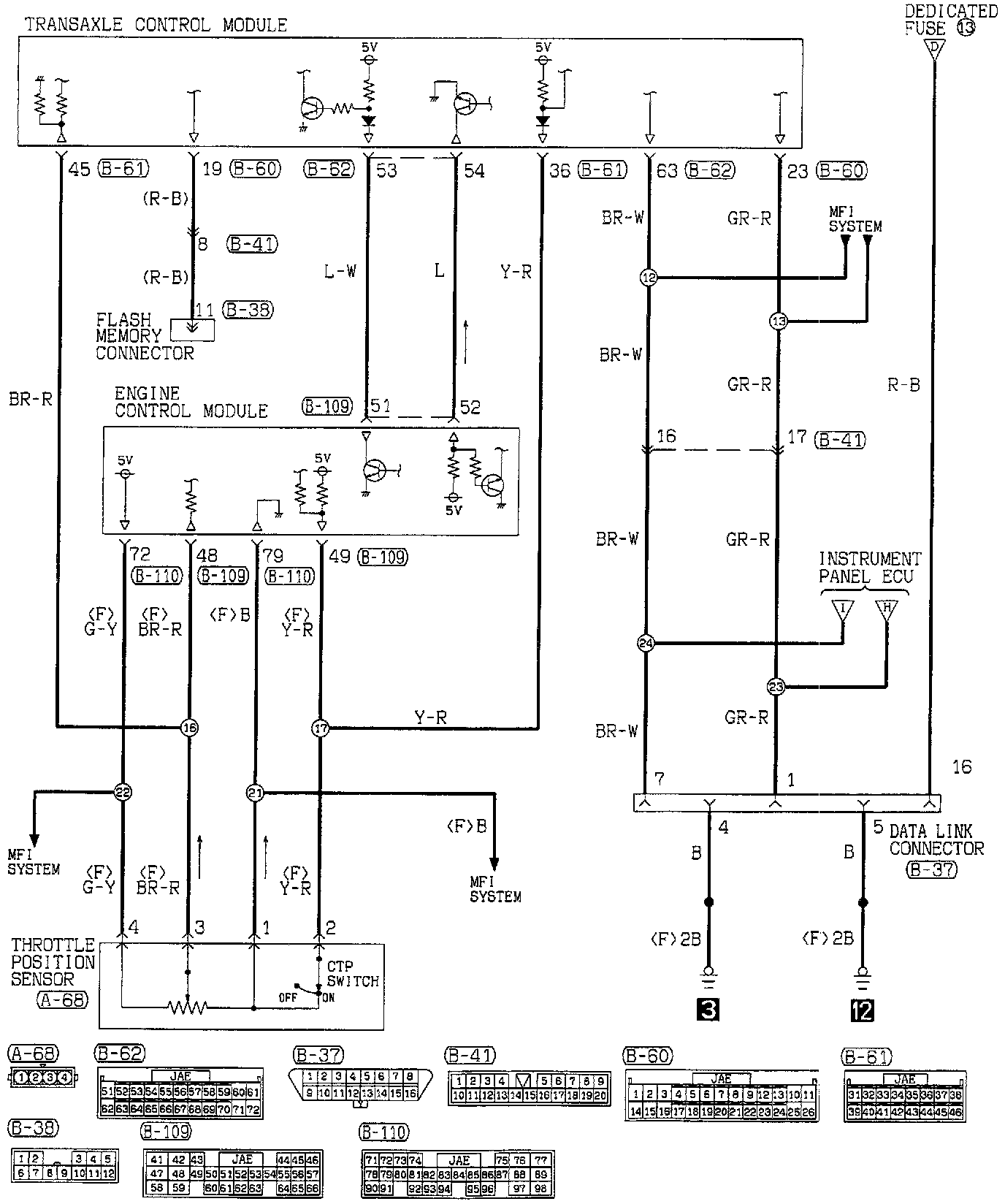

ELC 4-Speed Automatic Transaxle (Part 5 Of 7):

Data Link Connector
Engine Control Module
Throttle Position Sensor
Transaxle Control Module

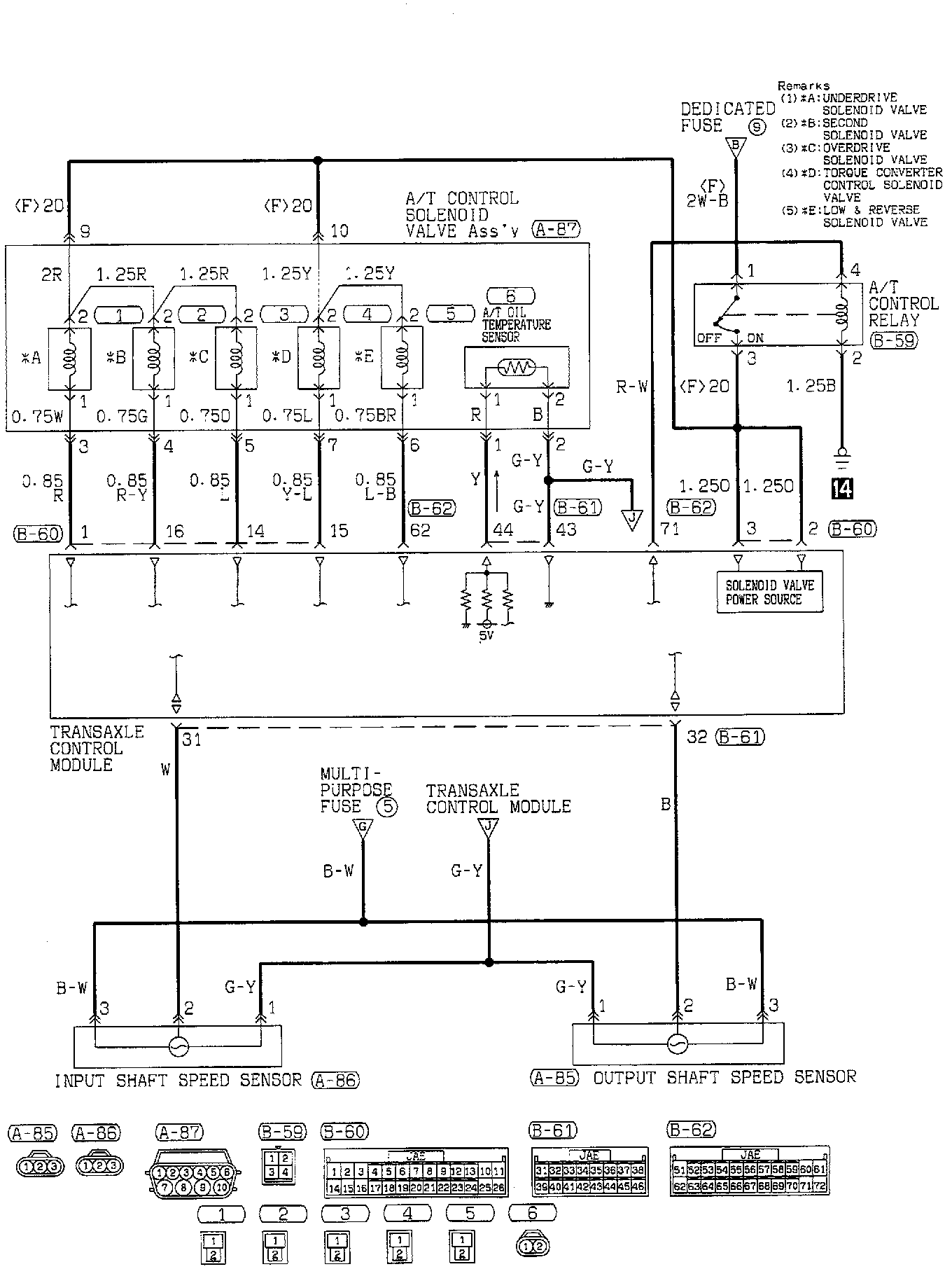

ELC 4-Speed Automatic Transaxle (Part 6 Of 7):

A/C Control Solenoid Valve Assembly
- A/T Oil Temperature Sensor
A/T Control Relay
Input Shaft Speed Sensor
Output Shaft Speed Sensor
Transaxle Control Module
- Solenoid Valve Power Source

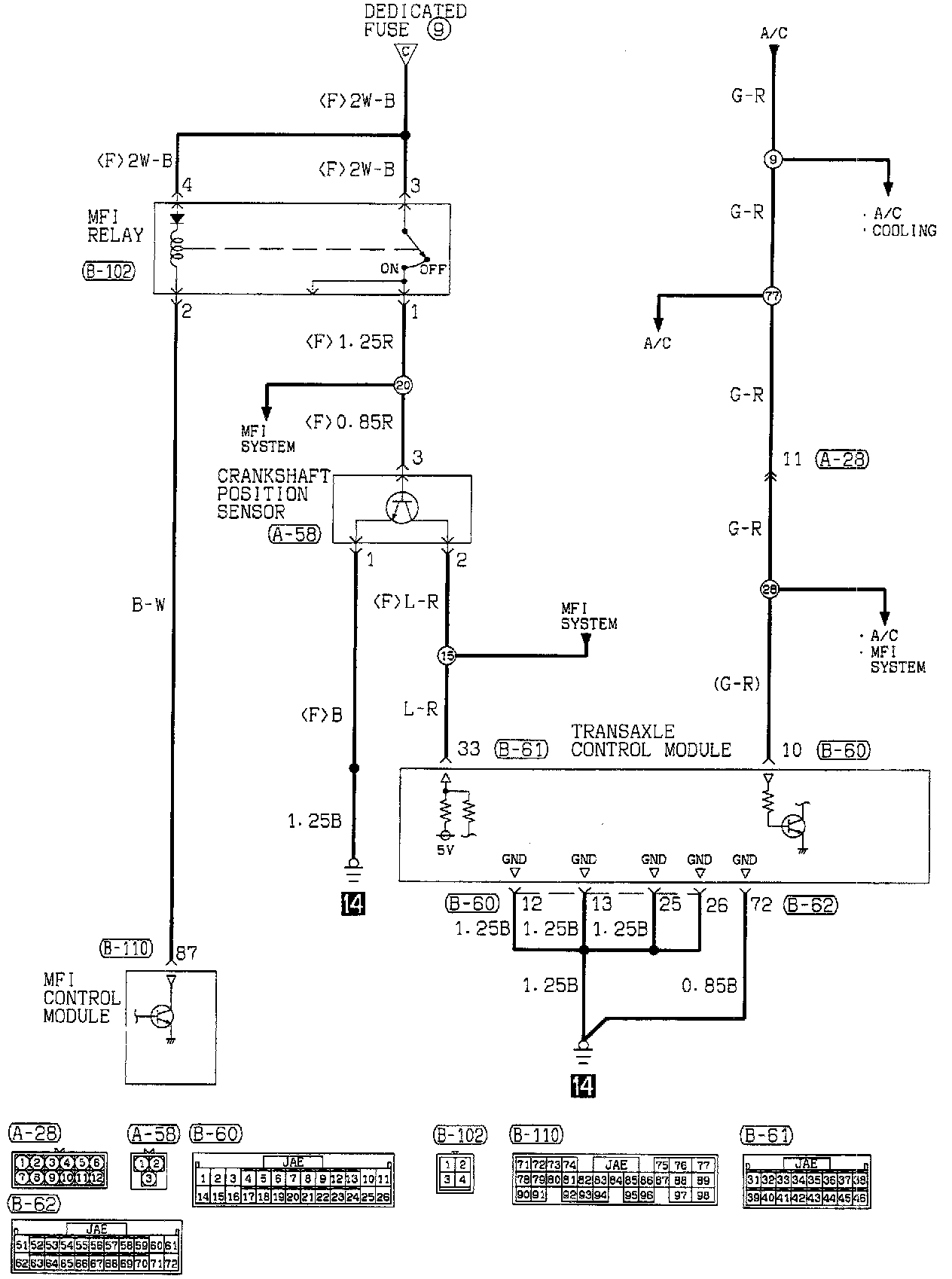

ELC 4-Speed Automatic Transaxle (Part 7 Of 7):

Crankshaft Position Sensor
MFI Control Module
MFI Relay
Transaxle Control Module
