Ignition System: Service and Repair

IGNITION SYSTEM REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
Engine cover removal and installation.

Removal




To remove follow the steps listed in the image.

Installation

To install reverse the steps listed in the image and note the following:




Step 3: Distributor Installation

1. Turn the crankshaft so that the No. 1 cylinder is at top dead center.

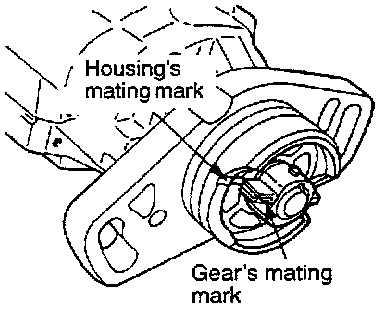

2. Align the distributor housing and gear mating marks and install the distributor.

Step 1: Spark Plug Cable Installation

Improper arrangement of spark plug cables will induce voltage between the cables, causing misfiring and developing a surge at acceleration in high-speed operation.
Therefore, be careful to arrange the spark plug cables properly paying attention to the following items.
1. Install the cables securely to avoid possible contact with metal parts.
2. Install the cables neatly, ensuring they are not too tight, loose, twisted or kinked
