Transmission Position Sensor/Switch: Testing and Inspection

PARK/NEUTRAL POSITION SWITCH CONTINUITY CHECK

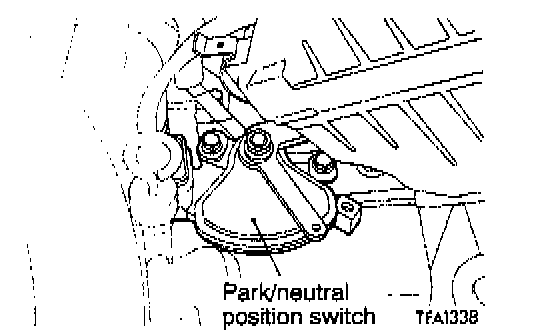

PART 1 OF 3, Location of Switch

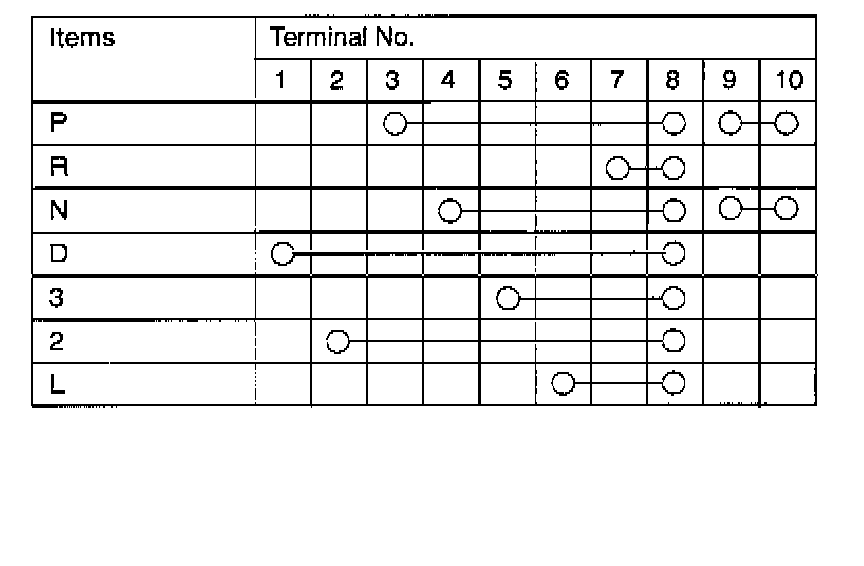

PART 2 OF 3, Continuity Chart

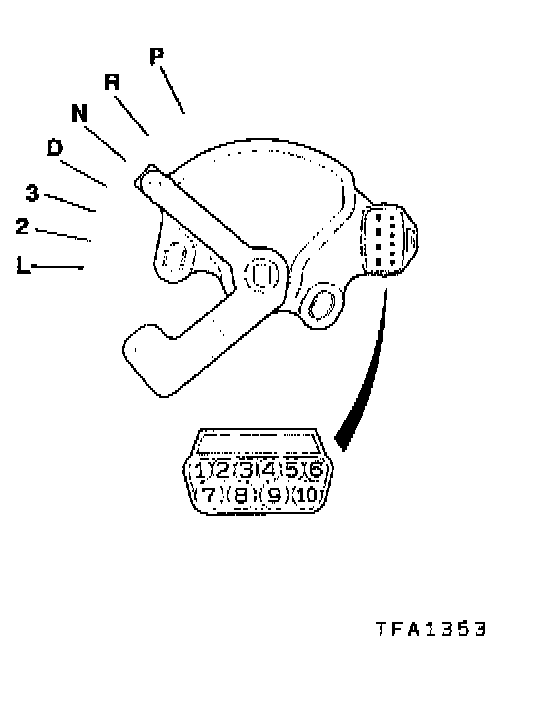

PART 3 OF 3, Gear Selector Positions and Connector View
