MFI - Revised MAF Rate Specs & ECM Connector Terminals
No: TSB-98-13-006DATE: June, 1998
MODEL: 1997-98 Diamante
SUBJECT:
MFI TROUBLESHOOTING (REVISED AIR FLOW SENSOR SPECIFICATIONS & ECM CONNECTOR TERMINALS) - SERVICE MANUAL REVISION
[TSB Revision TSB-98-13-006]
PURPOSE
This bulletin revises the following:
^ The air flow sensor mass air flow rate normal condition specification for 1997-98 models.
^ Engine Control Module (ECM) Connector Terminal Arrangement diagrams for the 1998 model.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1997-98 Diamante
AFFECTED SERVICE MANUALS
1997 Diamante Service Manual, Volume 1, Page 13A-93
1998 Diamante Service Manual, Volume 1, Pages 13A-103, 110,114
SERVICE MANUAL REVISIONS
1997 Diamante Service Manual, Volume 1, Page 13A-93
Revise the air flow sensor mass air flow rate specification as shown:
1998 Diamante Service Manual Volume 1, Page 13A-103
Revise the air flow sensor mass air flow rate specification as shown.
1998 Diamante Service Manual, Volume 1, Page 13A-11O

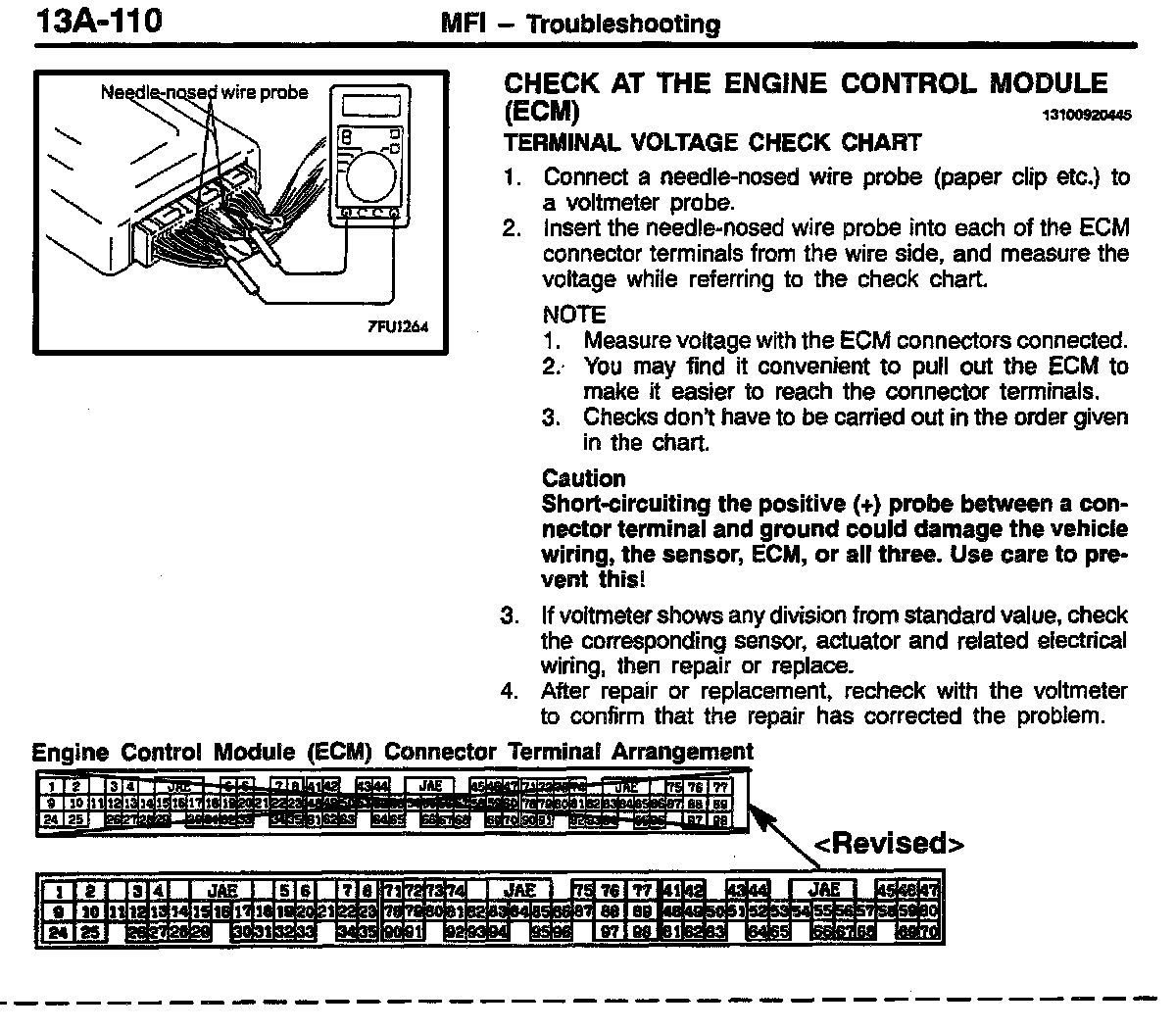

Revise the Engine Control Module Connector Terminal Arrangement diagram as shown:
1998 Diamante Service Manual, Volume 1, Page 13A-114
Revise the Engine Control Module Connector Terminal Arrangement diagram as shown.
