Body Control Module: Service and Repair
REMOVAL

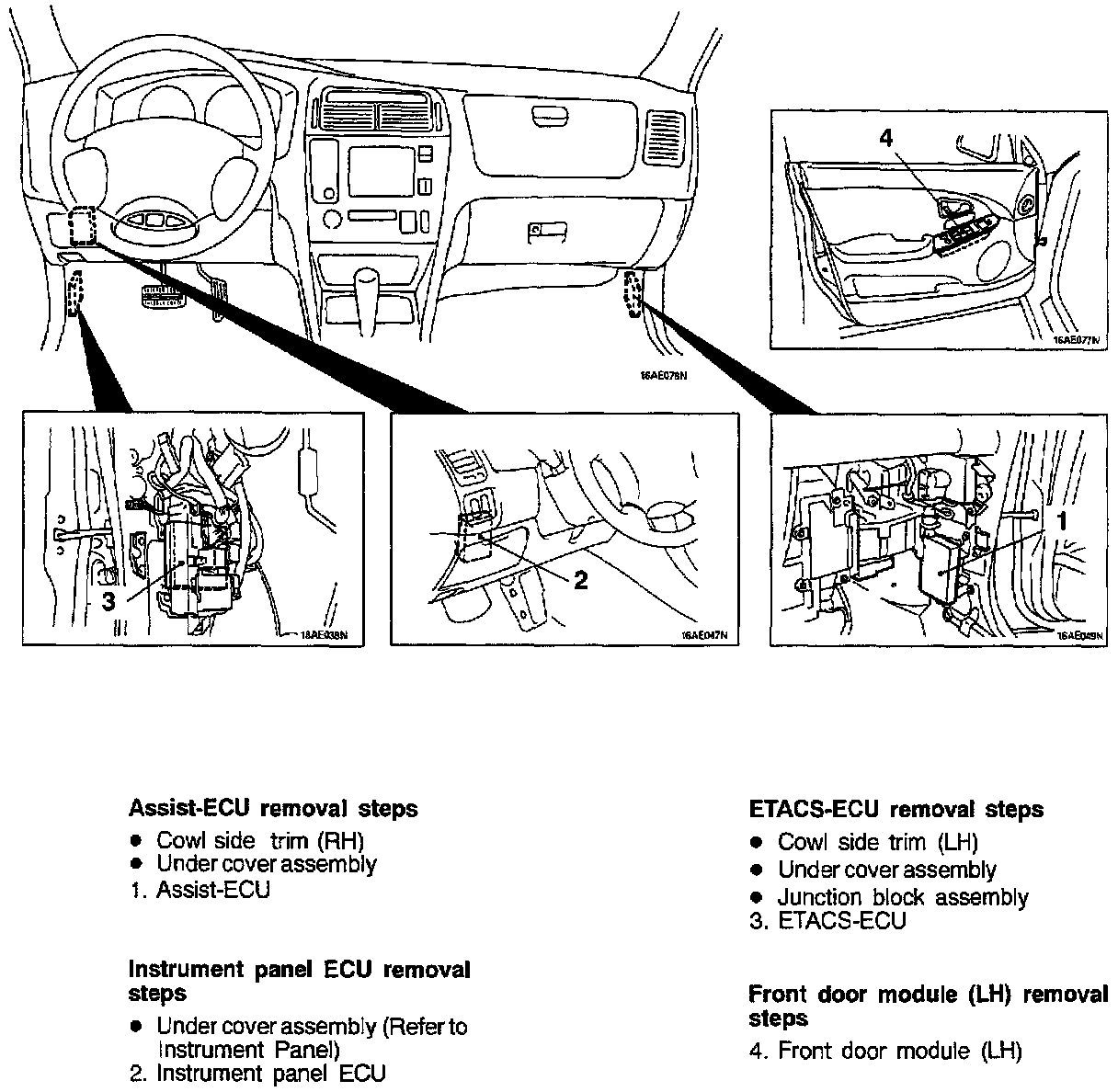

To remove follow the steps listed in the image.
INSTALLATION
To install reverse the steps listed in the image.
