Diamante ES Sedan V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Testing and Inspection
>>
Related Diagnostic Procedures
>>

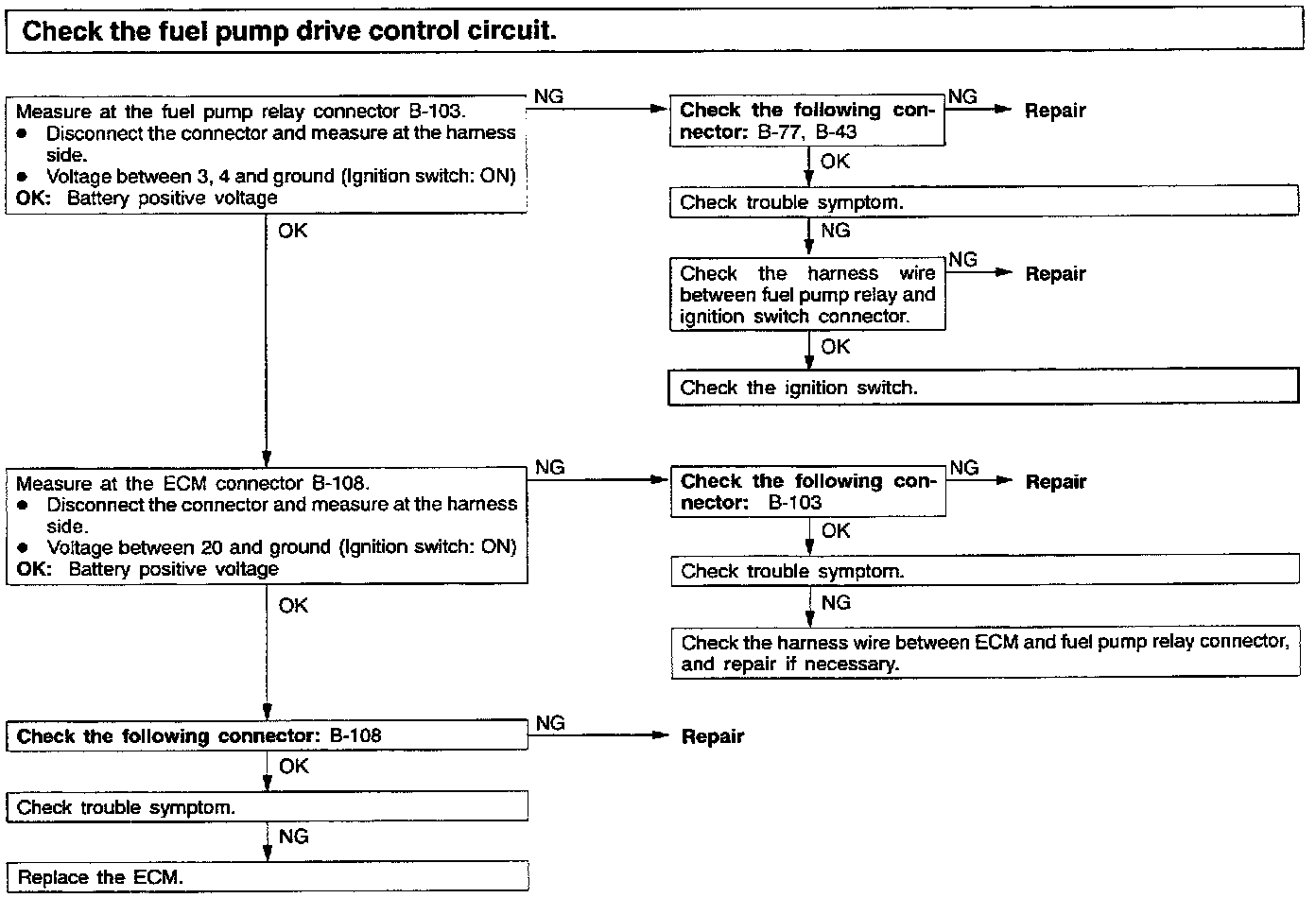

43. Fuel Pump Relay Control Circuit Test
43. Fuel Pump Relay Control Circuit Test
