Knock Sensor: Locations
KNOCK SENSOR LOCATION

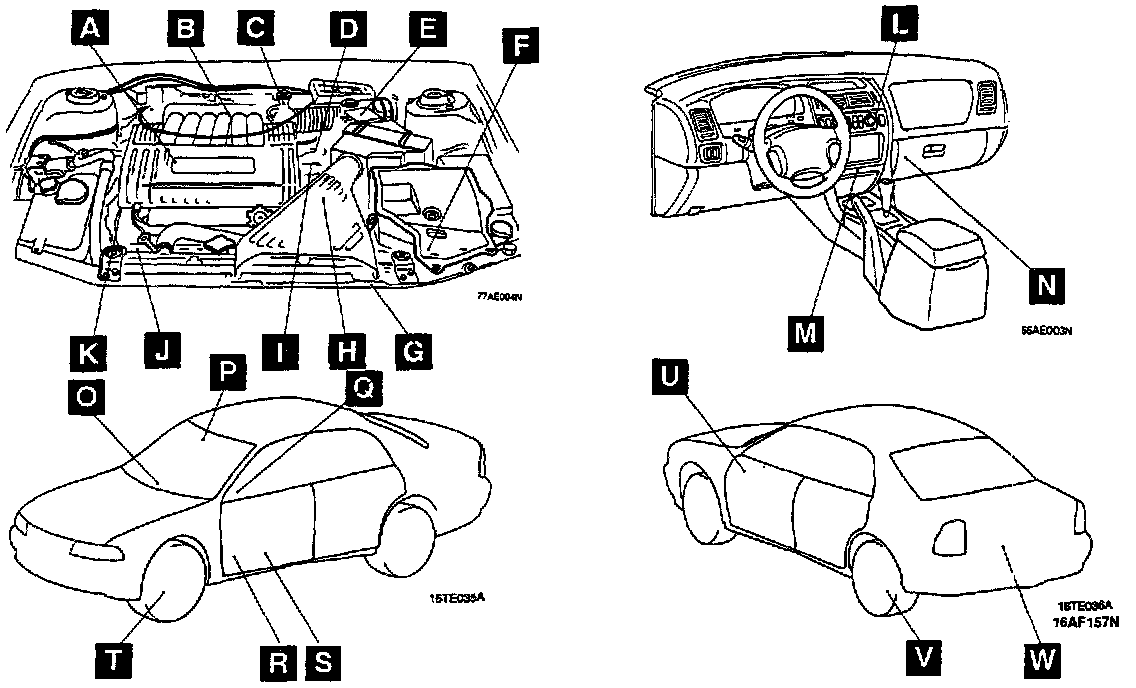

Sensor Locations Overall View:
On vehicle location

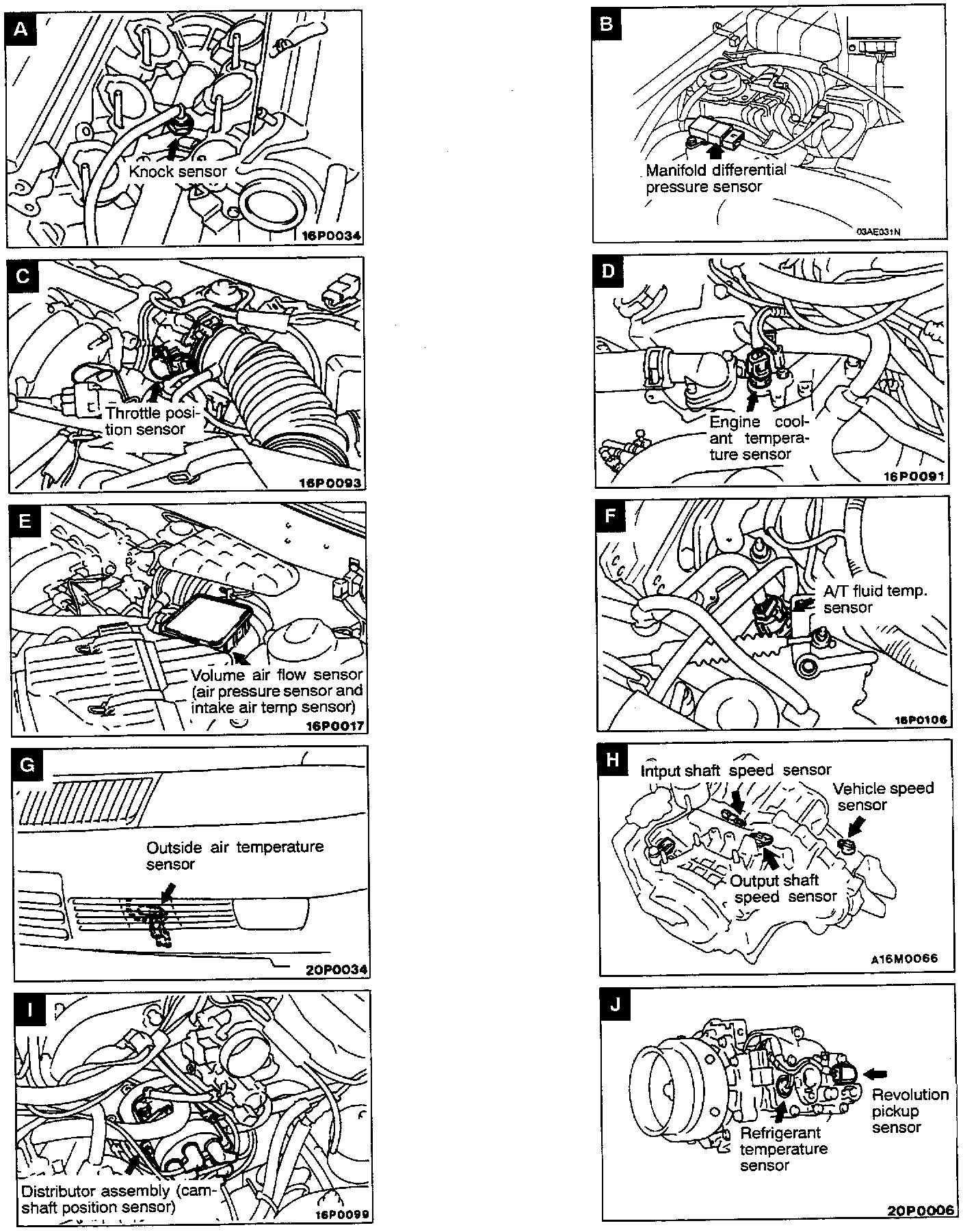

Sensor Location Views A - J:
Sensor location
View
Knock sensor
A
