Home >> Mitsubishi >> 1998 >> Diamante ES Sedan V6-3.5L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Application and ID

Relay Box: Application and ID

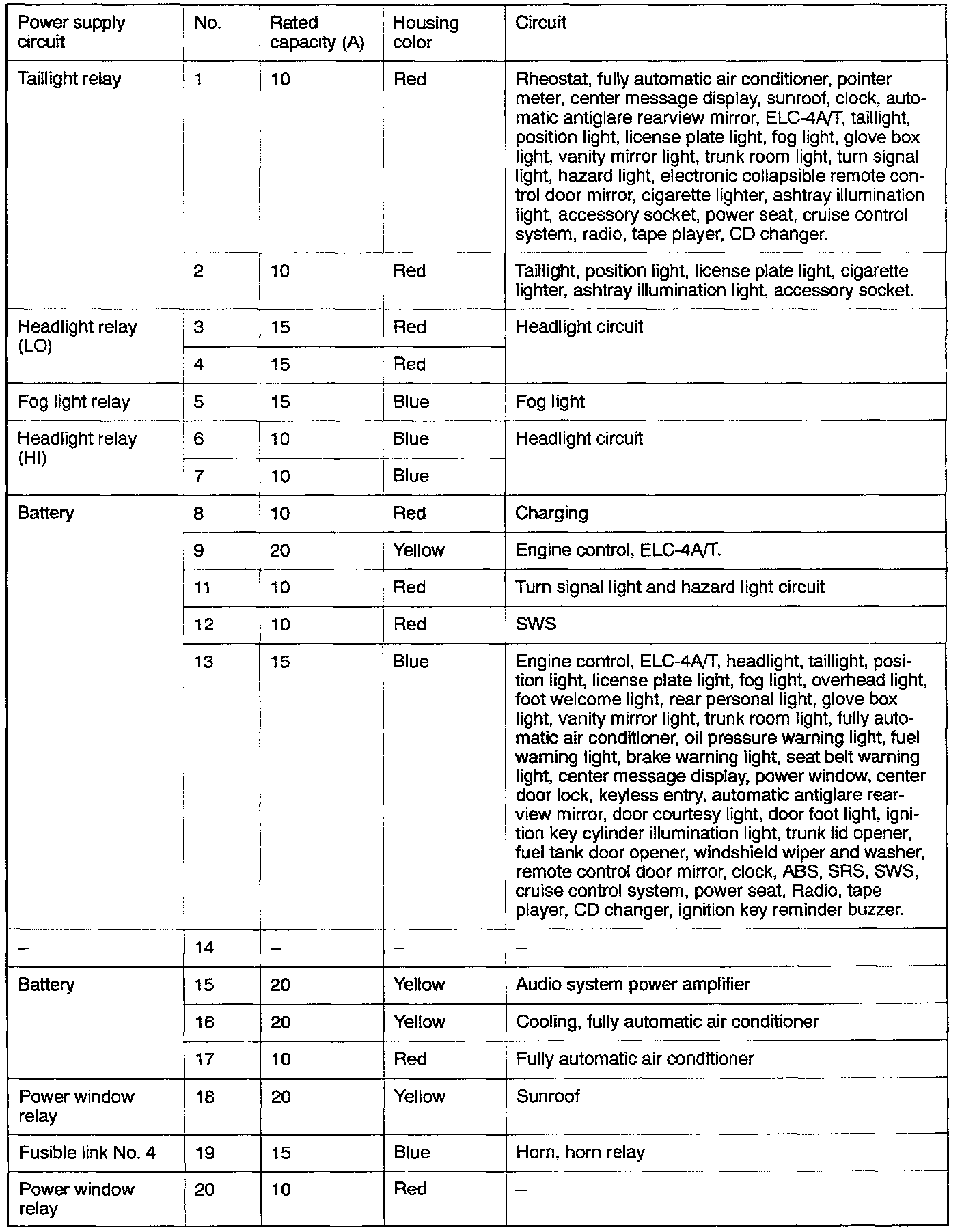

Part 1 Of 2:

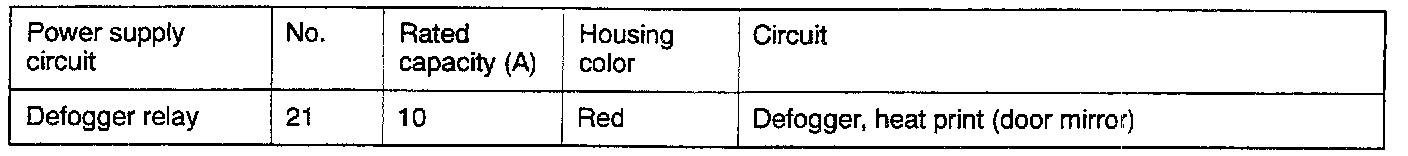

Part 2 Of 2:
