Diamante ES Sedan V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
Ground Locations
Grounding Locations Overall View:

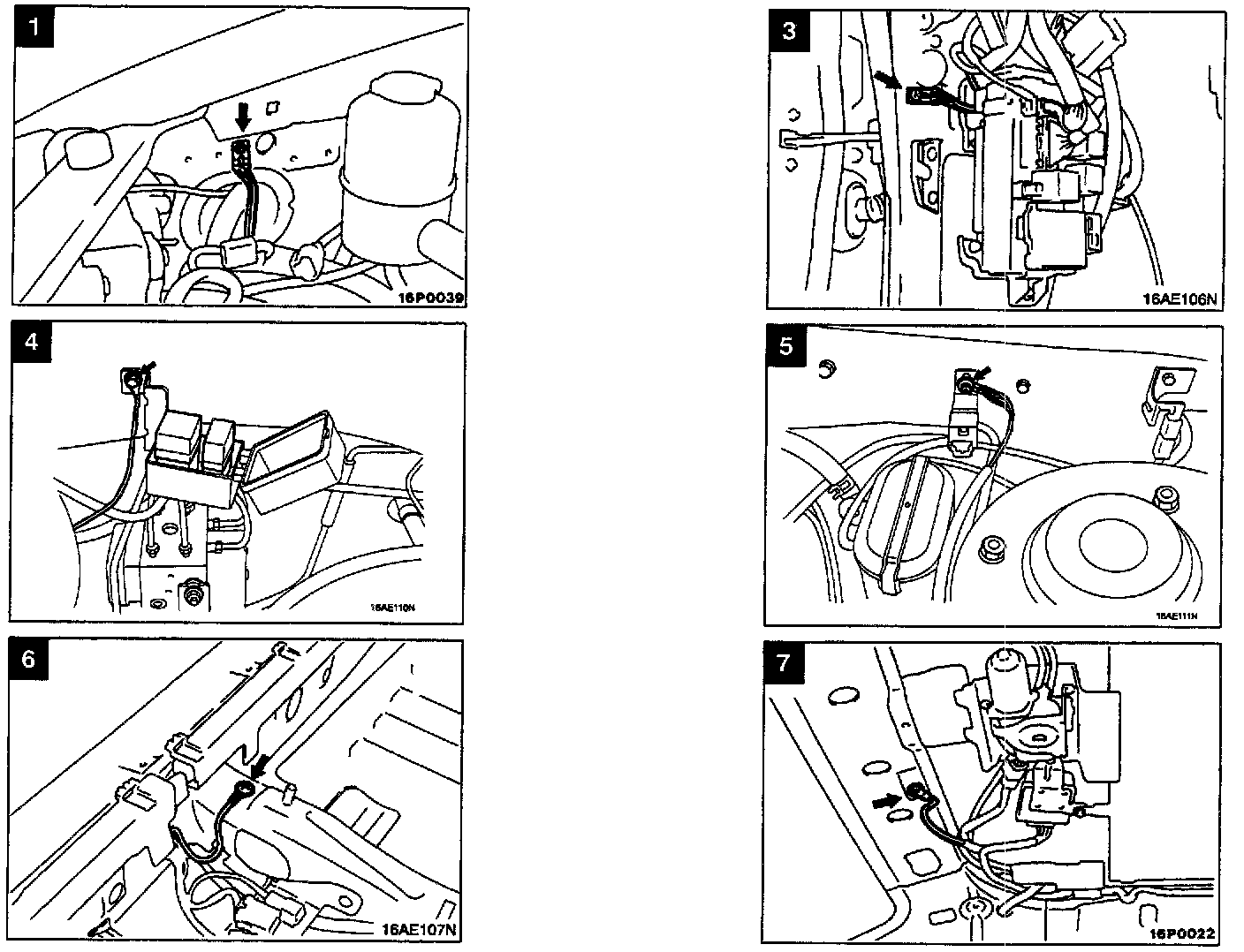

Grounding Location Views 1-7:

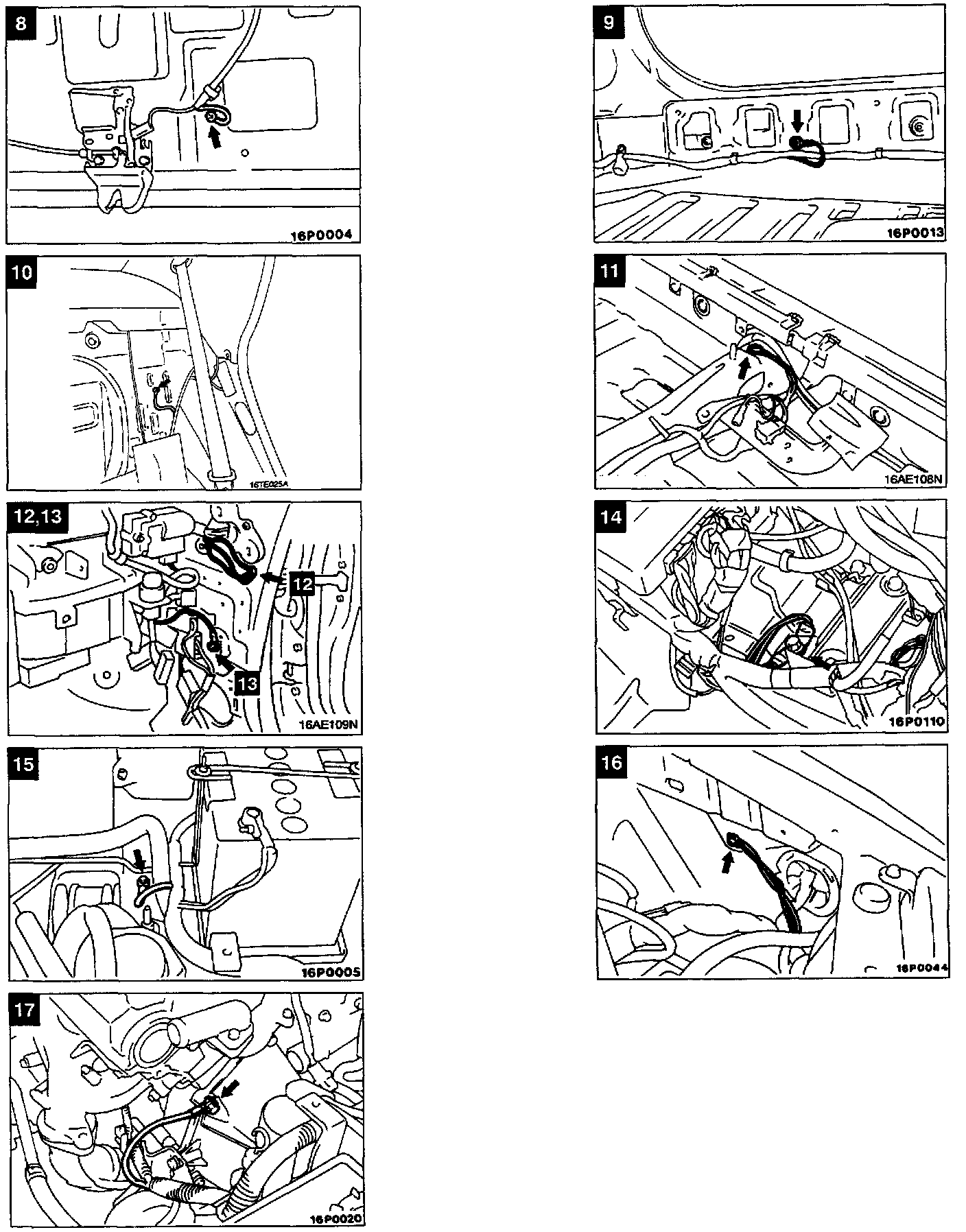

Grounding Location Views 8-17:
NOTE:
Same ground numbers are used in the circuit diagrams.
