Replacement

CAUTION: SRS Before removal of air bag module and clock spring, refer to SRS service precautions and air bag module and clock spring.

Pre-Removal and Post-Installation Operation
- Removal and Installation of battery (when replacing only left side headlight).
- Radiator Grille removal and installation.
- Splash shield.

Removal
To remove follow the steps listed in the image and note the following.

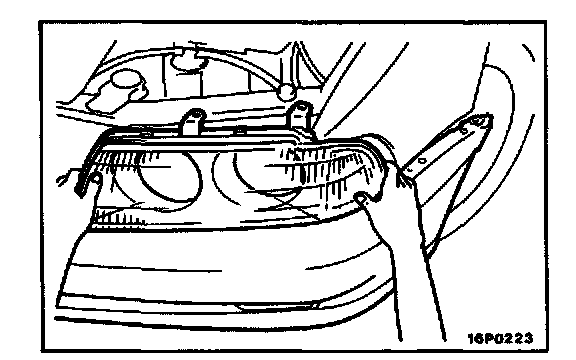

Step 4: Headlight Front Side-marker Light And Position Light Assembly Removal
Remove the bumper's tender side attachment so you can take out the headlight front turn signal light assembly. While pushing the bumper down, take out the assembly.

Installation
To install reverse the steps.
